Arista

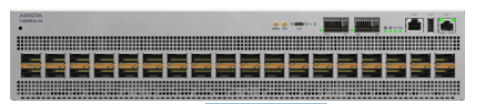

Arista DCS-7280DR3AK-36-DC-F | 7280R3A 36x400GbE QSFP-DD Switch, TunnelSec, Dual DC

Arista DCS-7280DR3AK-36-DC-F | 7280R3A 36x400GbE QSFP-DD Switch, TunnelSec, Dual DC

Authorised Arista Partner

SKU:DCS-7280DR3AK-36-DC-F

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista 7280R3A 36x400GbE QSFP-DD data centre switch router is a 2RU fixed-configuration platform built for large-scale spine and routing roles. The K model delivers large routing table capacity and TunnelSec (MACsec) encryption on all ports, with 14.4 (28.8) Tbps of throughput and 5.4 Bpps forwarding. This SKU is configured with dual DC power supplies and front-to-rear airflow.

It includes 16 GB of packet buffer, 64 GB of system memory and an eight-core x86 CPU, with PTP and SyncE precision timing using an OCXO oscillator. Hot-swap 1+1 redundant DC power supplies and N+1 redundant fans support resilient data centre deployments, and the switch runs Arista EOS with accelerated sFlow.

Features

- Large routing table capacity for demanding spine and routing roles
- TunnelSec (MACsec) line-rate encryption on all ports
- PTP and SyncE precision timing with OCXO oscillator and PPS/10M/ToD inputs
- Redundant hot-swap DC power supplies and N+1 redundant fans
- Accelerated sFlow for traffic visibility
- Runs Arista EOS

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 36 x 400GbE QSFP-DD ports
- Max 144 x 100G, 232 x 50G and 232 x 25/10G ports; 36 x 40G using QSFP+
- Throughput: 14.4 (28.8) Tbps FDX
- Packets per second: 5.4 Bpps
- Latency: from 3.8 us
- Encryption (TunnelSec/MACsec): all ports
- Packet buffer: 16 GB
- System memory: 64 GB, eight-core x86 CPU
- SSD storage: 480 GB
- 2 OSFP-LS ports, 1 USB port, 1 x 100/1000 management port, 1 x RS-232 serial (RJ-45)
- 2 x hot-swap DC power supplies (1+1 redundant), PWR-2411-DC-RED
- 4 x hot-swap fans (N+1 redundant), FAN-7012H, front-to-rear airflow
- Typical/max power draw: 643 W / 1283 W
- 2RU, 43.99 x 8.79 x 61.18 cm (WxHxD) including handles
- Weight: 24.09 kg
- Minimum EOS: 4.30.0, EOS Feature Licenses: Group 5

FAQs

Q: What power supplies does this switch use?
A: This SKU ships with two hot-swap DC power supplies in a 1+1 redundant configuration. The DC option is the PWR-2411-DC-RED (DC/DC, 2400W).

Q: Which airflow direction does the DCS-7280DR3AK-36-DC-F use?
A: It uses front-to-rear airflow with four hot-swap N+1 redundant fans (FAN-7012H).

Q: Does it support encryption?
A: Yes. As a K model it provides TunnelSec (MACsec) encryption on all ports at line rate.

Q: What port speeds are supported?
A: It has 36 QSFP-DD ports at 400GbE. With breakout it supports up to 144 x 100G, 232 x 50G or 232 x 25/10G interfaces, and 36 x 40G ports using QSFP+ optics.

Q: What software does it run and which EOS version is required?
A: It runs Arista EOS, with a minimum release of 4.30.0 and Group 5 EOS feature licences.

Q: What is the rack space requirement?
A: It is a 2RU fixed-configuration switch, measuring 43.99 x 8.79 x 61.18 cm (WxHxD) including handles.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
