Arista DCS-7280CR2K-60-DC-F | 7280R2K 60x100G QSFP Switch, Dual DC, Front-to-Rear Air
Arista DCS-7280CR2K-60-DC-F | 7280R2K 60x100G QSFP Switch, Dual DC, Front-to-Rear Air
Authorised Arista Partner
SKU:DCS-7280CR2K-60-DC-F
Stock Status: Enquire
Couldn't load pickup availability
Description
Description
The Arista DCS-7280CR2K-60-DC-F is a 2RU fixed-configuration data centre switch router with 60 x 100GbE QSFP100 ports and AlgoMatch-2 support. It delivers 12Tbps of wire-speed performance with a 24GB packet buffer, suited to spine, leaf and edge roles in large-scale data centre and service provider networks.
This variant is fitted with dual DC power supplies and front-to-rear airflow, making it a fit for DC-powered facilities and hot aisle, cold aisle rack layouts. Breakout support allows up to 240 x 10GbE or 25GbE ports, and the 7280R2K platform supports up to 2M IPv4 unicast LPM routes while running Arista EOS.
Features
Features

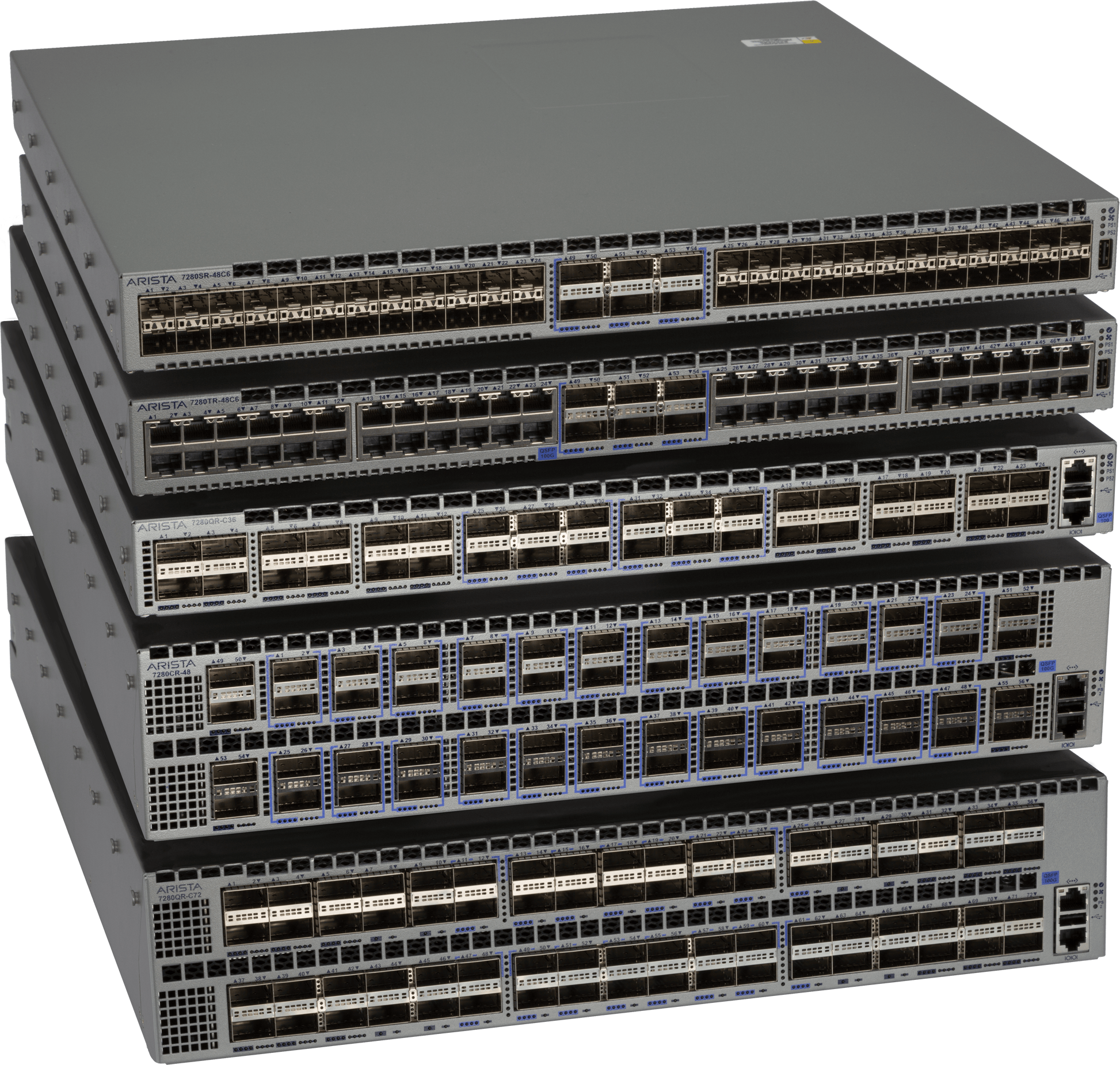

- Part of the Arista 7280R Series of fixed-configuration data centre switch routers
- AlgoMatch-2 for flexible, high-scale ACL and forwarding table lookups
- Deep buffering with wire-speed performance
- Large route scale with 2M IPv4 LPM routes
- Dual DC power supplies for DC-powered facilities
- Front-to-rear airflow for hot aisle, cold aisle racks
- Runs Arista EOS
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 60 x 100GbE QSFP100 ports
- Up to 240 x 10GbE or 25GbE ports via breakout (with FC and RS FEC)
- 12Tbps wire-speed performance
- 24GB packet buffer
- 2RU fixed-configuration form factor
- AlgoMatch-2 supported
- Up to 2M IPv4 unicast LPM routes
- 768K MAC addresses
- 768K IPv4 host routes
- 768K IPv6 unicast host routes
- Dual DC power supplies
- Front-to-rear airflow
FAQs
Q: What power supply type does the DCS-7280CR2K-60-DC-F use?
A: This variant uses dual DC power supplies, designed for DC-powered data centre and telecommunications environments.
Q: What is the airflow direction?
A: Airflow is front-to-rear, which suits standard hot aisle, cold aisle rack deployments.
Q: How many 100GbE ports does it provide?
A: It provides 60 x 100GbE QSFP100 ports in a 2RU fixed-configuration chassis.
Q: Can the ports be broken out to lower speeds?
A: Yes. Breakout supports up to 240 x 10GbE or 25GbE ports, with FC and RS FEC.
Q: What operating system does it run?
A: It runs Arista EOS.
Q: How much route scale does the 7280R2K support?
A: The 7280R2K supports up to 2M IPv4 unicast LPM routes, with 768K MAC addresses and 768K IPv4 and IPv6 unicast host routes.
