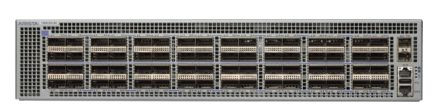

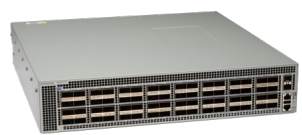

Arista DCS-7260CX3-64E-R | 7260X3 64-Port 100G QSFP Switch, 2x SFP+, Rear-to-Front, 2xAC

Arista DCS-7260CX3-64E-R | 7260X3 64-Port 100G QSFP Switch, 2x SFP+, Rear-to-Front, 2xAC

Authorised Arista Partner

SKU:DCS-7260CX3-64E-R

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista DCS-7260CX3-64E-R is a 2RU 64-port 100G QSFP data centre switch from the 7260X3 Series, with 2 additional SFP+ ports and up to 12.8 Tbps of wire-speed L2 and L3 forwarding. This 64E variant adds enhanced power and cooling capability, and ships with rear-to-front airflow and 1+1 redundant AC power supplies, making it well suited to high-density spine and leaf deployments.

Every QSFP100 port supports 40GbE and 100GbE, with breakout cables providing up to 128 x 10G, 25G or 50G connections. Hot-swappable N+1 fans and redundant power supplies, a 42MB shared packet buffer and latency from 450ns support demanding east-west traffic, and the switch runs Arista EOS with VXLAN, OpenFlow, DirectFlow and eAPI support.

Features

- Wire-speed L2 and L3 forwarding
- Flexible 10G to 100G support on all ports
- Enhanced power and cooling capability (64E model)
- VXLAN and VM Tracer
- OpenFlow, DirectFlow and eAPI
- Arista EOS network operating system
- Tool-less rails for simple installation
- Hot-swappable redundant power supplies and fans

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 64 x 40/100GbE QSFP100 ports
- 2 x SFP+ ports
- Up to 128 x 10G/25G/50G via breakout cables
- Switching capacity up to 12.8 Tbps
- Up to 4.2 billion packets per second
- Latency from 450ns
- 42MB shared dynamically allocated packet buffer
- 264K MAC entries
- 180K IPv4 routes
- 2RU form factor
- 1+1 redundant hot-swappable AC power supplies, over 93% efficient
- N+1 redundant hot-swappable fans
- Rear-to-front airflow (-R)
- Under 6W per port typical

FAQs

Q: What does the 64E in DCS-7260CX3-64E-R mean?
A: The 64E model keeps all the features of the 7260CX3-64 and adds enhanced power and cooling capability.

Q: What does the -R suffix indicate?
A: The -R suffix indicates rear-to-front airflow, so air is drawn in at the port-side rear and exhausted at the front. Confirm this matches your rack's hot and cold aisle layout.

Q: Can the QSFP100 ports run at lower speeds?
A: Yes. Each QSFP100 port supports 40GbE and 100GbE, and breakout cables provide up to 128 x 10G, 25G or 50G connections across the switch.

Q: Does this switch have redundant power and cooling?
A: Yes. It has 1+1 redundant hot-swappable AC power supplies and N+1 redundant hot-swappable fans, so components can be replaced without taking the switch offline.

Q: What switching performance does it deliver?
A: It provides up to 12.8 Tbps switching capacity and up to 4.2 billion packets per second, with latency from 450ns and a 42MB shared packet buffer.

Q: What network operating system does it run?
A: It runs Arista EOS, with support for VXLAN, OpenFlow, DirectFlow and eAPI automation.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
