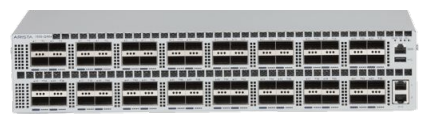

Arista DCS-7250QX-64-R | 7250QX-64 64-Port 40G QSFP+ Switch, Rear-to-Front, 2x 1100W AC
Arista DCS-7250QX-64-R | 7250QX-64 64-Port 40G QSFP+ Switch, Rear-to-Front, 2x 1100W AC
Authorised Arista Partner
SKU:DCS-7250QX-64-R
Stock Status: Enquire
Couldn't load pickup availability
Description
Description
The Arista 7250QX-64 is a 2RU 64-port 40GbE QSFP+ data centre switch that can also run up to 256x 10GbE ports at wire speed using breakout. This DCS-7250QX-64-R SKU has rear-to-front (reverse) airflow with dual 1100W AC hot-swap power supplies, suiting data centre racks that are cooled from the rear.
Built for leaf and spine deployments, it delivers 5 Tbps switching capacity and a 3840 Mpps forwarding rate with latency from 550 to 1800 ns. It runs Arista EOS and includes four hot-swap fans in an N+1 arrangement, with 1+1 redundant power supplies for resilient operation.
Features
Features
- Wire-speed 10/40GbE leaf and spine design in a compact 2RU system
- Dynamic buffer allocation across congested ports
- 1+1 hot-swappable power supplies and four N+1 hot-swap fans
- Colour-coded PSUs and fans, common to Arista 2RU platforms
- Live software patching
- DANZ Advanced Mirroring, sFlow and Advanced Event Monitoring
- Self-configure and recover from USB
- Arista Extensible Operating System (EOS)
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 64 x QSFP+ ports (64x 40GbE or up to 256x 10GbE with breakout)
- 2RU form factor
- Switching capacity: 5 Tbps
- Forwarding rate: 3840 Mpps
- Latency: 550 to 1800 ns
- Packet buffer: 12MB shared per port group (dynamically allocated)
- MAC address table: 288,000 entries
- CPU: Quad-core x86, 8GB DRAM, 4GB flash
- Management: 2 x 10/100/1000 RJ-45, 1 x RS-232 serial console, 1 x USB
- Airflow: rear-to-front (reverse)
- Power: 2 x PWR-1100AC-R 1100W AC hot-swap PSUs (1+1 redundant)
- Cooling: 4 x FAN-7002-R hot-swap fans (N+1 redundant)
- Layer 3 switch running Arista EOS
FAQs
Q: What airflow direction does the DCS-7250QX-64-R have?
A: This SKU has rear-to-front (reverse) airflow, supplied with PWR-1100AC-R power supplies and FAN-7002-R fans to match.
Q: Can the 40G QSFP+ ports run at 10G?
A: Yes. The 64 QSFP+ ports can operate as 64x 40GbE or break out to up to 256x 10GbE ports at wire speed.
Q: Is the power supply redundant?
A: Yes. It includes two 1100W AC hot-swap power supplies in a 1+1 redundant configuration, along with four hot-swap fans in an N+1 arrangement.
Q: What operating system does it run?
A: It runs Arista Extensible Operating System (EOS), with features such as live software patching, sFlow and DANZ Advanced Mirroring.
Q: How large is the switch and how is it managed?
A: It is a 2RU rack-mount switch. Management is via two 10/100/1000 RJ-45 ports, an RS-232 serial console and a USB port.
Q: Is this a Layer 3 switch?
A: Yes, the 7250QX-64 is a Layer 3 data centre switch with a 5 Tbps switching capacity and a 288,000-entry MAC address table.
