Arista

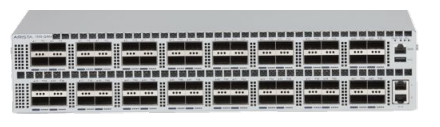

Arista DCS-7250QX-64-F | 7250QX-64 64-Port 40G QSFP+ Switch, Front-to-Rear, Dual 1100W AC

Arista DCS-7250QX-64-F | 7250QX-64 64-Port 40G QSFP+ Switch, Front-to-Rear, Dual 1100W AC

Authorised Arista Partner

SKU:DCS-7250QX-64-F

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

End of life
This item has been replaced by DCS-7260CX3-64-F.

Description

The Arista DCS-7250QX-64-F is a 2RU fixed-configuration data centre switch from the Arista 7250X Series, delivering 64 x 40GbE QSFP+ ports with 5 Tbps of switching capacity. This -F variant uses front-to-rear airflow and ships with dual 1100W AC power supplies (PWR-1100AC-F) and four FAN-7002-F fan modules, making it suited to hot-aisle and cold-aisle rack designs that need high-density 40G aggregation.

Running Arista EOS, the switch provides wire-speed unicast and multicast forwarding with latency from 550 ns to 1800 ns and a 48MB dynamic buffer. Ports can also run as 10GbE using breakout, which makes it a flexible platform for high-density 10G/40G leaf and spine deployments, big data clusters and L2/L3 multi-pathing fabrics.

Features

- Runs Arista EOS, the single image used across Arista's product portfolio
- Wire-speed unicast and multicast forwarding
- Hot-swappable power supplies and fan modules
- N+1 fan redundancy and EOS high availability
- Supports L2 and L3 multi-pathing designs
- High-density 10G/40G for data centre and big data deployments

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- 64 x 40GbE QSFP+ ports (ports can also run as 10GbE using breakout)
- 2 x 1GbE management ports, 1 x RS232 serial RJ45, 1 x USB
- 5 Tbps switching capacity
- Up to 3,840 Mpps forwarding rate
- Latency from 550 ns to 1800 ns
- 288,000 MAC address table size
- 48MB dynamic buffer allocation
- 2RU form factor, front-to-rear airflow
- 2 x PWR-1100AC-F 1100W AC power supplies included (1+1 redundant)
- 4 x FAN-7002-F fan modules included (N+1 redundant)
- Typical power consumption of about 622W

FAQs

Q: What airflow direction does the DCS-7250QX-64-F use?
A: The -F variant uses front-to-rear airflow, supplied with PWR-1100AC-F power supplies and FAN-7002-F fan modules that match this airflow direction.

Q: Are the power supplies and fans included?
A: Yes. It ships with two PWR-1100AC-F 1100W AC power supplies in a 1+1 redundant arrangement and four FAN-7002-F fan modules in an N+1 redundant arrangement.

Q: Can the QSFP+ ports run at 10GbE?
A: Yes. The 64 x 40GbE QSFP+ ports can also operate as 10GbE using breakout.

Q: What operating system does this switch run?
A: It runs Arista EOS, the single software image used across Arista's product portfolio.

Q: Are the power supplies and fan modules hot-swappable?
A: Yes. Both the power supplies and fan modules are hot-swappable, supporting high availability in production data centres.

Q: What is the switching capacity and latency?
A: The switch provides 5 Tbps of switching capacity and up to 3,840 Mpps forwarding, with latency from 550 ns to 1800 ns.
