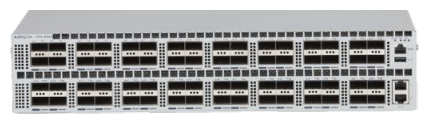

Arista DCS-7250QX-64# | 7250QX-64 64-Port 40G QSFP+ Data Centre Switch, Chassis Only

Arista DCS-7250QX-64# | 7250QX-64 64-Port 40G QSFP+ Data Centre Switch, Chassis Only

Authorised Arista Partner

SKU:DCS-7250QX-64#

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

End of life
This item has been replaced by DCS-7260CX3-64#.

Description

The Arista DCS-7250QX-64# is a fixed-configuration 2RU 10/40GbE data centre switch with 64 QSFP+ ports, delivering wire-speed layer 2/3/4 forwarding with latency from 550ns in cut-through mode. This '#' base SKU is the chassis only, with no fans or power supplies included, so you can specify the airflow direction and power supply configuration your rack requires.

The 7250QX-64 runs Arista EOS and supports up to 5.12 Tbps system throughput and 3.84 billion packets per second. Each QSFP+ port can run as 40GbE or break out to 10GbE for up to 256 x 10GbE ports, making it well suited to spline (combined leaf and spine) designs and high-density 10/40G data centre fabrics. Fans and power supplies are ordered separately, with front-to-rear and rear-to-front airflow options available.

Features

- Arista EOS with wire-speed layer 2/3/4 forwarding
- 64-way MLAG and 64-way ECMP
- VXLAN gateway
- Zero touch provisioning
- Hitless MLAG ISSU
- Data-centre-optimised airflow, with fan and PSU options for front-to-rear or rear-to-front
- Suited to spline (combined leaf and spine) designs

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- 64 x QSFP+ ports (40GbE, or up to 256 x 10GbE using breakout)
- 2RU fixed configuration chassis
- Up to 5.12 Tbps system throughput
- Up to 3.84 billion packets per second forwarding
- Latency from 550ns (cut-through)
- 48MB dynamic buffer allocation
- Dual 1GbE RJ45 management ports, RS-232 serial console, USB port
- Quad-core x86 CPU
- Fans and power supplies not included (sold separately)

FAQs

Q: Does the DCS-7250QX-64# include fans and power supplies?
A: No. The '#' base SKU is the chassis only. Fans and power supplies are ordered separately, which lets you choose the airflow direction and power configuration for your rack.

Q: Can the QSFP+ ports run at 10GbE?
A: Yes. Each of the 64 QSFP+ ports supports 40GbE, or can be broken out to 10GbE using breakout cabling or optics, for up to 256 x 10GbE ports in total.

Q: What operating system does the 7250QX-64 run?
A: It runs Arista EOS, with wire-speed layer 2/3/4 forwarding, 64-way MLAG and ECMP, a VXLAN gateway, zero touch provisioning and hitless MLAG ISSU.

Q: What is the throughput and latency of this switch?
A: The switch supports up to 5.12 Tbps system throughput and up to 3.84 billion packets per second, with cut-through latency from 550ns.

Q: What management interfaces are provided?
A: Dual 1GbE RJ45 management ports, an RS-232 serial console port and a USB port.

Q: What network designs is the 7250QX-64 suited to?
A: Its 64 high-density QSFP+ ports suit spline designs that combine leaf and spine roles in one tier, as well as high-density 10/40G leaf deployments in the data centre.
