Arista

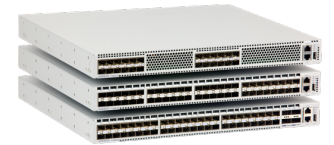

Arista DCS-7150SC-24-CLD-F | 7150SC-24 24-Port 1/10G SFP+ Switch, Front-to-Rear, 120GB SSD

Arista DCS-7150SC-24-CLD-F | 7150SC-24 24-Port 1/10G SFP+ Switch, Front-to-Rear, 120GB SSD

Authorised Arista Partner

SKU:DCS-7150SC-24-CLD-F

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista DCS-7150SC-24-CLD-F is a 1RU ultra low latency 24-port 1/10GbE SFP+ data centre switch from the Arista 7150 Series, delivering deterministic latency from 350ns. This variant ships with front-to-rear airflow, a high precision clock, a standard 120GB SSD and dual hot-swappable AC power supplies, making it well suited to financial trading, high performance computing and cloud data centre deployments.

Powered by a quad-core x86 CPU with 4GB of system memory, 8GB of flash and a 9.5MB dynamically allocated packet buffer, the switch delivers 480Gbps of throughput and 360 Mpps forwarding. It runs Arista EOS with advanced monitoring and control tools, and supports up to 4 x 40GbE ports for flexible uplink or high-density configurations.

Features

- Ultra low deterministic latency from 350ns
- 1+1 redundant and hot-swappable power supplies
- N+1 redundant and hot-swappable fans
- VMTracer for virtual machine visibility
- Self-configure and recover from USB
- User applications can run in a VM
- Arista EOS with advanced monitoring and control tools
- High precision clock for accurate time synchronisation

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- 24 x 1/10GbE SFP+ ports
- Up to 4 x 40GbE ports
- 480Gbps throughput
- 360 Mpps packet forwarding
- 350ns latency (SFP+ ports)
- Quad-core x86 CPU
- 4GB system memory
- 8GB flash storage
- 120GB SSD (standard)
- 9.5MB packet buffer with dynamic buffer allocation
- Front-to-rear airflow
- 1+1 redundant hot-swappable AC power supplies
- N+1 redundant hot-swappable fans
- Typical power draw from 3.5W per port
- High precision clock
- RoHS compliant

FAQs

Q: What port configuration does the DCS-7150SC-24-CLD-F offer?
A: It provides 24 x 1/10GbE SFP+ ports in a 1RU chassis, with support for up to 4 x 40GbE ports.

Q: What airflow direction does this model use?
A: This variant uses front-to-rear airflow, with N+1 redundant hot-swappable fans.

Q: What is the switch latency?
A: The switch delivers ultra low deterministic latency from 350ns on the SFP+ ports, suiting latency-sensitive workloads such as financial trading.

Q: Is the power supply redundant?
A: Yes. This model includes 1+1 redundant, hot-swappable AC power supplies.

Q: Does this model include an SSD?
A: Yes. A 120GB SSD is fitted as standard, alongside 8GB of flash storage and 4GB of system memory.

Q: What software does this switch run?
A: It runs Arista EOS, which provides advanced monitoring and control tools and supports running user applications in a VM.
