Arista

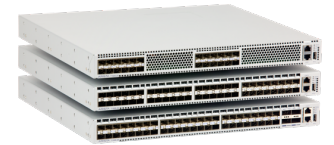

Arista DCS-7150S-24-R | 7150S-24 Ultra-Low-Latency Switch, 24x 1/10G SFP+, Rear-to-Front, 2x AC PSU

Arista DCS-7150S-24-R | 7150S-24 Ultra-Low-Latency Switch, 24x 1/10G SFP+, Rear-to-Front, 2x AC PSU

Authorised Arista Partner

SKU:DCS-7150S-24-R

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista DCS-7150S-24-R is a 1RU ultra-low-latency data centre switch with 24 SFP+ ports, each running at 1GbE or 10GbE. This variant uses rear-to-front airflow and ships with two hot-swappable AC power supplies, making it well suited to hot-aisle/cold-aisle rack layouts where the port side faces the hot aisle. Latency is approximately 350ns, with 480 Gbps switching capacity and a 360 Mpps forwarding rate.

The switch runs Arista EOS and supports Layer 2 and Layer 3 features including BGP, IS-IS, IGMP, ACLs and DHCP, with 32-way ECMP routing. Redundant 1+1 power supplies and N+1 fans support resilient top-of-rack and low-latency trading or high-performance computing deployments.

Features

- Ultra-low-latency 1/10GbE SFP+ switching
- 1+1 redundant hot-swappable power supplies
- N+1 redundant hot-swappable fans
- Rear-to-front airflow for hot-aisle port-side deployments
- 32-way ECMP routing
- Layer 2 and Layer 3 support including BGP, IS-IS, IGMP, ACL and DHCP
- Runs Arista EOS with support for user applications in a VM

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- 24 x 1/10GbE SFP+ ports
- Switching capacity: 480 Gbps
- Forwarding rate: 360 Mpps
- Latency: approx. 350ns
- MAC address table: up to 64,000 entries
- CPU: dual-core x86, 4GB DRAM, 2GB flash
- Power: 2 x hot-swappable AC PSUs (1+1 redundant)
- Cooling: 4 x hot-swappable fans (N+1 redundant), rear-to-front airflow
- Power draw: typical from 3.5W per port, maximum 334W
- Form factor: 1RU rack-mountable

FAQs

Q: What does the -R suffix on the DCS-7150S-24-R mean?
A: The -R variant has rear-to-front airflow and includes two AC power supplies. Front-to-rear airflow models are available as separate SKUs.

Q: Can the SFP+ ports run at both 1G and 10G?
A: Yes. All 24 SFP+ ports support 1GbE and 10GbE operation, depending on the optic or cable installed.

Q: Are the power supplies and fans redundant?
A: Yes. The two AC power supplies operate in a 1+1 redundant configuration and the four fans are N+1 redundant. Both are hot-swappable.

Q: What is the switch latency?
A: Latency is approximately 350ns, which suits low-latency environments such as financial trading and high-performance computing.

Q: Which operating system does it run?
A: The switch runs Arista EOS, which supports Layer 2 and Layer 3 features and allows user applications to run in a VM.

Q: What size is the switch and how is it mounted?
A: It is a 1RU rack-mountable switch designed for standard data centre racks.
