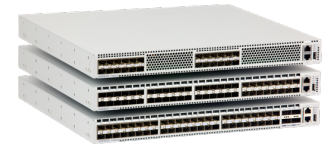

Arista DCS-7150S-24-F | 7150S-24 24-Port 10G SFP+ Switch, Front-to-Rear, 2x AC PSU

Arista DCS-7150S-24-F | 7150S-24 24-Port 10G SFP+ Switch, Front-to-Rear, 2x AC PSU

Authorised Arista Partner

SKU:DCS-7150S-24-F

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista DCS-7150S-24-F is a 1RU ultra-low-latency Layer 2/3 data centre switch with 24 SFP+ ports that run at 1GbE or 10GbE. This SKU ships with front-to-rear airflow and 2x redundant AC power supplies, making it a fit for hot-aisle and cold-aisle rack deployments where airflow direction matters.

Built on Arista EOS, the 7150S-24 delivers 480 Gbps of switching capacity and forwarding of up to 360 Mpps, with latency as low as 350 ns. Hot-swappable 1+1 power supplies and N+1 fans support high-availability top-of-rack, trading and low-latency network designs. It supports 10GBASE-CR, SR, SRL, LR and LRL optics as well as 1GbE SX, LX and TX modules.

Features

- Ultra-low-latency cut-through switching for 1GbE and 10GbE
- Runs Arista EOS
- sFlow (RFC3176) support
- Hot-swappable redundant power supplies and fans
- Typical power draw from 3.5W per port
- Front-to-rear airflow suits standard cold-aisle to hot-aisle rack layouts

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- 24 x 1/10GbE SFP+ ports
- Switching capacity: 480 Gbps
- Forwarding rate: up to 360 Mpps
- Latency: as low as 350 ns
- MAC address table: 64,000 entries
- CPU and memory: dual-core x86 CPU, 4GB DRAM
- Power: 1+1 redundant hot-swappable AC power supplies, 2x AC PSU included, IEC C13 inlet
- Cooling: N+1 redundant hot-swappable fans, front-to-rear airflow
- Form factor: 1RU
- Optics support: 10GBASE-CR/SR/SRL/LR/LRL and 1GbE SX/LX/TX

FAQs

Q: What port types does the DCS-7150S-24-F provide?
A: It has 24 SFP+ ports, each running at 1GbE or 10GbE depending on the optic or cable installed.

Q: Which airflow direction does this model use?
A: The -F variant uses front-to-rear airflow. The 7150S is also available in a rear-to-front airflow option, which is a separate SKU.

Q: Does it include redundant power?
A: Yes. It ships with 2x hot-swappable AC power supplies in a 1+1 redundant configuration, with IEC C13 inlets.

Q: Which optics and transceivers can I use?
A: It supports 10GBASE-CR, SR, SRL, LR and LRL optics and cables, as well as 1GbE SX, LX and TX modules in the SFP+ ports.

Q: What operating system does the 7150S-24 run?
A: It runs Arista EOS, the same network operating system used across Arista's data centre switching range.

Q: What is the switch's latency and capacity?
A: It offers latency as low as 350 ns, 480 Gbps of switching capacity and forwarding of up to 360 Mpps.
