Arista DCS-7150S-24# | 7150S 24-Port 1/10G SFP+ Switch, Chassis Only, No Fans/PSU
Arista DCS-7150S-24# | 7150S 24-Port 1/10G SFP+ Switch, Chassis Only, No Fans/PSU
Authorised Arista Partner
SKU:DCS-7150S-24#
Stock Status: Enquire
Couldn't load pickup availability
Description
Description

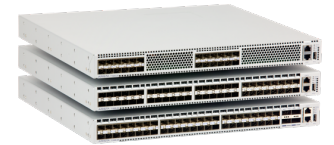

The Arista DCS-7150S-24# is an ultra low latency 24-port 1/10GbE SFP+ Layer 2/3 data-centre switch in a 1RU form factor. It forwards at around 350ns port to port, with 480 Gbps switching capacity and forwarding up to 360 Mpps, making it well suited to latency-sensitive leaf, trading and high-performance computing deployments. This SKU is the chassis only, with no fans and no power supplies included, so fans and power supplies must be selected and ordered separately.
The 7150S runs the modular Linux-based Arista EOS, with a dual-core x86 CPU, 9.5MB of packet buffer with dynamic buffer allocation, and support for up to 64K MAC address entries and 4096 VLANs. Advanced visibility tools such as LANZ microburst analysis, IEEE 1588 PTP and DANZ mirroring and TAP aggregation, along with CloudVision support, allow it to fit into automated, software-defined data-centre networks.
Features
Features
- Same low latency for L2 and L3, with low jitter for unicast and multicast
- Cut-through mode at 100Mb and 1GbE speeds for legacy connections
- LANZ microburst analysis
- IEEE 1588 PTP
- Ultra low latency NAT and MNAT
- DANZ advanced mirroring and TAP aggregation
- sFlow
- Zero Touch Provisioning (ZTP)
- CloudVision support
- Modular Linux-based Arista EOS
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 24 x 1/10GbE SFP+ ports
- Ultra low latency from 350ns
- Switching capacity 480 Gbps
- Forwarding rate up to 360 Mpps
- Dual-core x86 CPU
- 1 x 10/100/1000 management port, 1 x RS-232 serial (RJ45), 1 x USB
- 9.5MB packet buffer with dynamic buffer allocation
- Up to 64K MAC address entries
- 4096 VLANs
- 1RU form factor
- Chassis only: no fans and no PSU included (requires fans and power supplies)
FAQs
Q: Does the DCS-7150S-24# include fans and power supplies?
A: No. This SKU is the chassis only, with no fans and no power supplies included. Fans and power supplies must be ordered separately to make the switch operational.
Q: What port types does the 7150S-24 provide?
A: It provides 24 x 1/10GbE SFP+ ports, plus a 10/100/1000 management port, an RS-232 serial console port (RJ45) and a USB port.
Q: What is the latency of the Arista 7150S-24?
A: Port-to-port latency starts from around 350ns, and the switch delivers the same low latency for both Layer 2 and Layer 3 forwarding.
Q: What switching performance does this switch offer?
A: It delivers 480 Gbps of switching capacity and forwarding rates up to 360 Mpps in a 1RU form factor.
Q: Which operating system and management tools does it support?
A: It runs the modular Linux-based Arista EOS and supports Zero Touch Provisioning, sFlow, LANZ microburst analysis, IEEE 1588 PTP and CloudVision.
Q: What is the form factor of the 7150S-24?
A: It is a 1RU rack-mount switch designed for data-centre deployment.
