Arista DCS-7132LB-48Y4C-F | 7132LB 48-Port 25G SFP28 FPGA Switch, VU9P-3, 2xAC, Front-to-Rear
Arista DCS-7132LB-48Y4C-F | 7132LB 48-Port 25G SFP28 FPGA Switch, VU9P-3, 2xAC, Front-to-Rear
Authorised Arista Partner
SKU:DCS-7132LB-48Y4C-F
Stock Status: Enquire
Couldn't load pickup availability
Description
Description

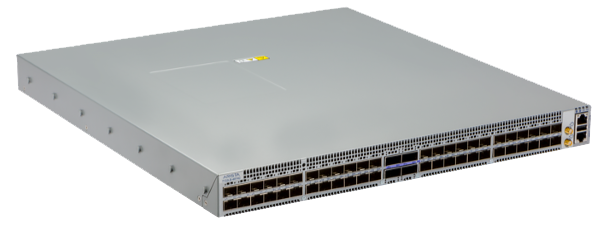

The Arista DCS-7132LB-48Y4C-F is a 1RU Layer 2 Application+ FPGA switch with 48 SFP28 ports, each configurable as 10G or 25G, plus 4 QSFP28 ports. A Xilinx Virtex UltraScale+ VU9P-3 FPGA is connected directly to the front panel ports, delivering switching latency from 89ns with switchapp. It is built for ultra-low latency 10G/25G applications such as low latency mux and high precision timestamping.
This SKU ships with dual redundant hot-swappable AC power supplies and front-to-rear airflow fans, suiting standard hot-aisle and cold-aisle rack layouts. Three SMA ports support PPS IN/OUT and GPS antenna input for timing deployments. The switch runs Arista EOS and supports the Arista FPGA Development Kit for custom application development.
Features
Features
- Ultra low latency Layer 2 and Layer 3 switching
- Custom application FPGA with Arista FPGA Development Kit support
- Supports Arista applications such as Low Latency Mux and High Precision Timestamping
- Runs Arista Extensible Operating System (EOS)
- Tool-less rails for simple installation
- High-density, compact 1RU form factor
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 48 x SFP28 ports (each configurable as 10G or 25G)
- 4 x QSFP28 ports
- Xilinx Virtex UltraScale+ VU9P-3 FPGA
- 1.6 (3.2) Tbps (FDX) front panel I/O
- Switching latency from 89ns with switchapp
- 3 x SMA ports for PPS IN/OUT and GPS antenna input
- Dual redundant hot-swappable AC PSUs (PWR-1011-AC)
- Dual redundant hot-swappable fans, front-to-rear airflow
- Power draw 367 W typical / 550 W maximum
- Dimensions 48.3 x 4.4 x 47.3 cm (1RU), weight 9.8 kg
- High performance x86 control-plane
FAQs
Q: What FPGA does the DCS-7132LB-48Y4C-F use?
A: It uses a Xilinx Virtex UltraScale+ VU9P-3 FPGA connected directly to the front panel ports.
Q: Can the SFP28 ports run at 10G as well as 25G?
A: Yes. Each of the 48 SFP28 ports can be configured as either 10G or 25G.
Q: What airflow and power configuration does this model have?
A: This SKU has front-to-rear airflow with dual redundant hot-swappable fans and dual redundant hot-swappable AC power supplies (PWR-1011-AC).
Q: What applications is this switch designed for?
A: It targets ultra-low latency 10G/25G applications such as low latency mux and high precision timestamping, using Arista applications or custom FPGA applications.
Q: Does it support precision timing inputs?
A: Yes. It has 3 SMA ports for PPS IN/OUT and GPS antenna input.
Q: How much power does it draw?
A: Typical power draw is 367 W, with a maximum of 550 W.
