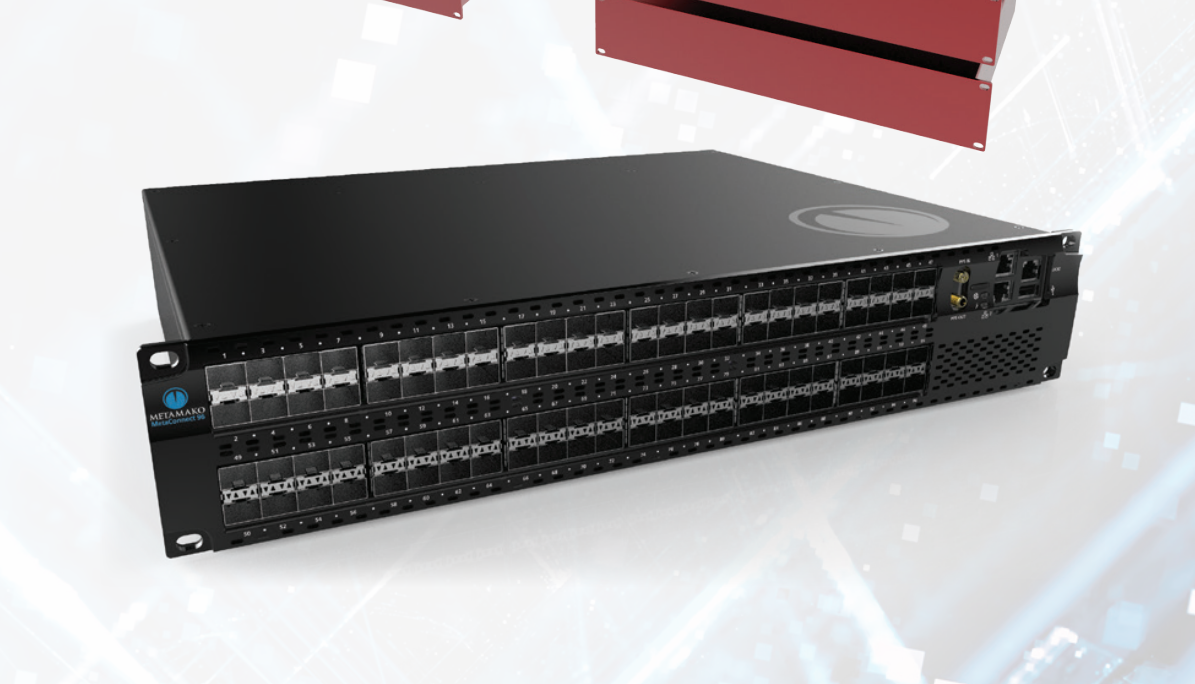

• Arista dcs-7130-48ls-f black network switch with 48 sfp+ ports and sleek professional design for high-speed fpga networking
1 1

Arista

Arista DCS-7130-48LS-F | 7130LS 48-Port SFP+ Layer 1+ FPGA Switch, 5ns

Arista DCS-7130-48LS-F | 7130LS 48-Port SFP+ Layer 1+ FPGA Switch, 5ns

DCS-7130-48LS-F

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Arista 7130LS Series Layer 1+ FPGA Switch delivers ultra-low latency 5 ns port-to-port switching across 48 x SFP+ ports, making it the platform of choice for high-frequency trading, co-location, and latency-sensitive financial infrastructure. At its core is a Xilinx UltraScale VU7P-2 FPGA with unrestricted developer access, enabling deployment of Arista's own FPGA applications such as MetaMux as well as fully custom third-party workloads — all within a single 1U rack-mount chassis.

The DCS-7130-48LS-F combines Layer 1+ switching with an embedded x8664 server and a built-in FPGA application framework, simplifying packaging and deployment of FPGA-based network applications via Arista development toolkits and open APIs. Dual hot-swap AC power supplies (100–240V) and front-to-rear airflow ensure full data centre compatibility and redundancy. Visit iptrading.com.au to secure your order — enterprise-grade hardware with expert support.

Features

- Ultra-low latency Layer 1+ switching at 5 ns port-to-port — ideal for HFT and co-location
- Programmable Xilinx UltraScale VU7P-2 FPGA with full, unrestricted developer access
- Native support for Arista FPGA applications including MetaMux, plus third-party app deployment
- Built-in FPGA application framework simplifies packaging, deployment, and lifecycle management
- Arista development toolkits and APIs provide complete access to all FPGA facilities
- Integrated x8664 embedded server combines switching and onboard compute in one platform
- Dual redundant AC power supplies ensure high availability in production data centre environments
- Front-to-rear airflow aligns with standard data centre hot-aisle/cold-aisle cooling architectures
- High-density 48-port SFP+ design minimises rack space while maximising port density

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 48 x SFP+ ports
- 2 x 10/100/1000BASE-T management ports
- FPGA: Xilinx UltraScale VU7P-2
- Layer 1+ switching latency: 5 ns port-to-port
- Embedded x8664 server for onboard compute
- Power supply: 2 x AC (PWR-500-AC, 100–240V AC, dual redundant)
- Airflow: Front-to-rear
- Form factor: 1U rack-mount

FAQs

Q: What makes the Arista DCS-7130-48LS-F different from a standard 10G data centre switch?
A: Unlike a conventional managed switch, the 7130-48LS-F is a Layer 1+ FPGA switch combining hardware-level 5 ns port-to-port latency with a programmable Xilinx UltraScale VU7P-2 FPGA and an embedded x8664 server. This allows it to perform switching, signal processing, and onboard compute simultaneously — capabilities standard switches cannot offer.

Q: What use cases is the 7130LS Series designed for?
A: The 7130LS Series is purpose-built for ultra-low latency environments such as high-frequency trading (HFT), algorithmic trading infrastructure, financial co-location facilities, and any application where deterministic sub-10 ns switching latency is critical.

Q: Can I develop and deploy custom FPGA applications on this switch?
A: Yes. Arista provides unrestricted developer access to the Xilinx UltraScale VU7P-2 FPGA along with development toolkits and APIs. The built-in application framework supports both Arista-native apps (like MetaMux) and fully custom third-party FPGA applications.

Q: Does the DCS-7130-48LS-F support redundant power?
A: Yes. The unit ships with dual AC power supplies (PWR-500-AC, 100–240V AC), providing power redundancy essential for always-on data centre and trading environments.

Q: Is the airflow direction suitable for standard data centre rack deployments?
A: Yes. The DCS-7130-48LS-F uses front-to-rear (cold-aisle intake, hot-aisle exhaust) airflow, which is compatible with standard data centre hot-aisle/cold-aisle containment architectures.

Q: Can I purchase the Arista DCS-7130-48LS-F in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller stocking Arista 7130 Series platforms. Visit the site or contact the team directly for pricing, availability, and expert pre-sales support tailored to your deployment requirements.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
