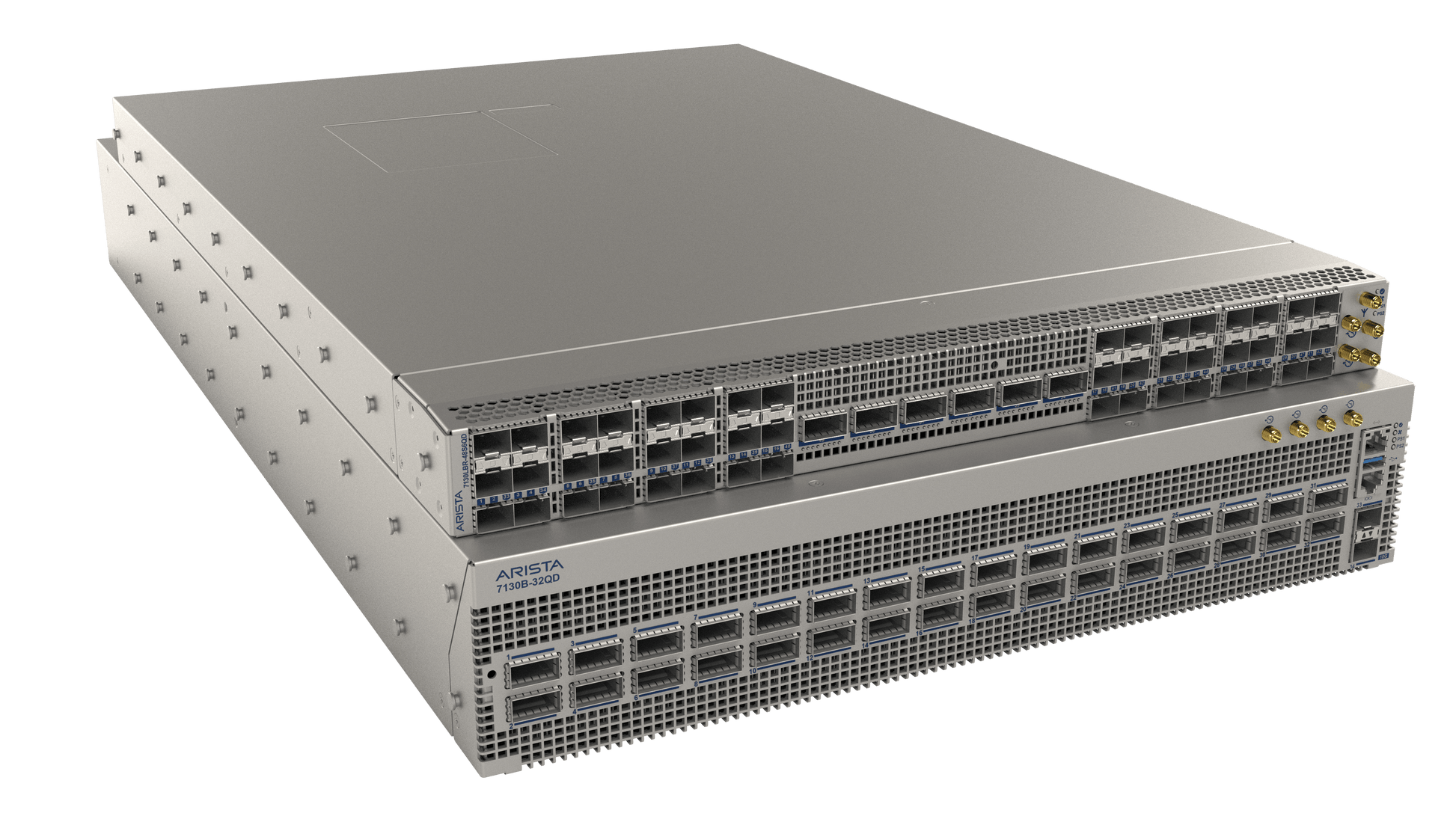

Arista DCS-7130-48LB# | 7130L 48-Port SFP+ Layer 1+ FPGA Switch, VU9P-3, OCXO

Arista DCS-7130-48LB# | 7130L 48-Port SFP+ Layer 1+ FPGA Switch, VU9P-3, OCXO

Authorised Arista Partner

SKU:DCS-7130-48LB#

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

End of life
This product is end of life. Contact us for alternatives.

Description

The 7130L 48LB is a 1RU Layer 1+ FPGA switch with 48 SFP+ ports (100M, 1GbE and 10GbE), built for ultra-low-latency trading, tapping, aggregation and multiplexing. This 48LB configuration includes a Xilinx Virtex UltraScale+ VU9P-3 FPGA and an OCXO clock, with Layer 1 latency of 5 ns and deterministic forwarding with less than 100 ps jitter. The '#' SKU ships without the PSU and fan kit, which must be ordered separately.

An onboard quad-core x86 server with 8GB RAM and a 64GB SSD runs Arista applications such as MetaMux and MultiAccess alongside custom FPGA logic, with 32GB of DDR4 ECC DRAM available to the FPGA for deep buffering. Dual hot-swap PSUs in a 1+1 redundant arrangement and hot-swappable fan trays support continuous operation in latency-critical environments.

Features

- Layer 1+ switching with bit-for-bit forwarding for any protocol
- Integrated FPGA for custom applications, plus Arista applications such as MetaMux and MultiAccess
- Deterministic ultra-low latency with less than 100 ps jitter
- Same latency for 1:N port mirroring (regenerative tapping)
- Layer 1+ packet statistics and sub-nanosecond precise time stamping
- 32GB deep buffering
- Dual redundant hot-swappable PSUs and fans

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 48 x SFP+ ports (100M/1GbE/10GbE)
- 1 x Xilinx Virtex UltraScale+ VU9P-3 FPGA (speed grade 3), 60 FPGA ports
- Layer 1 latency: 5 ns; MetaMux latency: 39 ns; MultiAccess latency: 55 ns
- Throughput: 100M-11.3Gbps; non-blocking
- FPGA off-chip RAM: 4 x 8GB DDR4 2400 ECC (32GB DRAM)
- OCXO clock; 1 x PPS input and 1 x PPS output (5V TTL)
- Quad-core x86 CPU, 8GB system RAM, 64GB on-board SSD
- 2 x internal 10G ports; 2 x 100/1000 management ports; 1 x USB; 1 x RS-232 (RJ-45)
- 1RU, 17.6 x 1.7 x 14.9 in (44.8 x 4.3 x 37.9 cm), approx. 9kg
- Max power draw 190W; 2 hot-swap PSUs (1+1 redundant); hot-swappable fan trays (FAN-7130-1U); reversible airflow option
- PSU/Fan kit sold separately for the '#' SKU

FAQs

Q: Does the DCS-7130-48LB# include power supplies and fans?
A: No. The '#' SKU ships without the PSU and fan kit, which is sold separately. The chassis supports two hot-swap PSUs in a 1+1 redundant configuration and hot-swappable fan trays (FAN-7130-1U).

Q: What FPGA is fitted to this switch?
A: It includes one Xilinx Virtex UltraScale+ VU9P-3 FPGA (speed grade 3) with 60 FPGA ports and 32GB of DDR4 2400 ECC off-chip RAM.

Q: What latency can I expect?
A: Layer 1 latency is 5 ns, MetaMux latency is 39 ns and MultiAccess latency is 55 ns, with less than 100 ps jitter.

Q: Which port speeds are supported?
A: The 48 SFP+ ports support 100M, 1GbE and 10GbE, with non-blocking throughput.

Q: Does it support precise timing?
A: Yes. It has an OCXO clock plus 1 x PPS input and 1 x PPS output (5V TTL), and provides sub-nanosecond precise time stamping.

Q: What is the onboard server used for?
A: The quad-core x86 CPU with 8GB RAM and a 64GB SSD hosts management and runs Arista applications such as MetaMux and MultiAccess alongside custom FPGA applications.
