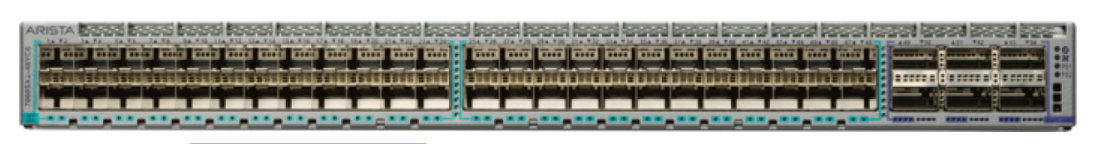

Arista DCS-7060SX2-48YC6# | 7060SX2-48YC6 48x25G SFP Switch, 6x100G QSFP, Configurable Fans/PSU

Arista DCS-7060SX2-48YC6# | 7060SX2-48YC6 48x25G SFP Switch, 6x100G QSFP, Configurable Fans/PSU

Authorised Arista Partner

SKU:DCS-7060SX2-48YC6#

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista DCS-7060SX2-48YC6# is a 1RU fixed-configuration 25GbE data centre switch with 48 SFP ports and 6 x 100GbE QSFP uplinks, built for leaf and spine deployments. It delivers 3.6Tbps of Layer 2 and Layer 3 wire-speed throughput with latency as low as 450ns in cut-through mode. This build-to-order '#' SKU has the fans and power supplies configured separately, so you can select the airflow direction and PSU option to suit your rack, and it ships with 2 x C13-C14 power cords.

The 48 SFP ports support 1G, 10G and 25G operation, and the 6 QSFP100 ports support 40G and 100G with breakout to 4x10G, 4x25G or 2x50G. A 22MB dynamically allocated shared packet buffer and Arista EOS with CloudVision support make it a strong fit for high-density 25G server access and 100G spine uplinks.

Features

- Feature-rich Layer 2 and Layer 3 wire-speed forwarding
- IEEE 25G standards-based support with cut-through forwarding
- Arista EOS with CloudVision support
- Zero Touch Provisioning (ZTP)
- LANZ for microburst detection
- DANZ Advanced Mirroring for visibility
- Redundant, hot-swappable power supplies and fans with selectable airflow direction

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 48 x 1/10/25GbE SFP ports (configurable in groups of 4 for 25G or 10G/1G)
- 6 x 40/100GbE QSFP100 ports (breakout to 4x10G, 4x25G, 2x50G supported)
- 1RU fixed configuration
- 3.6Tbps overall throughput with all ports active
- Latency as low as 450ns in cut-through mode
- 22MB dynamically allocated shared packet buffer
- Configurable fans and PSUs (PWR-500AC family compatible)
- Ships with 2 x C13-C14 power cords
- Management: 10/100/1000 Ethernet, RS-232 serial console, USB
- Runs Arista EOS

FAQs

Q: Does this switch include fans and power supplies?
A: The '#' SKU is the build-to-order version where the fans and power supplies are configured separately, allowing you to select the airflow direction and PSU option. It ships with 2 x C13-C14 power cords.

Q: What port speeds does the DCS-7060SX2-48YC6# support?
A: The 48 SFP ports support 1G, 10G and 25G, and the 6 QSFP100 ports support 40G and 100G, with breakout options of 4x10G, 4x25G and 2x50G.

Q: What is the switching throughput and latency?
A: The switch delivers 3.6Tbps of overall throughput with all ports active and latency as low as 450ns in cut-through mode.

Q: Is it suitable for leaf and spine deployments?
A: Yes. The 25G SFP ports suit server access, while the 100G QSFP uplinks suit leaf-to-spine connections in a data centre fabric.

Q: What operating system does it run?
A: It runs Arista EOS and supports CloudVision, Zero Touch Provisioning, LANZ microburst detection and DANZ advanced mirroring.

Q: How is the switch managed locally?
A: It provides a 10/100/1000 Ethernet management port, an RS-232 serial console port and a USB port.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
