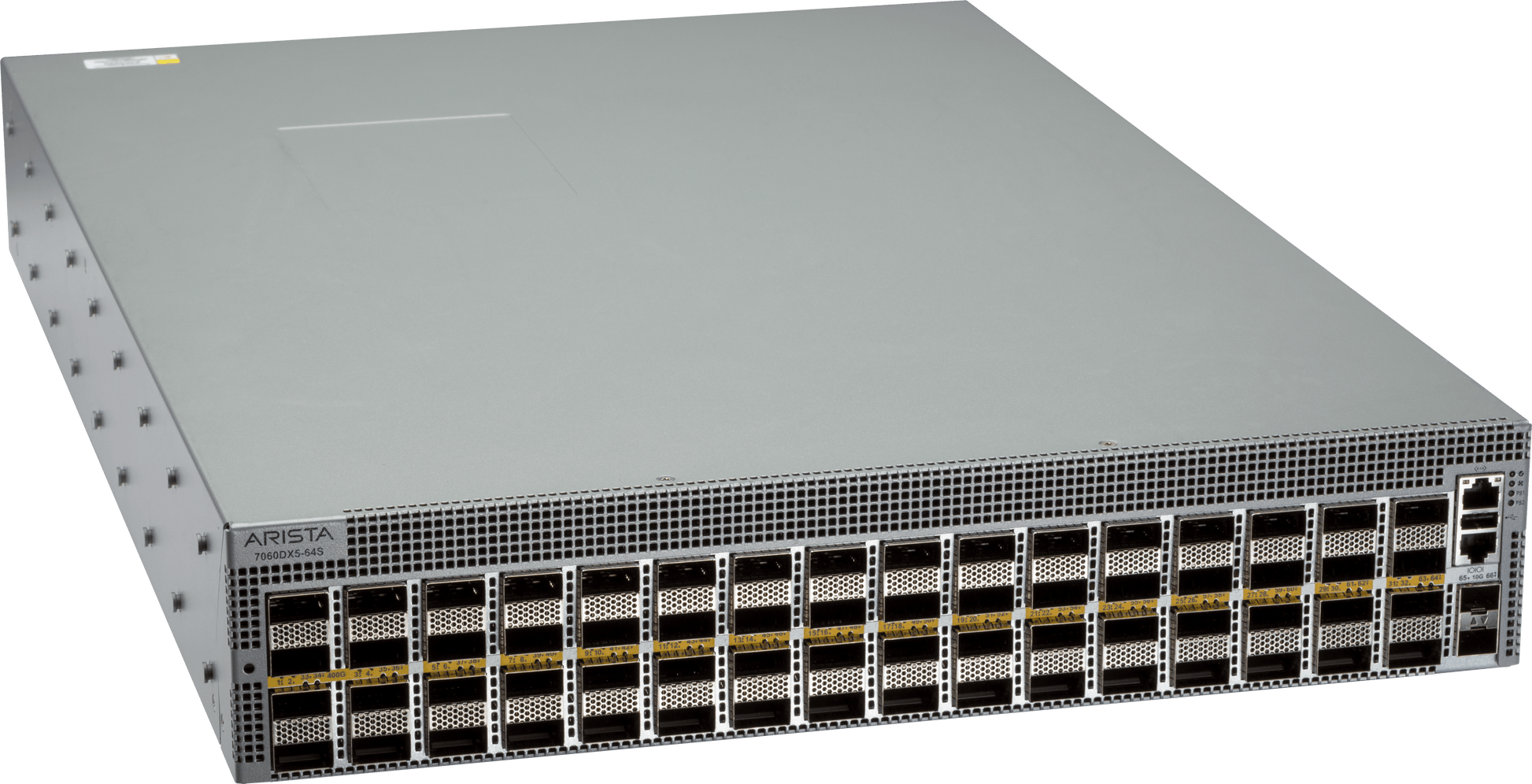

Arista DCS-7060DX5-64E-F | 7060X5 32-Port 800G QSFP-DD Switch, Front-to-Rear Air, 2xAC 2400W

Arista DCS-7060DX5-64E-F | 7060X5 32-Port 800G QSFP-DD Switch, Front-to-Rear Air, 2xAC 2400W

Authorised Arista Partner

SKU:DCS-7060DX5-64E-F

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The 7060DX5-64E is a 1RU 800G QSFP-DD data centre switch from Arista's 7060X5 series, built for hyperscale cloud, AI/ML and I/O-intensive leaf and spine deployments. It provides 32 QSFP-DD 800G ports, which can break out to a maximum of 64 x 400GbE, and delivers up to 25.6 Tbps of wire-speed Layer 2 and Layer 3 forwarding. This SKU is configured with front-to-rear airflow and dual 2400W AC power supplies.

The switch supports port speeds of 400G, 200G, 100G, 50G, 25G and 10G using industry-standard 800G and 400G optics and cables, which simplifies migration to 400G fabrics. It runs Arista EOS, with optional Enhanced L3 and Monitoring & Automation licences available for extended routing and telemetry capabilities.

Features

- Wire-speed L2 and L3 forwarding
- Optimised for hyperscale cloud, AI/ML and I/O-intensive leaf and spine deployments
- Supports industry-standard 800G/400G optics and cables for easier migration to 400G
- Layer 2 features include RSTP, MSTP, RPVST+, LACP and MLAG
- Runs Arista EOS with optional Enhanced L3 and Monitoring & Automation licences

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- 32 x 800G QSFP-DD ports (breakout to a maximum of 64 x 400GbE or 256 x 100G)
- 2 x SFP+ management/data ports
- Up to 25.6 Tbps throughput
- Up to 10.6 billion packets per second
- Latency from 825 ns (400G)
- 114MB packet buffer
- 64GB system memory
- 1RU form factor, 48.3 x 4.4 x 56.6 cm, 14.6 kg
- Front-to-rear airflow, 2 x AC 2400W power supplies
- Port speeds: 400G, 200G, 100G, 50G, 25G and 10G
- 800K IPv4 LPM routes, 500K IPv6 LPM routes
- 4096 VLANs; MLAG; LACP with 64 ports/channel, 128 groups per system

FAQs

Q: What port configuration does the DCS-7060DX5-64E-F offer?
A: It provides 32 x 800G QSFP-DD ports, which can break out to a maximum of 64 x 400GbE or 256 x 100G, plus 2 x SFP+ management/data ports.

Q: What airflow and power configuration does this SKU use?
A: This model uses front-to-rear airflow and ships with dual 2400W AC power supplies.

Q: What is the switching capacity of the 7060DX5-64E?
A: It delivers up to 25.6 Tbps of throughput and up to 10.6 billion packets per second, with latency from 825 ns at 400G.

Q: Which port speeds are supported?
A: The switch supports 400G, 200G, 100G, 50G, 25G and 10G port speeds using industry-standard 800G and 400G optics and cables.

Q: What operating system does it run, and are extra licences needed?
A: It runs Arista EOS. Enhanced L3 and Monitoring & Automation licences are available as optional additions.

Q: What type of deployment is this switch designed for?
A: It is designed for hyperscale cloud, AI/ML and I/O-intensive leaf and spine deployments in a 1RU form factor.
