Arista DCS-7060CX5-56D8-R | 7060X5 56x 100GbE, Rear-to-Front, 2xAC, 8x 400GbE QSFP-DD Switch

Arista DCS-7060CX5-56D8-R | 7060X5 56x 100GbE, Rear-to-Front, 2xAC, 8x 400GbE QSFP-DD Switch

Authorised Arista Partner

SKU:DCS-7060CX5-56D8-R

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

End of life
This item has been replaced by DCS-7260CX3-64-R.

Description

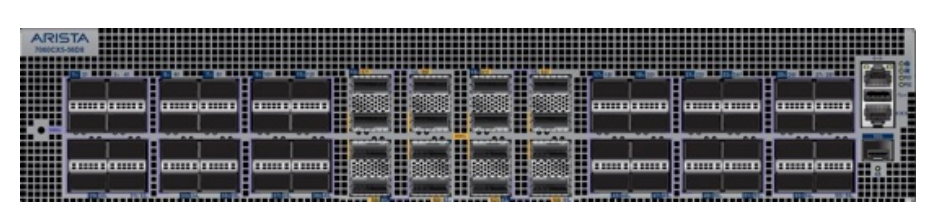

The Arista DCS-7060CX5-56D8-R is a 2RU fixed-configuration 100G/400G data centre switch from the 7060X5 series, with 56 x 100GbE QSFP100 ports and 8 x 400GbE QSFP-DD ports. It delivers 8.8 Tbps of throughput, wire-speed L2 and L3 forwarding and 825 ns latency, making it well suited to leaf and aggregation roles in high-density data centre fabrics. This variant has rear-to-front airflow and dual AC power supplies.

The QSFP-DD ports support 400G, 200G, 100G, 50G, 25G and 10G operation, giving a clear migration path from 100G to 400G, while breakout support scales to as many as 88 x 100GbE ports. Arista EOS brings CloudVision integration, Zero Touch Provisioning, LANZ microburst detection and sFlow, with 1+1 hot-swap power supplies and N+1 hot-swap fans for resilient operation.

Features

- Flexible 100GbE, 200GbE and 400GbE support using QSFP-DD for migration from 100G to 400G
- Wire-speed L2 and L3 forwarding
- 128-way ECMP for hyperscale networks
- Dynamic Load Balancing and Advanced Congestion Management for NVMe and AI workloads
- Multi-chassis LAG (MLAG) for active/active L2 multi-pathing
- 1+1 hot-swappable power supplies and N+1 hot-swappable fans
- Tool-less rails for simple installation
- Runs Arista EOS with CloudVision, Zero Touch Provisioning, LANZ microburst detection and sFlow

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 56 x 100GbE QSFP100 ports
- 8 x 400GbE QSFP-DD ports (400G/200G/100G/50G/25G/10G capable)
- 1 x SFP+ port
- Up to 88 x 100GbE ports maximum with breakout
- 8.8 Tbps throughput (17.6 Tbps full duplex)
- 5.3 Bpps packet forwarding rate
- 825 ns latency
- 57 MB packet buffer
- 16 GB system memory, 32 GB flash storage
- Multi-core x86 CPU
- 1 x 10/100/1000 management port, 1 x RJ-45 RS-232 serial console, 1 x USB port
- 2 x hot-swap power supplies (1+1 redundant), 3 x hot-swap fans (N+1 redundant)
- Rear-to-front airflow (only supported with 400G DACs and AOCs)
- Typical/maximum power draw 322 W / 818 W
- Supported power supplies: PWR-1512-AC, PWR-1511-DC
- Dimensions 48.3 x 8.8 x 60.0 cm (2RU), weight 17.8 kg

FAQs

Q: What airflow does the DCS-7060CX5-56D8-R use?
A: This SKU has rear-to-front airflow. Rear-to-front airflow is only supported with 400G DACs and AOCs, so plan cabling and optics accordingly.

Q: What power supplies does this switch use?
A: It ships with two hot-swap AC power supplies in a 1+1 redundant configuration. The supported power supply models are PWR-1512-AC and PWR-1511-DC.

Q: How many 100GbE ports can this switch provide?
A: It has 56 native 100GbE QSFP100 ports, and with breakout on the 400G QSFP-DD ports it supports up to 88 x 100GbE ports.

Q: Can the QSFP-DD ports run at speeds below 400G?
A: Yes. The 8 QSFP-DD ports are capable of 400G, 200G, 100G, 50G, 25G and 10G operation, which supports a staged migration from 100G to 400G.

Q: What is the typical power draw?
A: Typical power draw is 322 W, with a maximum of 818 W.

Q: What operating system and management tools does it run?
A: It runs Arista EOS and supports CloudVision, Zero Touch Provisioning, LANZ microburst detection and sFlow.
