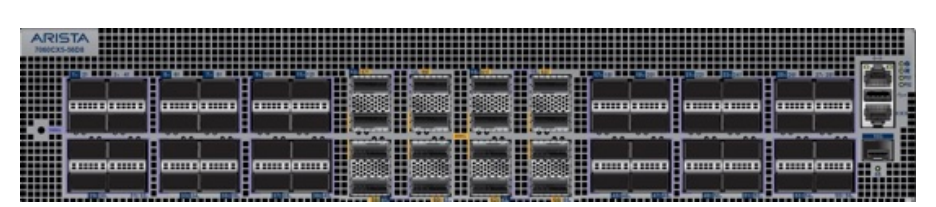

Arista DCS-7060CX5-56D8-F | 7060X5 100G/400G Data Centre Switch, 56x QSFP100, 8x QSFP-DD, Front-to-Rear

Arista DCS-7060CX5-56D8-F | 7060X5 100G/400G Data Centre Switch, 56x QSFP100, 8x QSFP-DD, Front-to-Rear

Authorised Arista Partner

SKU:DCS-7060CX5-56D8-F

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

End of life
This item has been replaced by DCS-7260CX3-64-F.

Description

The DCS-7060CX5-56D8-F is a 2RU 100G/400G data centre switch from the Arista 7060X5 Series, built for leaf and aggregation roles in cloud and data centre networks. It provides 56 x 100GbE QSFP100 ports plus 8 x 400GbE QSFP-DD ports and 1 x SFP+ port, with 8.8 Tbps of wire-speed throughput, 5.3 billion packets per second forwarding and 825 ns latency. This -F model uses front-to-rear airflow, so it suits racks where the port side faces the cold aisle.

The 7060X5 supports breakouts for up to 8 x 400GbE, 16 x 200GbE or 88 x 100GbE ports, and its QSFP-DD interfaces accept industry-standard optics and cables to ease migration to 400G. Redundant hot-swappable power supplies and fans, 57 MB of packet buffer and Arista EOS automation keep it suited to dense, high-availability fabrics.

Features

- Cloud networking with 128-way ECMP, dynamic load balancing and advanced congestion management
- QSFP-DD interfaces use industry-standard optics and cables, easing migration to 400G
- 1+1 redundant, hot-swappable power supplies with over 93% efficiency
- N+1 redundant, hot-swappable fans
- Multi-chassis LAG (MLAG) for active/active L2 multi-pathing
- Tool-less rails for simple installation
- Runs Arista EOS with automation and zero touch provisioning

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 56 x 100GbE QSFP100 ports + 8 x 400GbE QSFP-DD ports + 1 x SFP+ (1/10GbE)
- Up to 8 x 400GbE, 16 x 200GbE or 88 x 100GbE ports using breakouts
- Throughput: 8.8 Tbps (17.6 Tbps full duplex)
- Forwarding rate: 5.3 billion packets per second
- Latency: 825 ns
- Packet buffer: 57 MB
- System memory: 16 GB; flash storage: 32 GB; multi-core x86 CPU
- 1 x 10/100/1000 management port, 1 x RS-232 (RJ-45) console, 1 x USB
- 2 x hot-swappable power supplies (1+1 redundant); 3 x hot-swappable fans (N+1 redundant)
- Typical/maximum power draw: 322 W / 818 W
- Airflow: front-to-rear
- Form factor: 2RU; dimensions 44.5 x 8.8 x 59.5 cm; weight 17.8 kg
- Operating temperature: 0 to 40°C

FAQs

Q: What ports does the DCS-7060CX5-56D8-F provide?
A: It has 56 x 100GbE QSFP100 ports, 8 x 400GbE QSFP-DD ports and 1 x SFP+ (1/10GbE) port, plus a 10/100/1000 management port, RS-232 (RJ-45) console and USB port.

Q: What does the -F suffix mean?
A: The -F denotes front-to-rear airflow, where air is drawn in at the port side and exhausted at the rear. Check your rack's hot and cold aisle layout before ordering.

Q: Can the ports be broken out to lower speeds?
A: Yes. Using breakouts the switch supports up to 8 x 400GbE, 16 x 200GbE or 88 x 100GbE ports.

Q: Is power and cooling redundant?
A: Yes. It has 2 hot-swappable power supplies in a 1+1 redundant arrangement and 3 hot-swappable fans in an N+1 arrangement.

Q: What network roles is this switch suited to?
A: It is aimed at leaf and aggregation roles in cloud and data centre networks, where dense 100G connectivity with 400G uplinks is needed.

Q: What operating system does it run?
A: It runs Arista EOS, with support for automation and zero touch provisioning.
