Arista

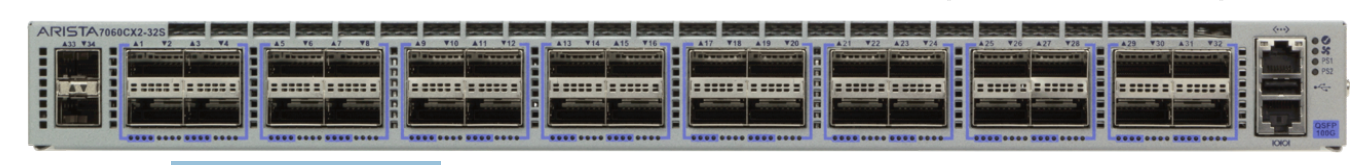

Arista DCS-7060CX2-32S-F | 7060CX2 32x100GbE QSFP Switch, 2x SFP+, Front-to-Rear, Dual AC

Arista DCS-7060CX2-32S-F | 7060CX2 32x100GbE QSFP Switch, 2x SFP+, Front-to-Rear, Dual AC

Authorised Arista Partner

SKU:DCS-7060CX2-32S-F

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

End of life
This item has been replaced by DCS-7050CX3-32C-F.

Description

The Arista DCS-7060CX2-32S-F is a 1RU 100GbE data centre switch with 32 QSFP100 ports and 2 SFP+ ports, delivering 6.4Tbps of switching throughput with latency as low as 450ns. This variant uses front-to-rear airflow and ships with dual redundant AC power supplies, making it well suited to leaf and spine deployments in high-density data centre racks.

Every QSFP100 port can run at 100GbE, 40GbE, 4x10GbE, 4x25GbE or 2x50GbE without limitation, giving flexible migration paths between speeds. Hot-swappable power supplies and fans, tool-less rails and a 22 MB shared packet buffer support resilient, easily serviced deployments running Arista EOS.

Features

- Typical power of under 7W per port
- Over 93% efficient power supplies
- 1+1 redundant and hot-swappable power
- N+1 redundant and hot-swappable fans
- Tool-less rails for simple installation
- Supports IEEE 25GbE
- All QSFP ports can operate in any speed mode without limitation

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 32 x QSFP100 ports (100GbE, 40GbE, 4x10GbE, 4x25GbE or 2x50GbE per port)
- 2 x SFP+ (10GbE) ports
- 6.4 Tbps switching throughput
- Latency as low as 450ns
- 22 MB shared packet buffer
- 1RU form factor
- Front-to-rear airflow
- Dual (1+1 redundant) hot-swappable AC power supplies (PWR-500AC-F)
- N+1 redundant hot-swappable fans (4x FAN-7000-F)
- Management: 1x GbE RJ45, 1x RS-232 RJ45, 1x USB-A
- 8 GB system memory
- Arista EOS

FAQs

Q: What speeds do the QSFP100 ports support?
A: Each of the 32 QSFP100 ports can operate at 100GbE, 40GbE, 4x10GbE, 4x25GbE or 2x50GbE, and all ports can run in any speed mode without limitation.

Q: What airflow direction does this model use?
A: The DCS-7060CX2-32S-F uses front-to-rear airflow, with the matching front-to-rear fan modules (FAN-7000-F) and power supplies (PWR-500AC-F).

Q: Is the power supply redundant?
A: Yes. It has dual 1+1 redundant, hot-swappable AC power supplies, plus N+1 redundant hot-swappable fans.

Q: What is the switching throughput and latency?
A: The switch delivers 6.4 Tbps of switching throughput with latency as low as 450ns and a 22 MB shared packet buffer.

Q: What operating system does it run?
A: It runs Arista EOS.

Q: What management ports are provided?
A: There is one GbE RJ45 management port, one RS-232 RJ45 console port and one USB-A port.
