Arista

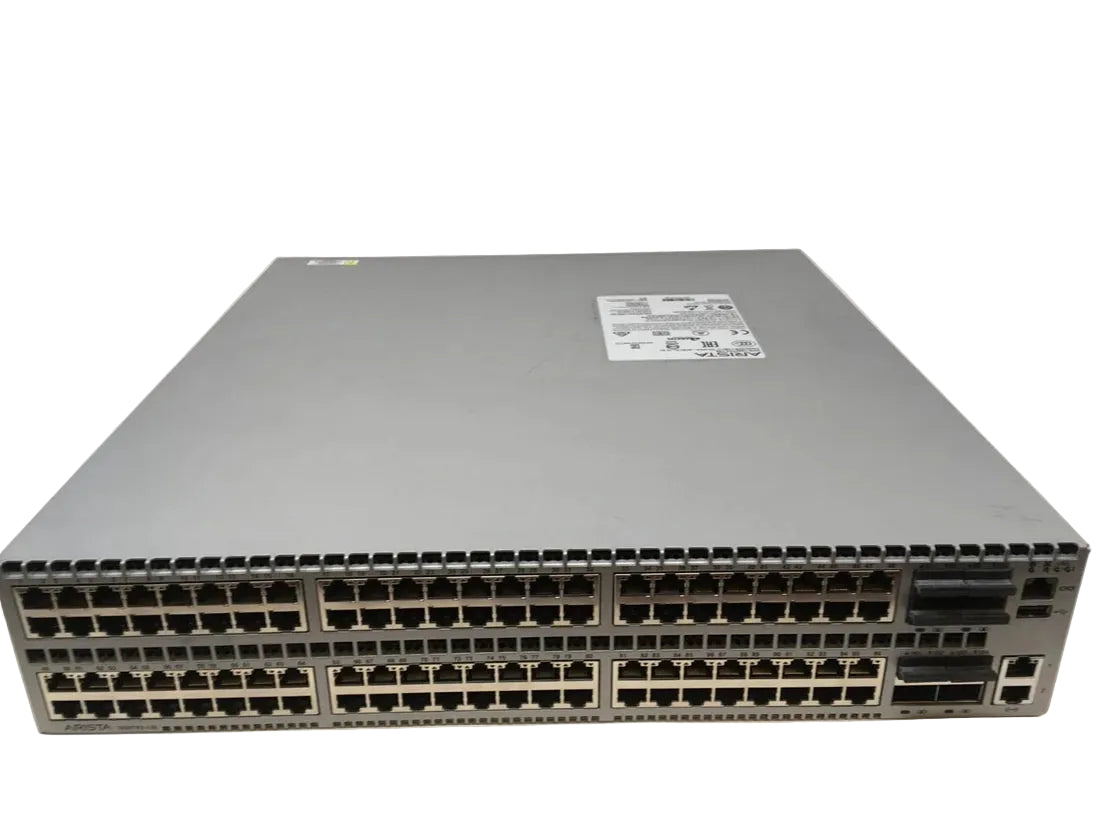

Arista DCS-7050TX2-128-R | 7050TX2 96-Port 10GBASE-T Switch, 8x QSFP+, Rear-to-Front

Arista DCS-7050TX2-128-R | 7050TX2 96-Port 10GBASE-T Switch, 8x QSFP+, Rear-to-Front

Authorised Arista Partner

SKU:DCS-7050TX2-128-R

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista DCS-7050TX2-128-R is a 2RU 96-port 10GBASE-T data centre switch from the 7050X2 family, with eight 40GbE QSFP+ uplinks and Arista EOS. It delivers wire-speed Layer 2, 3 and 4 forwarding with a switching capacity of 2.56 Tbps and latency of around 3 microseconds. This SKU uses rear-to-front airflow and ships with dual PWR-745AC-R AC power supplies, making it suited to top-of-rack deployments where the cold aisle is at the rear of the cabinet.

The 96 copper ports support 1/10GBASE-T over standard twisted-pair cabling, so existing server NICs can be connected without optics. Hot-swappable power supplies and fans, a single EOS image across the product family and CloudVision support make it a practical fit for big data, cloud, virtualised and traditional data centre designs.

Features

- Wire-speed Layer 2 and Layer 3 forwarding with low latency
- Hot-swappable, colour-coded power supplies and fans
- Single Arista EOS image across the product family
- Supports CloudVision management
- Optional built-in SSD for logging and data capture
- Suited to big data, cloud, virtualised and traditional data centre designs

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 96 x 1/10GBASE-T (RJ45) ports
- 8 x 40GbE QSFP+ uplink ports
- Switching capacity 2.56 Tbps
- Forwarding rate up to 1440 Mpps
- MAC address table 288,000 entries
- 4096 VLANs
- 16MB packet buffer
- Latency approx. 3 usec
- Quad-core x86 CPU, 8GB DRAM, 4GB flash
- Management: 2 x 10/100/1000 RJ45, 1 x RS-232 RJ45 console, 1 x USB-A
- Rear-to-front airflow
- 2 x PWR-745AC-R AC power supplies (1+1 hot-swap)
- 4 x FAN-7002-R fans (N+1 hot-swap)
- 2 x C13-C14 power cords included
- 2RU form factor
- Arista EOS

FAQs

Q: What ports does the DCS-7050TX2-128-R provide?
A: It has 96 1/10GBASE-T RJ45 ports for server access and 8 QSFP+ 40GbE ports for uplinks or high-speed connections.

Q: What does rear-to-front airflow mean for this switch?
A: Cool air is drawn in from the rear of the switch (the port side faces the hot aisle) and exhausted at the front. Choose this variant when the cabinet layout calls for it, and use the front-to-rear model for the opposite arrangement.

Q: Which power supplies are included?
A: Two PWR-745AC-R AC power supplies operating in a 1+1 hot-swap arrangement, along with two C13-C14 power cords.

Q: Can I connect existing copper server NICs without optics?
A: Yes. The 96 ports are 1/10GBASE-T, so they connect to standard twisted-pair cabling and 1G or 10G copper server NICs directly.

Q: What operating system does it run?
A: Arista EOS, the same single software image used across the Arista product family, with support for CloudVision management.

Q: What is the form factor?
A: It is a 2RU rack-mount switch with hot-swappable fans (4 x FAN-7002-R, N+1) and power supplies.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
