Arista

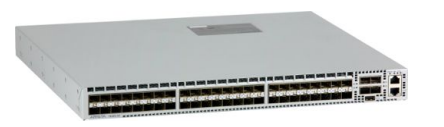

Arista DCS-7050S-52# | 7050S 52-Port 10G SFP+ Switch, No Fans, No PSU

Arista DCS-7050S-52# | 7050S 52-Port 10G SFP+ Switch, No Fans, No PSU

Authorised Arista Partner

SKU:DCS-7050S-52#

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

End of life
This item has been replaced by DCS-7050SX-64#.

Description

The Arista DCS-7050S-52# is a 1RU 52-port 10GbE SFP+ data centre switch from the Arista 7050S family, delivering wire-speed Layer 2, 3 and 4 forwarding for top-of-rack and leaf deployments. This SKU is the chassis only with no fans and no power supplies, so fans and PSUs must be selected separately to complete the build.

The switch offers switching capacity of 1.04 Tbps and a forwarding rate of 780 Mpps, with latency from 800ns to 1.2us. It runs Arista EOS, supports 1+1 redundant hot-swappable power supplies and fans, and is designed for low power consumption in data centre environments.

Features

- Wire-speed Layer 2 and Layer 3 forwarding
- 1+1 redundant, hot-swappable power supplies and fans (ordered separately for this SKU)
- Self-healing software with Stateful Fault Repair (SFR)
- Up to 16 10GbE ports per link aggregation group (LAG)
- Arista EOS extensible operating system
- Optimised for low power consumption in data centre leaf deployments

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- 52 x 1/10GbE SFP+ ports
- 1RU form factor
- Switching capacity: 1.04 Tbps
- Forwarding rate: 780 Mpps
- Latency: 800ns to 1.2us
- Typical power draw under 2W per port with twinax copper
- Dual-core x86 CPU, 4GB DRAM
- 1 x RJ-45 management port, 1 x RS-232 console port, 1 x USB port
- Chassis only: no fans, no PSU (fans and PSU required)
- Runs Arista EOS

FAQs

Q: Does the DCS-7050S-52# include fans and power supplies?
A: No. This SKU is the chassis only, with no fans and no power supplies. Compatible fans and PSUs must be ordered separately for the switch to operate.

Q: How many ports does the Arista DCS-7050S-52# have?
A: It provides 52 x 1/10GbE SFP+ ports in a 1RU chassis, plus an RJ-45 management port, an RS-232 console port and a USB port.

Q: What switching performance does the 7050S-52 offer?
A: The 7050S-52 delivers 1.04 Tbps of switching capacity and a forwarding rate of 780 Mpps, with latency between 800ns and 1.2us.

Q: Does this switch support redundant power and cooling?
A: Yes. The 7050S platform supports 1+1 redundant, hot-swappable power supplies and fans. For this SKU, both are ordered separately.

Q: What operating system does the 7050S-52 run?
A: It runs Arista EOS, an extensible operating system with self-healing capabilities such as Stateful Fault Repair.

Q: What type of deployment is the 7050S-52 suited to?
A: It is designed for 10GbE data centre top-of-rack and leaf deployments where wire-speed Layer 2/3/4 forwarding and low power consumption are priorities.
