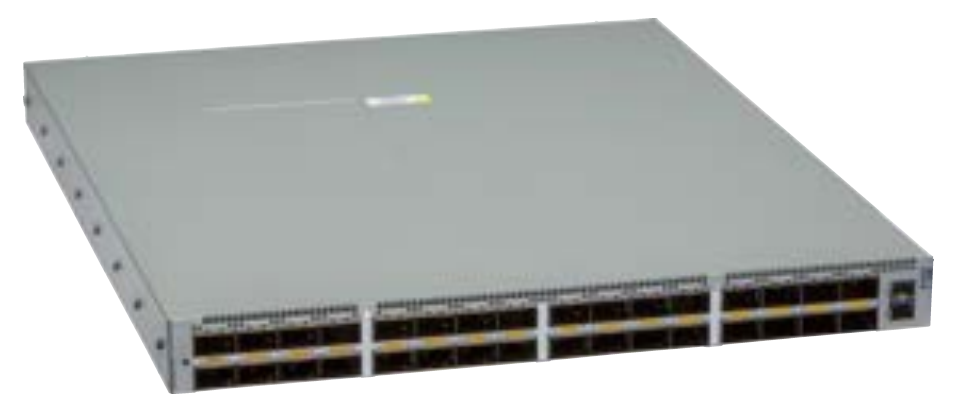

Arista DCS-7050DX4-32S-R | 7050X4 32x400G QSFP-DD Switch, 2x SFP+, Rear-to-Front, 2x AC

Arista DCS-7050DX4-32S-R | 7050X4 32x400G QSFP-DD Switch, 2x SFP+, Rear-to-Front, 2x AC

Authorised Arista Partner

SKU:DCS-7050DX4-32S-R

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista DCS-7050DX4-32S-R is a 1RU fixed-configuration 400G data centre switch from the 7050X4 Series, with 32 x 400GbE QSFP-DD ports and 2 x SFP+ ports. This SKU has rear-to-front airflow and dual AC power supplies, and suits top-of-rack leaf or fixed-configuration spine roles in high-density cloud and enterprise data centres.

It delivers 12.8 Tbps of switching capacity with wire-speed Layer 2 and Layer 3 forwarding and latency from 900ns. Each QSFP-DD port supports flexible breakout, giving up to 128 x 10G/25G or 144 x 50G interfaces, and 1+1 redundant hot-swap power supplies with N+1 redundant fans support continuous operation.

Features

- Wire-speed L2 and L3 forwarding
- Each QSFP-DD port supports a choice of 7 speeds with flexible breakout
- Under 10W per 400G port
- Over 94% efficient power supplies
- 1+1 redundant, hot-swappable power and N+1 redundant, hot-swappable fans
- Routing protocols: OSPF, OSPFv3, BGP, MP-BGP, IS-IS, RIPv2
- Jumbo frames (9216 bytes), IGMP snooping, LLDP, storm control
- Rear-to-front airflow for hot-aisle and cold-aisle rack designs

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 32 x 400GbE QSFP-DD ports + 2 x SFP+ (1/10GbE) ports
- Throughput: 12.8 Tbps (25.6 Tbps full-duplex)
- Forwarding rate: up to 5.3 Bpps
- Latency: from 900ns
- Quad-core x86 CPU, 16GB system memory, 16GB flash storage
- 132 MB dynamic packet buffer
- Up to 128 x 10G/25G or 144 x 50G interfaces
- 128-way ECMP
- 1 x 10/100/1000 management port, 1 x RS-232 serial console (RJ-45), 1 x USB
- 2 x hot-swap AC power supplies (1+1 redundant); 4 hot-swappable fans (N+1 redundant)
- Typical/max power: 353W / 880W
- 1RU form factor, 11.1 kg (24.4 lbs)
- Operating temperature 0 to 40C; operating altitude up to 3,000 m
- Rear-to-front airflow

FAQs

Q: What ports does the Arista DCS-7050DX4-32S-R have?
A: It has 32 x 400GbE QSFP-DD ports and 2 x SFP+ (1/10GbE) ports, plus a 10/100/1000 management port, an RJ-45 RS-232 serial console and a USB port.

Q: What airflow and power configuration is this SKU?
A: This model has rear-to-front airflow and two hot-swappable AC power supplies in a 1+1 redundant configuration, with four hot-swappable fans in an N+1 arrangement.

Q: Can the 400G ports break out to lower speeds?
A: Yes. Each QSFP-DD port supports a choice of 7 speeds with flexible breakout, giving up to 128 x 10G/25G or 144 x 50G interfaces.

Q: What roles is this switch suited to?
A: It is designed for top-of-rack leaf deployments or as a fixed-configuration spine switch in data centre fabrics.

Q: What is the switching capacity and latency?
A: The switch provides 12.8 Tbps of throughput, a forwarding rate of up to 5.3 Bpps and latency from 900ns, with a 132 MB dynamic packet buffer.

Q: Which routing protocols are supported?
A: The platform supports OSPF, OSPFv3, BGP, MP-BGP, IS-IS and RIPv2, along with 128-way ECMP.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
