Arista DCS-7050CX3M-32S-R | 7050X3 32-Port 100G QSFP100 MACsec Switch, Rear-to-Front

Arista DCS-7050CX3M-32S-R | 7050X3 32-Port 100G QSFP100 MACsec Switch, Rear-to-Front

Authorised Arista Partner

SKU:DCS-7050CX3M-32S-R

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

End of life
This product is end of life. Contact us for alternatives.

Description

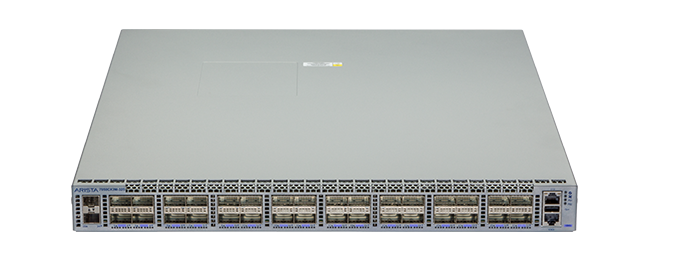

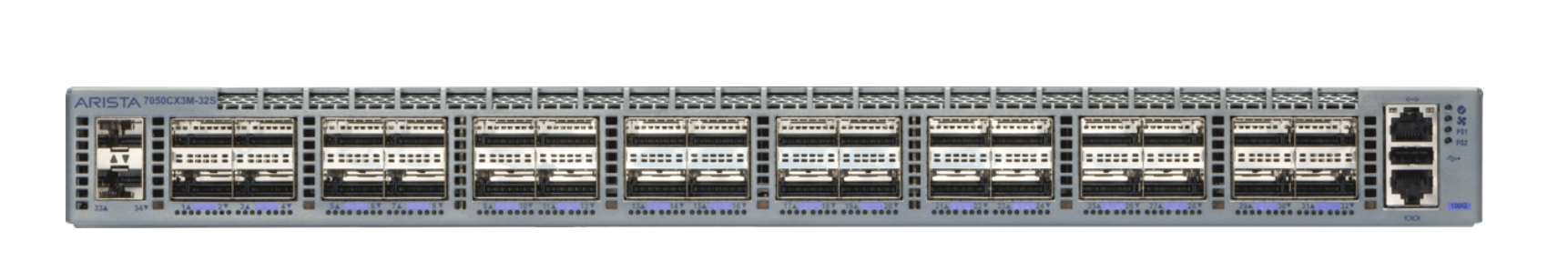

The Arista 7050CX3M-32S-R is a 1RU data centre leaf/spine switch with 32 x 100G QSFP100 ports and 2 x 10G SFP+ ports. It adds wire-speed IEEE 802.1AE MACsec encryption on all QSFP ports, making it well suited to secure data centre interconnect and site-to-site links. The -R suffix denotes rear-to-front (port-side intake) airflow, which suits racks where the ports face the hot aisle.

Each QSFP port supports 10G, 25G, 40G, 50G and 100G, with breakout to a maximum density of 128 x 10G/25G ports. The switch delivers up to 6.4 Tbps switching capacity with latency from 800 ns and a 32MB fully shared packet buffer. It runs Arista EOS with VXLAN, eAPI, OpenFlow and DirectFlow support, and includes 1+1 redundant hot-swappable power supplies and N+1 redundant hot-swappable fans.

Features

- Wire-speed MACsec encryption at 10G, 25G, 40G and 100G, suited to secure DCI and site-to-site links
- Dynamic buffer allocation for burst absorption
- Programmable architecture that supports new packet formats
- Over 94% efficient power supplies
- Typical power under 10W per 100G port
- Tool-less rails for simple installation
- Runs Arista EOS with VXLAN, eAPI, OpenFlow and DirectFlow support

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 32 x 100G QSFP100 ports plus 2 x 10G SFP+ ports
- Each QSFP port supports 10G/25G/40G/50G/100G (4x10G, 4x25G, 1x40G, 2x50G, 1x100G)
- Up to 6.4 Tbps switching capacity
- Up to 2 billion packets per second forwarding rate
- Latency from 800 ns
- 32MB fully shared packet buffer
- Wire-speed MACsec (IEEE 802.1AE) encryption on all QSFP ports
- Maximum density: 128 x 10G/25G ports
- 1RU form factor, rear-to-front airflow
- 1+1 redundant hot-swappable power supplies and N+1 redundant hot-swappable fans

FAQs

Q: What does the -R suffix mean on the DCS-7050CX3M-32S-R?
A: The -R suffix denotes rear-to-front airflow, with port-side intake. Choose this variant when your rack layout requires air to enter from the port side.

Q: Does this switch support MACsec encryption?
A: Yes. It provides wire-speed IEEE 802.1AE MACsec encryption on all QSFP ports at 10G, 25G, 40G and 100G speeds.

Q: What port speeds does each QSFP port support?
A: Each QSFP port supports 10G, 25G, 40G, 50G and 100G, including 4x10G, 4x25G, 1x40G, 2x50G and 1x100G configurations.

Q: What is the maximum port density with breakout?
A: The switch supports up to 128 x 10G/25G ports in maximum density configurations.

Q: Does it have redundant power and cooling?
A: Yes. It includes 1+1 redundant hot-swappable power supplies and N+1 redundant hot-swappable fans.

Q: What operating system does the switch run?
A: It runs Arista EOS, with VXLAN, eAPI, OpenFlow and DirectFlow support.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
