Arista

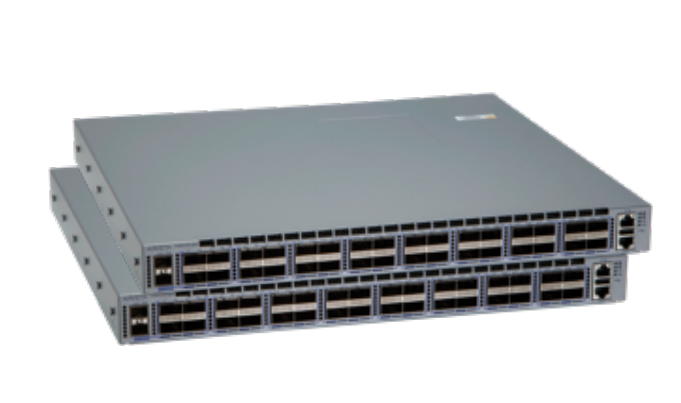

Arista DCS-7050CX3-32S-F | 7050X3 32x100G QSFP + 2x SFP+ Data Centre Switch, Front-to-Rear

Arista DCS-7050CX3-32S-F | 7050X3 32x100G QSFP + 2x SFP+ Data Centre Switch, Front-to-Rear

Authorised Arista Partner

SKU:DCS-7050CX3-32S-F

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

End of life
This item has been replaced by DCS-7050CX3-32C-F.

Description

The 7050CX3-32S is a 1RU fixed-configuration data centre leaf and spine switch from the Arista 7050X3 Series, delivering 32 x 100GbE QSFP ports plus 2 x 10G SFP+ ports. This SKU is the front-to-rear airflow variant, suited to hot-aisle and cold-aisle rack layouts where air is drawn in at the port side and exhausted at the rear. It provides 6.4 Tbps of switching throughput, up to 2 Bpps forwarding and latency from 800ns, running Arista EOS.

The 32 QSFP ports support 40G, 50G and 25G operation and can break out to as many as 128 x 25GbE or 128 x 10GbE ports, giving flexible migration paths from 10G and 40G server access to 25G and 100G fabrics. A 32MB fully shared packet buffer absorbs bursts, while hot-swappable power supplies and N+1 redundant fans support high-availability deployments with CloudVision management.

Features

- Arista EOS with Smart System Upgrade (SSU), LANZ and advanced network telemetry
- Cut-through and store-and-forward switching
- Dynamic fully shared buffer architecture for burst absorption
- Wire-speed unicast and multicast forwarding
- Rich L2 and L3 feature set with PFC and ETS support for lossless Ethernet
- Supports CloudVision management
- Hot-swappable power supplies and N+1 fan redundancy
- Under 7W per 100G port

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 32 x 100GbE QSFP ports (also 40G, 50G and 25G breakout modes)
- 2 x 10G SFP+ ports
- 1RU form factor
- 6.4 Tbps switching throughput
- Up to 2 Bpps forwarding rate
- Latency from 800ns
- 32MB fully shared packet buffer
- Up to 128 x 25GbE or 128 x 10GbE ports using breakout
- Typical power draw 192W
- Hot-swappable power supplies and N+1 redundant fans
- Front-to-rear airflow

FAQs

Q: What airflow direction does the DCS-7050CX3-32S-F use?
A: The F suffix denotes front-to-rear airflow, where air enters at the port side and exits at the rear of the switch.

Q: Can the 100G QSFP ports run at lower speeds?
A: Yes. The QSFP ports support 40G, 50G and 25G modes, and breakout allows up to 128 x 25GbE or 128 x 10GbE ports.

Q: How many SFP+ ports does this switch include?
A: It includes 2 x 10G SFP+ ports in addition to the 32 x 100GbE QSFP ports.

Q: What is the switching capacity and latency?
A: The switch provides 6.4 Tbps of switching throughput, up to 2 Bpps forwarding and latency from 800ns.

Q: Does it support redundant power and cooling?
A: Yes. It has hot-swappable power supplies and N+1 redundant fans.

Q: What operating system and management does it support?
A: It runs Arista EOS, including Smart System Upgrade and LANZ, and supports CloudVision management.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
