Arista

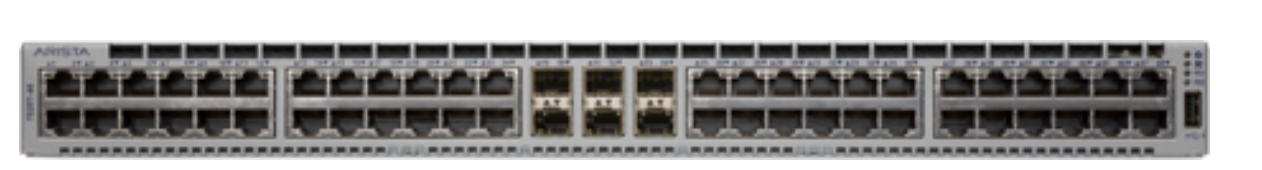

Arista DCS-7020TR-48-F | 7020R 48-Port Gigabit Data Centre Switch, 6x 10G SFP+, Front-to-Rear Airflow

Arista DCS-7020TR-48-F | 7020R 48-Port Gigabit Data Centre Switch, 6x 10G SFP+, Front-to-Rear Airflow

Authorised Arista Partner

SKU:DCS-7020TR-48-F

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista DCS-7020TR-48-F is a 48-port Gigabit data centre switch from the 7020R Series, with 48x 100/1000Mb RJ45 ports and 6x SFP+ uplink ports supporting 1G or 10G optics and cables. This front-to-rear airflow model delivers wire-speed Layer 2 and Layer 3 forwarding with an ultra-deep packet buffer, making it well suited to high-density data centre top-of-rack deployments.

The 7020R Series is purpose-built for power-efficient, high-performance operation and runs Arista EOS for a feature-rich L2/L3 software stack. Virtual Output Queues per port help manage bursty traffic, and the SFP+ uplinks accept a full range of Arista optics and cables for flexible aggregation designs.

Features

- Purpose-built, power-efficient design for high-density data centres
- Non-blocking wire-speed L2 and L3 forwarding
- Ultra-deep packet buffers with Virtual Output Queues per port
- 1G or 10G SFP+ uplinks with a full range of optics and cables
- Feature-rich L2/L3 running Arista EOS

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 48 x 100/1000BASE-T RJ45 ports
- 6 x 1/10GbE SFP/SFP+ uplink ports
- Throughput: 216 Gbps
- Up to 300 Mpps forwarding (7020R Series)
- Ultra-deep packet buffer up to 3GB (7020R Series)
- Wire-speed L2 and L3 forwarding
- Front-to-rear airflow

FAQs

Q: What uplink options does the DCS-7020TR-48-F provide?
A: It has 6x SFP/SFP+ ports that support 1G or 10G optics and cables, used for uplinks or aggregation.

Q: What speeds do the 48 RJ45 ports support?
A: The 48 copper ports are 100/1000BASE-T, supporting 100Mb and 1Gb connections.

Q: What does the -F suffix mean?
A: The -F suffix indicates front-to-rear airflow, suited to racks where the cooling intake is at the port side of the switch.

Q: Does this switch support Layer 3 routing?
A: Yes. It provides wire-speed Layer 2 and Layer 3 forwarding and runs Arista EOS.

Q: What makes the 7020R Series suited to data centre use?
A: It combines an ultra-deep packet buffer of up to 3GB with Virtual Output Queues per port, helping handle bursty data centre traffic with low power consumption.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
