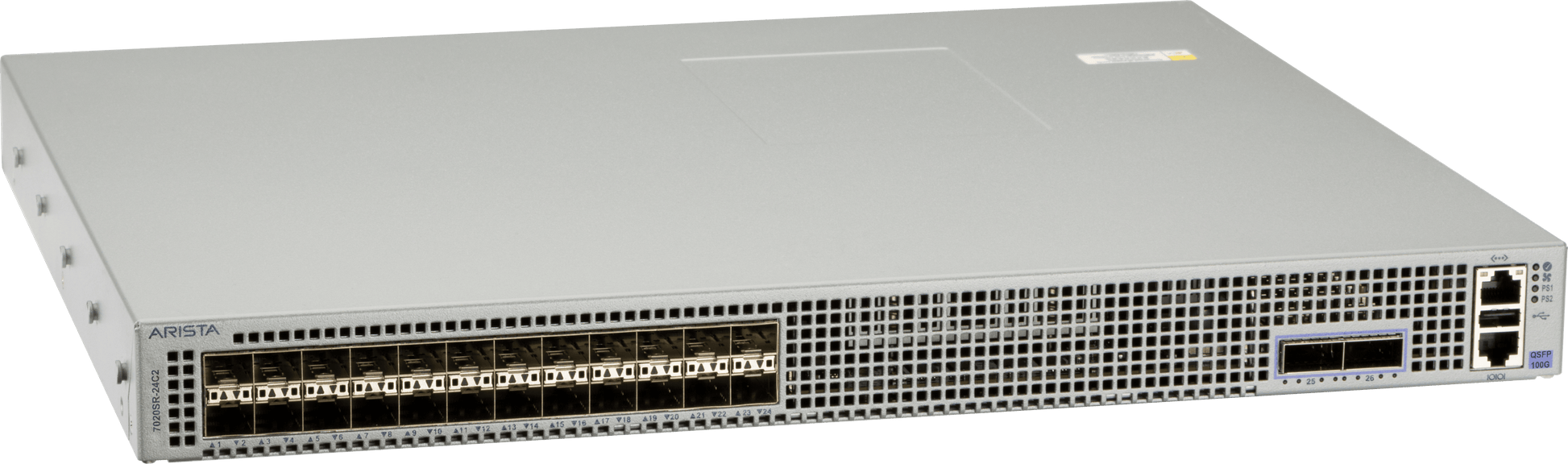

Arista DCS-7020SR-24C2-F | 7020R 24-Port 10G SFP+ Switch, 2x 100G QSFP100, Front-to-Rear
Arista DCS-7020SR-24C2-F | 7020R 24-Port 10G SFP+ Switch, 2x 100G QSFP100, Front-to-Rear
Authorised Arista Partner
SKU:DCS-7020SR-24C2-F
Stock Status: Enquire
Couldn't load pickup availability
Description
Description
The Arista DCS-7020SR-24C2-F is a 1RU data centre switch from the 7020R Series, built around 24 SFP+ ports for 1G/10G connectivity and 2 QSFP100 uplink ports supporting 100GbE or 40GbE. This SKU ships with front-to-rear airflow and dual AC power supplies, making it suited to hot-aisle and cold-aisle rack deployments where redundant power is required.
It runs Arista EOS, giving a consistent operating system across your Arista estate, with L2/L3 multipathing, VXLAN support, Zero Touch Provisioning, sFlow monitoring and CloudVision integration. Deep dynamic packet buffers, hot-swappable fans and 1+1 hot-swappable power supplies support demanding top-of-rack and aggregation roles.
Features
Features
- Runs Arista EOS, the same operating system across all Arista devices
- L2/L3 multipathing and VXLAN support
- Hot-swappable redundant power supplies and fans
- Zero Touch Provisioning, sFlow monitoring and CloudVision integration
- Broad QoS support
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 24 x 1/10GbE SFP+ ports
- 2 x 100GbE QSFP100 ports (also support 40GbE; up to 8 x 25GbE via breakout)
- 1RU form factor
- Up to 1.04 Tbps combined non-blocking forwarding
- Deep dynamic packet buffers
- Front-to-rear airflow with 3 x FAN-7000-F fan modules
- 2 x AC power supplies, 1+1 hot-swappable
- Management: 1 x 10/100/1000 RJ45, 1 x RS-232 serial, 1 x USB
- Operating system: Arista EOS
FAQs
Q: What ports does the DCS-7020SR-24C2-F provide?
A: It has 24 x 1/10GbE SFP+ ports and 2 x 100GbE QSFP100 ports. The QSFP100 ports also support 40GbE and up to 8 x 25GbE via breakout.
Q: What airflow direction does this model use?
A: This SKU uses front-to-rear airflow with 3 x FAN-7000-F fan modules.
Q: Does it include redundant power?
A: Yes. It has 2 x AC power supplies in a 1+1 hot-swappable configuration, and the fans are also hot-swappable.
Q: What operating system does it run?
A: It runs Arista EOS, with support for L2/L3 multipathing, VXLAN, Zero Touch Provisioning, sFlow and CloudVision integration.
Q: How is the switch managed out of band?
A: It provides a 10/100/1000 RJ45 management port, an RS-232 serial console port and a USB port.
Q: Does this model include IPSec?
A: No. This is the standard 7020R variant without IPSec. The SRG variant is the one that adds IPSec.
