Arista

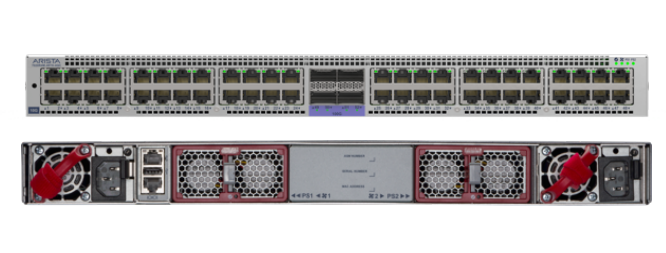

Arista DCS-7020R4M-48TX-4QC-R | 7020R4 48-Port 10GbE RJ45 Switch Router, 4x100G QSFP

Arista DCS-7020R4M-48TX-4QC-R | 7020R4 48-Port 10GbE RJ45 Switch Router, 4x100G QSFP

DCS-7020R4M-48TX-4QC-R

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Arista 7020R4 Series Switch Router delivers 48x10GbE RJ45 ports and 4x100GbE QSFP uplinks in a compact 1RU form factor, purpose-built for data centre leaf, service provider access, and network edge deployments. With up to 2 Tbps switching throughput, deep buffer Virtual Output Queueing (VOQ) architecture, and TunnelSecâ„¢ wire-speed encryption (MACsec, IPsec, VXLANsec), it provides non-blocking, low-latency performance even under demanding traffic conditions. The rear-to-front airflow and dual AC power supplies support hot-aisle cooling configurations and high-availability requirements.

Running Arista EOS®, the 7020R4 supports EVPN-VXLAN overlay networking, MPLS, Segment Routing, and FlexRoute™ for internet-scale routing tables exceeding 2.5 million routes — all with minimal power draw. Synchronous Ethernet and IEEE 1588 precision timing make it equally suited to HPC, Big Data, and media environments. Visit iptrading.com.au to secure your order — enterprise-grade hardware with expert support.

Features

- Arista TunnelSecâ„¢ wire-speed encryption at Layer 2 and Layer 3 (MACsec, IPsec, VXLANsec)
- FlexRouteâ„¢ engine for internet-scale routing with 2.5M+ route support at low power draw
- EVPN-VXLAN overlay networking with L2 and L3 EVPN for scalable multi-tenant fabrics
- MPLS, Segment Routing (SR), LDP, RSVP tunnelling support for SP and enterprise WAN edge
- MLAG active/active L2 topology for link-level redundancy without spanning tree
- Layer 3 ECMP for high-radix spine/leaf topology construction
- Deep buffer VOQ architecture ideal for HPC, Big Data, and media storage workloads
- Accelerated sFlow and comprehensive streaming telemetry for real-time network visibility
- Flexible programmable pipeline with Inband Network Telemetry support
- Synchronous Ethernet and IEEE 1588 for precision timing-sensitive applications
- IPv4/IPv6 VPNs (RFC 4364), 6PE/6VPE, VPLS, mLDP, and Pseudowire support
- 7th Generation R Series architecture for seamless platform migration and investment protection
- Arista EOS® for consistent, programmable network management across the Arista portfolio

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 48 x 1/10GbE RJ45 ports
- 4 x 100GbE QSFP uplink ports
- Switching throughput: up to 2 Tbps
- Deep Buffer Virtual Output Queueing (VOQ) architecture
- FlexRouteâ„¢ engine: supports 2.5M+ routes
- Enhanced encryption: MACsec, IPsec, VXLANsec (TunnelSecâ„¢)
- Synchronous Ethernet and IEEE 1588 precision timing
- Airflow: Rear to Front (port-side exhaust)
- Power supply: 2 x AC (redundant)
- Form factor: 1RU
- Operating system: Arista EOS®

FAQs

Q: What makes the Arista DCS-7020R4M-48TX-4QC-R suitable for data centre leaf deployments?
A: The 7020R4 Series is engineered for leaf-spine topologies with non-blocking 2 Tbps throughput, deep buffer VOQ architecture, and EVPN-VXLAN support. Its 48x10GbE RJ45 downlinks and 4x100GbE QSFP uplinks provide the density and speed required for modern data centre fabrics.

Q: What encryption capabilities does the DCS-7020R4M-48TX-4QC-R support?
A: It features Arista TunnelSec™ wire-speed encryption at both Layer 2 and Layer 3, supporting MACsec, IPsec, and VXLANsec. This allows encrypted tunnels without sacrificing throughput — critical for service provider and multi-tenant environments requiring data-in-transit security.

Q: Does this switch support MPLS and Segment Routing?
A: Yes. The 7020R4 supports a full suite of tunnelling protocols including MPLS, Segment Routing (SR), LDP, RSVP, VPLS, mLDP, and Pseudowires, as well as IPv4/IPv6 VPNs and 6PE/6VPE — making it well suited to service provider and enterprise WAN edge deployments.

Q: Can I purchase the Arista DCS-7020R4M-48TX-4QC-R in Australia?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller offering the Arista 7020R4 Series with expert pre-sales support. Contact the team to discuss availability, lead times, and volume pricing.

Q: What operating system does this switch run?
A: The DCS-7020R4M-48TX-4QC-R runs Arista EOS® (Extensible Operating System), which provides comprehensive streaming telemetry, Inband Network Telemetry, programmable pipeline features, and a consistent CLI across all Arista platforms.

Q: Is this switch suitable for high-performance computing or Big Data environments?
A: Yes. The 7020R4's deep buffer architecture is specifically designed to handle bursty workloads common in HPC, Big Data analytics, and Media & Entertainment storage environments. The VOQ architecture minimises head-of-line blocking and ensures fair bandwidth distribution across all ports.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
