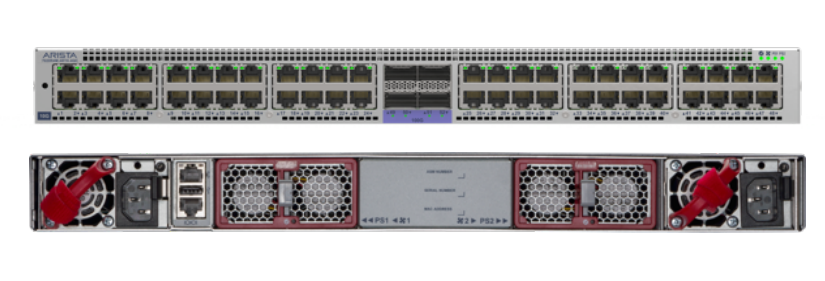

• A sleek silver arista dcs-7020r4-48tx-4qc-r 48-port 10gbe switch router with ethernet ports and rear ventilation grilles
1 1

Arista

Arista DCS-7020R4-48TX-4QC-R | 7020R4 48-Port 10GbE RJ45 Switch Router, 4x100G QSFP

Arista DCS-7020R4-48TX-4QC-R | 7020R4 48-Port 10GbE RJ45 Switch Router, 4x100G QSFP

DCS-7020R4-48TX-4QC-R

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Arista 7020R4 Series Switch Router delivers 48x10GbE RJ45 ports and 4x100GbE QSFP uplinks in a compact 1RU form factor, purpose-built for data centre leaf, service provider access, and high-performance edge deployments. Powered by Arista's 7th Generation R Series architecture with deep buffer Virtual Output Queueing (VOQ), the DCS-7020R4-48TX-4QC-R eliminates head-of-line blocking for lossless forwarding and scales to over 2.5 million routes via the FlexRoute engine — making it ideal for internet peering, broadcast media, and large-scale campus aggregation. Dual AC power supplies and rear-to-front airflow support hot-aisle/cold-aisle data centre deployments.

Running Arista EOS, this switch router supports MPLS, Segment Routing, EVPN-VXLAN, IPv4/IPv6 VPNs, VPLS, IEEE 1588 PTP, and TunnelSec wire-speed encryption at both Layer 2 and Layer 3. Rich streaming telemetry, Accelerated sFlow, and full CloudVision integration provide real-time visibility and automation-ready operations. Contact iptrading.com.au — your local source for enterprise-grade networking solutions.

Features

- 7th Generation R Series architecture for seamless migration and investment protection
- FlexRouteâ„¢ engine scales to over 2.5M routes for full internet table support
- Deep buffer VOQ architecture eliminates head-of-line (HOL) blocking for lossless forwarding
- TunnelSecâ„¢ wire-speed encryption at Layer 2 and Layer 3
- MPLS, Segment Routing, EVPN-VXLAN, VPLS, LDP, RSVP, and GRE tunnelling support
- IPv4 VPNs (RFC 4364), 6PE/6VPE, L2/L3 EVPN, EVPN-VPWS, EVPN Multicast, mLDP, Pseudowires
- MLAG active/active Layer 2 topology support
- Layer 3 ECMP for high-radix spine-leaf topologies
- IEEE 1588 PTP and Synchronous Ethernet for precision timing
- Programmable flexible pipeline with Inband Network Telemetry (INT)
- Comprehensive streaming telemetry and Accelerated sFlow for real-time monitoring
- Full Arista EOS feature set with CloudVision integration for automation and analytics
- Dual redundant AC power supplies for high availability
- Rear-to-front airflow for hot-aisle data centre deployments

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 48 x 10GbE RJ45 (1G/10G) downlink ports
- 4 x 100GbE QSFP uplink ports
- Total port count: 52
- Switching throughput: up to 2 Tbps
- Architecture: Deep Buffer Virtual Output Queueing (VOQ)
- FlexRoute engine: scales to 2.5M+ routes
- CPU: x86-based
- Operating system: Arista EOS
- Airflow: Rear to Front (port-side exhaust)
- Power supplies: 2 x AC (redundant)
- Form factor: 1RU

FAQs

Q: What is the DCS-7020R4-48TX-4QC-R designed for?
A: This switch router is purpose-built for data centre leaf, service provider access, internet peering, broadcast media, and research network edge applications. Its deep buffer VOQ architecture and FlexRoute engine make it well suited to environments requiring high route scale and lossless forwarding under bursty traffic conditions.

Q: How many routes can the 7020R4 support?
A: The FlexRouteâ„¢ engine on the 7020R4 scales to over 2.5 million routes, making it capable of handling full internet route tables in service provider and large enterprise peering scenarios.

Q: Does the 7020R4 support EVPN and MPLS?
A: Yes. The DCS-7020R4-48TX-4QC-R supports a comprehensive set of overlay and tunnelling technologies including MPLS, Segment Routing (SR), EVPN-VXLAN, EVPN-VPWS, EVPN Multicast, VPLS, LDP, RSVP, GRE, and IPv4/IPv6 VPNs (6PE/6VPE), all running under Arista EOS.

Q: What does 'rear to front airflow' mean for data centre installation?
A: Rear-to-front airflow (also known as port-side exhaust) means air is drawn in from the rear of the chassis and expelled through the front port-side. This is designed for hot-aisle containment setups where the front of the rack faces a cold aisle — check your rack airflow design before ordering to ensure compatibility.

Q: Does this switch support precision timing protocols?
A: Yes. The 7020R4 supports Synchronous Ethernet and IEEE 1588 Precision Time Protocol (PTP), making it suitable for latency-sensitive environments such as broadcast media, financial trading infrastructure, and visual effects production networks.

Q: Can I purchase the Arista DCS-7020R4-48TX-4QC-R in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller stocking enterprise-grade Arista networking equipment. Contact our team for pricing, availability, lead times, and pre-sales technical advice tailored to your deployment requirements.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
