Arista DCS-7010TX-48-DC-R | 7010TX 48-Port Gigabit Switch, 4x SFP25, Dual DC, Rear-Front Airflow
Arista DCS-7010TX-48-DC-R | 7010TX 48-Port Gigabit Switch, 4x SFP25, Dual DC, Rear-Front Airflow
Authorised Arista Partner
SKU:DCS-7010TX-48-DC-R
Stock Status: Enquire
Couldn't load pickup availability
Description
Description

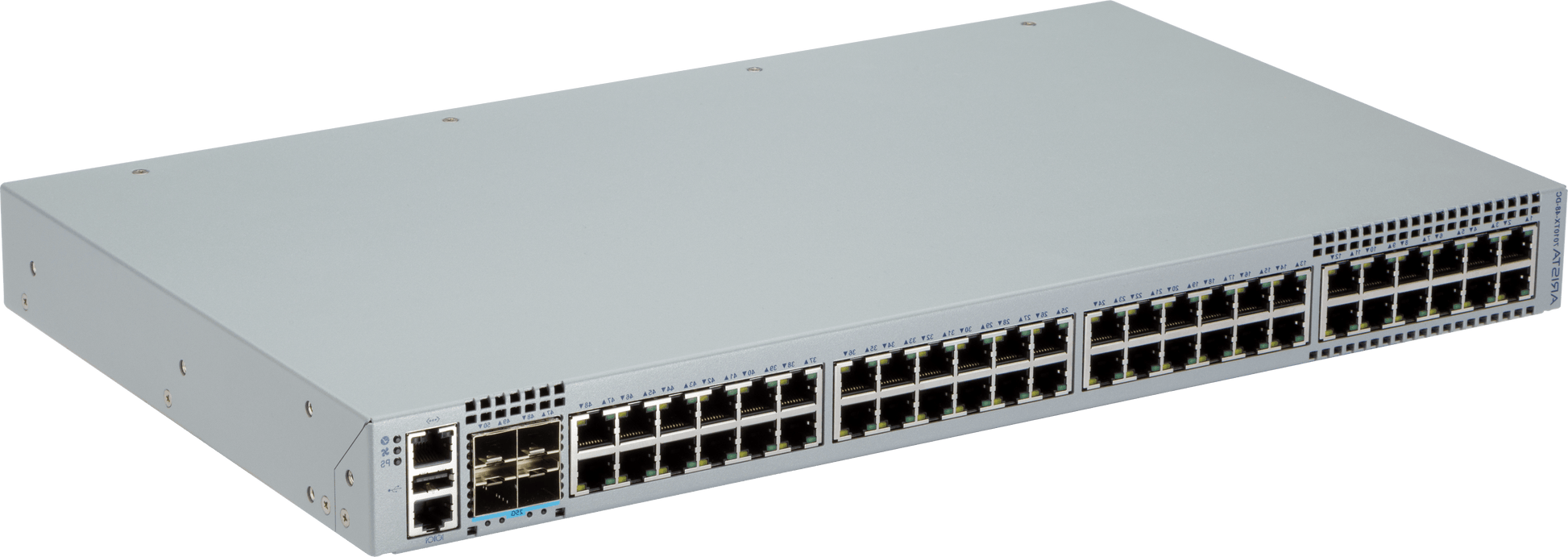

The Arista DCS-7010TX-48-DC-R is a 48-port Gigabit Ethernet data centre switch from the 7010TX family, built for top-of-rack leaf, campus access and out-of-band management roles. It provides 48 x 10/100/1000 RJ45 ports plus 4 x SFP25 uplinks that support 10GbE and 25GbE, in a compact 1U half-depth chassis. This variant is configured with dual DC power supplies and rear-to-front airflow for DC-powered facilities and hot-aisle or cold-aisle layouts that require it.
Redundant power supplies and a hot-swappable fan module help maintain availability, and the fan module is field-reversible if your airflow requirements change. The switch runs Arista EOS and supports 2-post and 4-post rack mounting, with efficient power supplies and low power consumption suited to dense deployments.
Features
Features
- Layer 2 and Layer 3 forwarding for top-of-rack leaf, campus access or out-of-band management roles
- Dual redundant DC power supplies for resilient DC-powered deployments
- Hot-swappable fan module with field-reversible airflow direction
- 2-post and 4-post rack mounting options
- Over 90% efficient power supplies
- Runs Arista EOS
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 48 x 10/100/1000Mb RJ45 ports
- 4 x SFP25 uplink ports (support 10GbE and 25GbE)
- 1 x 10/100/1000 out-of-band management port
- Dual redundant DC power supplies (DC terminal inputs)
- Rear-to-front airflow (-R), fan module is field-reversible
- Redundant, hot-swappable fan module
- 1U, half-depth form factor
- Weight approx. 3.9 kg (8.6 lb)
- Low power consumption, approx. 0.3 W/Gbps
FAQs
Q: What power does the DCS-7010TX-48-DC-R use?
A: This variant uses dual redundant DC power supplies with DC terminal inputs. The 7010TX family also offers AC power options under separate SKUs.
Q: What is the airflow direction on this model?
A: The -R suffix indicates rear-to-front airflow. The fan module is field-reversible, so the airflow direction can be changed to suit your rack layout.
Q: What uplink options does this switch provide?
A: It has 4 x SFP25 uplink ports that support both 10GbE and 25GbE connectivity, in addition to the 48 x 10/100/1000 RJ45 access ports.
Q: Is this switch suitable for Layer 3 deployments?
A: Yes. It supports Layer 2 and Layer 3 forwarding and runs Arista EOS, making it suitable for leaf, campus access and out-of-band management roles.
Q: What rack space does it need?
A: It is a 1U, half-depth switch with 2-post and 4-post mounting options, which makes it a good fit for space-constrained racks.
Q: Are the fans and power supplies hot-swappable?
A: The fan module is redundant and hot-swappable, and the switch includes dual redundant power supplies for continued operation if one supply fails.
