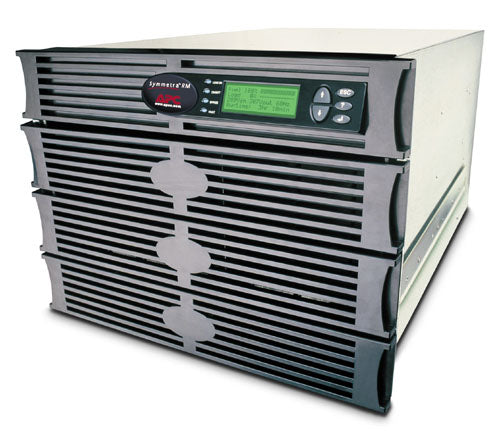

• APC Symmetra RM 4kVA black silver rack server with Dynamix LCD
1 1

APC

APC SYH4K6RMI | Symmetra RM Rack UPS, 4kVA Scalable to 6kVA, N+1, Hard-Wire

APC SYH4K6RMI | Symmetra RM Rack UPS, 4kVA Scalable to 6kVA, N+1, Hard-Wire

Authorised APC Partner

SYH4K6RMI

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Symmetra RM 4kVA rack UPS is a modular, double-conversion online power protection system delivering 4000VA/2800W, scalable to 6kVA/4200W as load grows. Configurable for N+1 internal redundancy, it uses a hard-wired 3-wire input for 220-240V installations and is well suited to computer rooms and voice and data networks.

Hot-swappable, user-replaceable battery and power modules keep maintenance simple, with two battery modules installed and two slots free for expansion. Output is provided through two IEC C19 and eight IEC C13 outlets, backed by internal automatic and manual bypass. Rack mounting brackets and support rails are supplied.

Features

- N+1 internal redundancy configurable with an extra power module
- Scalable from 4kVA to 6kVA to match growing loads
- Hot-swappable, user-replaceable battery and power modules
- Double conversion online protection for sensitive IT equipment
- Automatic internal bypass supplies utility power during overload or UPS fault
- Parallel battery and power module design improves availability
- Predictive failure and disconnected battery notification
- Automatic restart of loads after UPS shutdown
- Resettable circuit breakers and power conditioning

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Output capacity: 4000VA / 2800W
- Scalable to 6000VA / 4200W
- Topology: double conversion online, sine wave output
- Nominal output voltage: 230V, configurable for 220, 230 or 240V
- Output voltage distortion: less than 5% at full load
- Output outlets: (2) IEC C19 and (8) IEC C13
- Input connection: hard-wire 3-wire, 230V nominal, 50/60Hz
- Input voltage range: 155 - 276V
- Bypass: internal, automatic and manual
- Battery modules: 2 included, 2 slots empty
- Battery type: maintenance-free sealed lead-acid
- Typical recharge time: 4 hours
- Replacement battery: SYBT2
- Communications port: DB-9
- Heat dissipation: 1181 BTU/hr
- Included: rack mounting brackets, support rails, software CD, user manual

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Can the SYH4K6RMI be expanded beyond 4kVA?
A: Yes. It is scalable to 6kVA/4200W by adding power capacity, and it has two empty battery slots for additional battery modules.

Q: Does this model support N+1 redundancy?
A: Yes. It can be configured for N+1 internal redundancy by adding an extra power module.

Q: How is this UPS connected to mains power?
A: It uses a hard-wire 3-wire input for 220-240V supply, so it must be installed by a qualified electrician rather than plugged into a wall outlet.

Q: What outlets does it provide?
A: It provides two IEC C19 and eight IEC C13 outlets, all with battery backup.

Q: Are the batteries hot-swappable?
A: Yes. The battery modules are hot-swappable and user-replaceable. The replacement battery module is SYBT2.

Q: Is rack mounting hardware included?
A: Yes. Rack mounting brackets and support rails are supplied with the unit.
