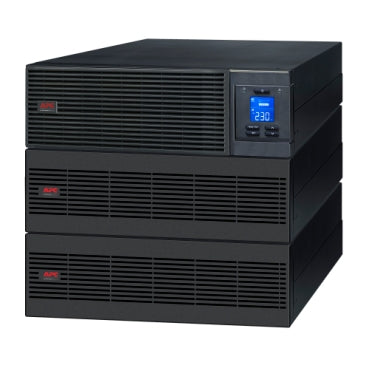

• APC SRV20KRILRK 20kVA UPS tower with black digital voltage display
1 1

APC

APC SRV20KRILRK | Easy UPS On-Line SRV 20kVA Rack UPS, 9U, Ext. Runtime, Rail Kit

APC SRV20KRILRK | Easy UPS On-Line SRV 20kVA Rack UPS, 9U, Ext. Runtime, Rail Kit

Authorised APC Partner

SRV20KRILRK

Stock Status: Enquire

$7,277.42 inc. GST
$6,615.84 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Easy UPS On-Line SRV SRV20KRILRK is a 20kVA, 20,000 W single-phase double-conversion on-line rack UPS in a 9U rackmount chassis, delivering pure sine wave output for critical IT loads. This variant includes a built-in extended runtime battery pack and a rail kit for rack installation, making it well suited to small data centres, computer rooms, telecoms and healthcare IT.

Hard wire 3-wire input and output connections, a front LCD display and built-in automatic and manual bypass keep the load protected during an internal UPS fault. An Intelligent Card Slot accepts an optional network management card, allowing the UPS to integrate with EcoStruxure IT or third-party centralised management platforms.

Features

- High operating efficiency in energy-saving ECO mode
- Built-in automatic and manual bypass keeps the load powered during an internal UPS fault
- Connects to EcoStruxure IT or third-party centralised management platforms via an optional network management card
- Extended runtime battery pack built in
- Rail kit included for rack installation

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- 20 kVA / 20,000 W rated power
- Double-conversion on-line topology, pure sine wave output
- 230 V AC output; 230 V / 415 V AC main input
- Hard wire 3-wire (1P+N+E) and 5-wire (3P+N+E) inputs
- Hard wire 3-wire (1P+N+E) output
- 9U rackmount form factor (rack/tower configuration)
- Battery voltage 120 V, built-in lead-acid, extended runtime
- Intelligent Card Slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l)
- LCD display
- Built-in automatic and manual bypass
- Includes 1 USB cable and rail kit

FAQs

Q: What type of UPS is the APC SRV20KRILRK?
A: It is a single-phase, double-conversion on-line UPS rated at 20kVA / 20,000 W with pure sine wave output, supplied in a 9U rackmount chassis.

Q: Does this model include a rail kit and extended runtime battery?
A: Yes. The SRV20KRILRK includes a rail kit for rack installation and a built-in extended runtime battery pack.

Q: How is the UPS connected to the mains and the load?
A: Input is hard wired and supports 3-wire (1P+N+E) or 5-wire (3P+N+E) connections. Output is hard wired 3-wire (1P+N+E) at 230 V, so a qualified electrician is required for installation.

Q: Can this UPS be managed over a network?
A: Yes. It has an Intelligent Card Slot that accepts an optional network management card (AP9544, SRVSMB001 or VGL9601l), enabling integration with EcoStruxure IT or third-party management platforms.

Q: Does it have a bypass for maintenance or faults?
A: Yes. It has built-in automatic and manual bypass, which keeps the connected load powered if the UPS experiences an internal fault.

Q: Can it be installed in a rack or as a tower?
A: It is a 9U rackmount design that supports rack or tower configuration, and the included rail kit simplifies rack mounting.
