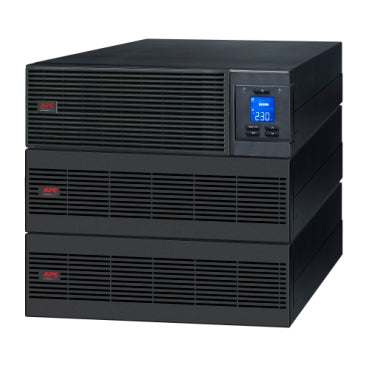

• APC SRV15KRILRK 15kVA rack mount UPS tower with voltage display
1 1

APC

APC SRV15KRILRK | Easy UPS On-Line SRV 15kVA/15kW 9U Rack UPS, 2 Battery Packs

APC SRV15KRILRK | Easy UPS On-Line SRV 15kVA/15kW 9U Rack UPS, 2 Battery Packs

Authorised APC Partner

SRV15KRILRK

Stock Status: Enquire

$5,983.83 inc. GST
$5,439.85 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Easy UPS On-Line SRV 15kVA/15kW rackmount UPS delivers double-conversion on-line, pure sine wave power in a 9U chassis. This SKU ships with a rail kit and 2 external battery packs, making it a ready-to-deploy option for small data centres, computer rooms, network storage, telecommunications and healthcare IT environments. A hard wire 3-wire (1P+N+E) output and 230 V nominal output (220/240 V selectable) suit fixed installations.

An easy-to-read LCD interface provides detailed status information, and an Intelligent Card Slot supports network management options. Built-in automatic and manual bypass keeps the load powered during an internal fault, while ECO mode improves operating efficiency. Runtime can be extended by adding up to 10 external battery packs (SRV120RLBP2-9A).

Features

- 15kVA/15kW double-conversion on-line pure sine wave 9U rackmount UPS
- High operating efficiency in energy-saving ECO mode
- Add up to 10 external battery packs (SRV120RLBP2-9A) for extended runtime
- Easy-to-read LCD interface for detailed UPS status information
- Built-in automatic and manual bypass keeps the load powered during an internal fault
- Supplied with rail kit and 2 external battery packs
- Suited to small data centres, manufacturing facilities, computer rooms, network storage, telecommunications and healthcare IT

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Rated power: 15000 W / 15000 VA
- Topology: double-conversion on-line, pure sine wave
- Form factor: 9U rackmount, horizontal mounting
- Main input voltage: 230 V AC, 415 V AC
- Input connectors: hard wire 3-wire (1P+N+E) and hard wire 5-wire (3P+N+E)
- Input voltage limits: 110-300 V at half load, 176-300 V at full load
- Main output voltage: 230 V (220 V / 240 V selectable)
- Output connection: hard wire 3-wire (1P+N+E)
- Frequency: 50/60 Hz +/- 3 Hz sync to mains
- Battery type: lead-acid, +/- 120 V
- Battery recharge time: 6 h
- Battery charger power: 2340 W rated
- Redundant: No
- Interface: LCD, Intelligent Card Slot, USB, RS-232 configuration port
- Dimensions (H x W x D): 393 x 438 x 690 mm
- Net weight: 157 kg
- Colour: Black (RAL 7010)
- Included: 2 external battery packs, rail kit, 1 USB cable, 1 RS-232 configuration cable, 3 rack mounting brackets, 3 stabilisation/wall mounting feet, 6 jumper bars, 1 battery cable, user manual

FAQs

Q: What is the power rating of the SRV15KRILRK?
A: It is rated at 15 kVA / 15 kW (15000 VA / 15000 W) as a single-phase double-conversion on-line UPS with pure sine wave output.

Q: Does this UPS use plug-in outlets?
A: No. The output connection is hard wire 3-wire (1P+N+E), so it needs to be hard wired by a qualified electrician, for example to a distribution board or PDU.

Q: What is included with this SKU?
A: It ships with a rail kit and 2 external battery packs, along with a USB cable, RS-232 configuration cable, 3 rack mounting brackets, 3 stabilisation/wall mounting feet, 6 jumper bars, a battery cable and a user manual.

Q: Can the runtime be extended?
A: Yes. The UPS supports up to 10 external battery packs (SRV120RLBP2-9A) for extended runtime.

Q: How much rack space does it need?
A: It is a 9U rackmount unit, 393 mm high, 438 mm wide and 690 mm deep, and weighs 157 kg, so confirm the rack's load rating and depth before installation.

Q: Does it support network management?
A: It has an Intelligent Card Slot, an LCD interface, and USB and RS-232 ports for monitoring and configuration.
