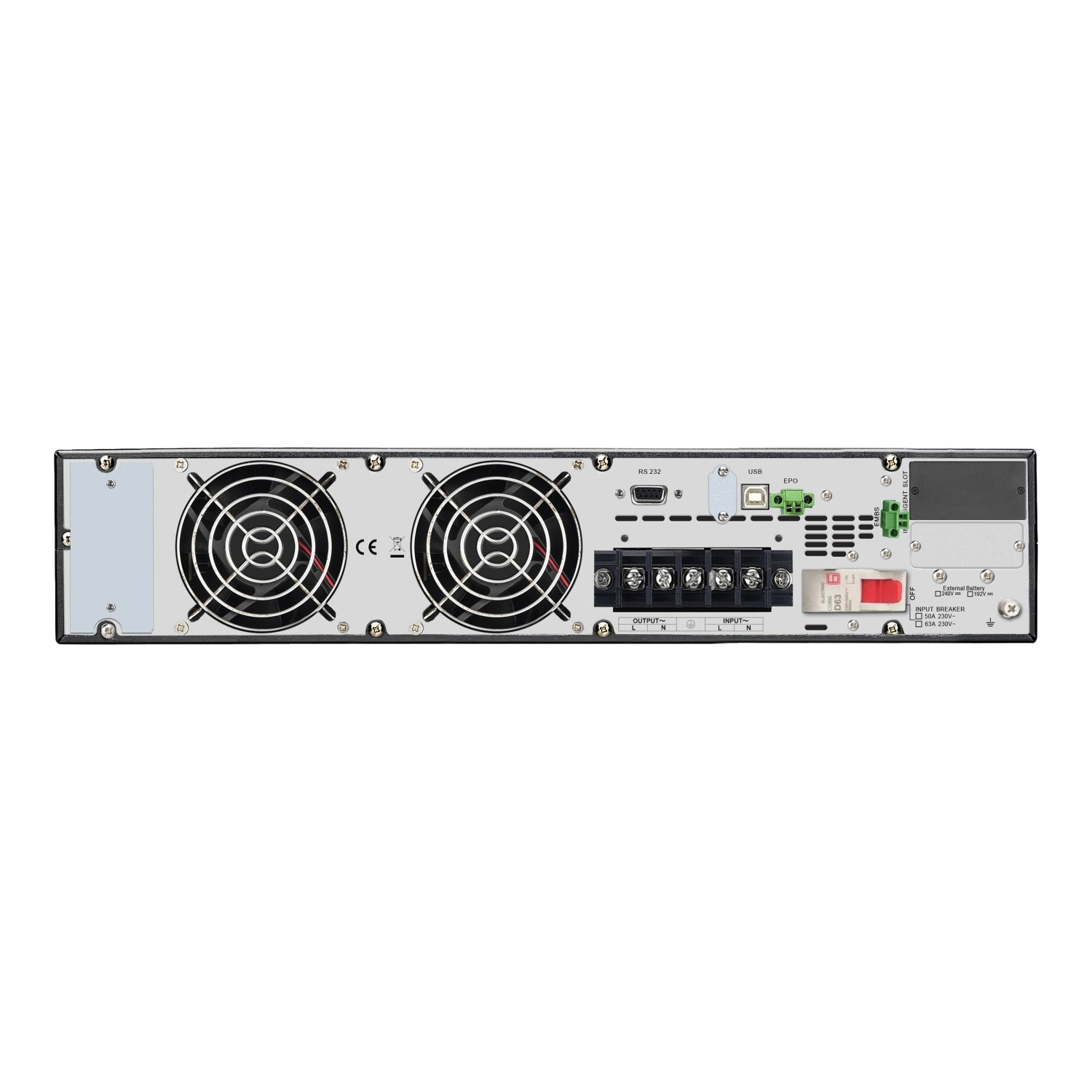

  • Apc srv10krilrk 10 kva black and silver double-conversion online ups back side with fans usb ports and emergency switch

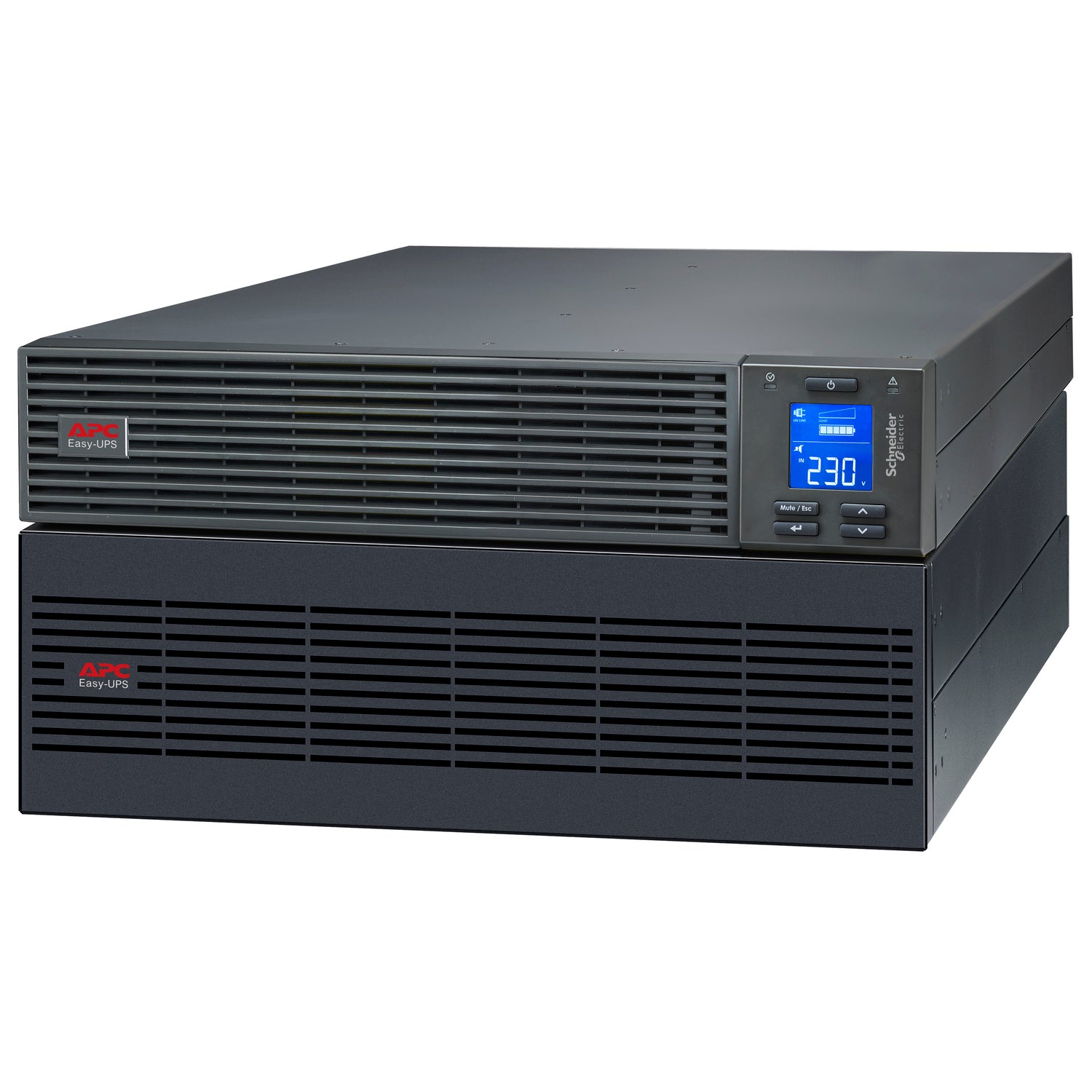

  • APC SRV10KRILRK 10kVA online UPS rack mount with rail kit and battery pack
1 3

APC

APC SRV10KRILRK | Easy UPS SRV 10kVA/10kW Online Rack UPS, 5U, Hard Wire

APC SRV10KRILRK | Easy UPS SRV 10kVA/10kW Online Rack UPS, 5U, Hard Wire

Authorised APC Partner

SRV10KRILRK

In stock:2

$5,745.63 inc. GST
$5,223.30 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Easy UPS On-Line SRV 10kVA/10kW rack-mount UPS delivers double-conversion online protection at 230V for servers, network equipment and critical racks. This SRV10KRILRK model is a 5U rackmount unit with hardwired input and output, supplied with an external battery pack and a rail kit for straightforward rack installation.

Pure sine wave output and zero transfer time isolate connected loads from utility power problems. An LCD interface with LED indicators, hot-swap batteries, ECO mode and automatic battery tests simplify day-to-day operation, while a SmartSlot, USB and serial ports and an EPO connector support monitoring and emergency shutdown. Runtime can be extended with additional external battery packs (SRV240RLBP-9A, sold separately).

Features

- Double-conversion online topology gives zero transfer time and isolation from utility power problems
- Pure sine wave output suitable for servers and network equipment
- ECO mode for energy-saving operation
- Runtime can be extended with up to 4 external battery packs (SRV240RLBP-9A, sold separately)
- Hot-swap batteries and automatic battery test
- LCD interface with LED indicators
- SmartSlot for an optional network management card
- EPO connector for emergency power off
- 5U rackmount supplied with an external battery pack and rail kit

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- UPS topology: Double-conversion (Online)
- Output power capacity: 10 kVA / 10000 W
- Waveform: Pure sine wave
- Nominal input and output voltage: 230 V
- Input operation voltage range: 110 - 300 V
- Output operation voltage range: 220 - 240 V
- Input frequency: 40/70 Hz
- Output frequency: 50/60 Hz
- Crest factor: 3:1
- AC outlet type: Hard Wire 3-wire (1PH + N + G)
- Form factor: Rackmount, 5U
- Display: LCD
- Interfaces: SmartSlot, USB, serial, EPO connector
- Network management card included: No
- Included: External battery pack, rail kit, USB cable
- Dimensions (H x W x D): 220 x 438 x 615 mm
- Weight: 78 kg
- Operating temperature: 0 to 40 C
- Operating relative humidity: 0 - 95 %
- Operating altitude: 0 - 3000 m
- Certifications: CE, IEC 62040-1-1, IEC 62040-1-2, REACH, RoHS

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Does the SRV10KRILRK include a rail kit and battery pack?
A: Yes. This model is supplied with an external battery pack and a rail kit for rack mounting.

Q: How is the SRV10KRILRK connected to power and to the load?
A: It uses hardwired input and output (3-wire 1PH + N + G) rather than plug outlets, so it must be wired in by a qualified electrician.

Q: Can the runtime be extended?
A: Yes. Up to 4 external battery packs (SRV240RLBP-9A, sold separately) can be added to extend runtime.

Q: Does it include a network management card?
A: No. A management card is not included, but the SmartSlot accepts an optional network management card. USB and serial ports are also provided.

Q: What type of UPS is this?
A: It is a double-conversion online UPS with pure sine wave output and zero transfer time, rated 10 kVA / 10000 W at 230 V.

Q: How much rack space does it need?
A: It is a 5U rackmount unit measuring 220 x 438 x 615 mm and weighing 78 kg, so ensure the rack and rails can support the load.
