• APC SRTL1500RM4UXLI-NC Smart-UPS On-Line 1500VA lithium-ion tower with display
1 1

APC

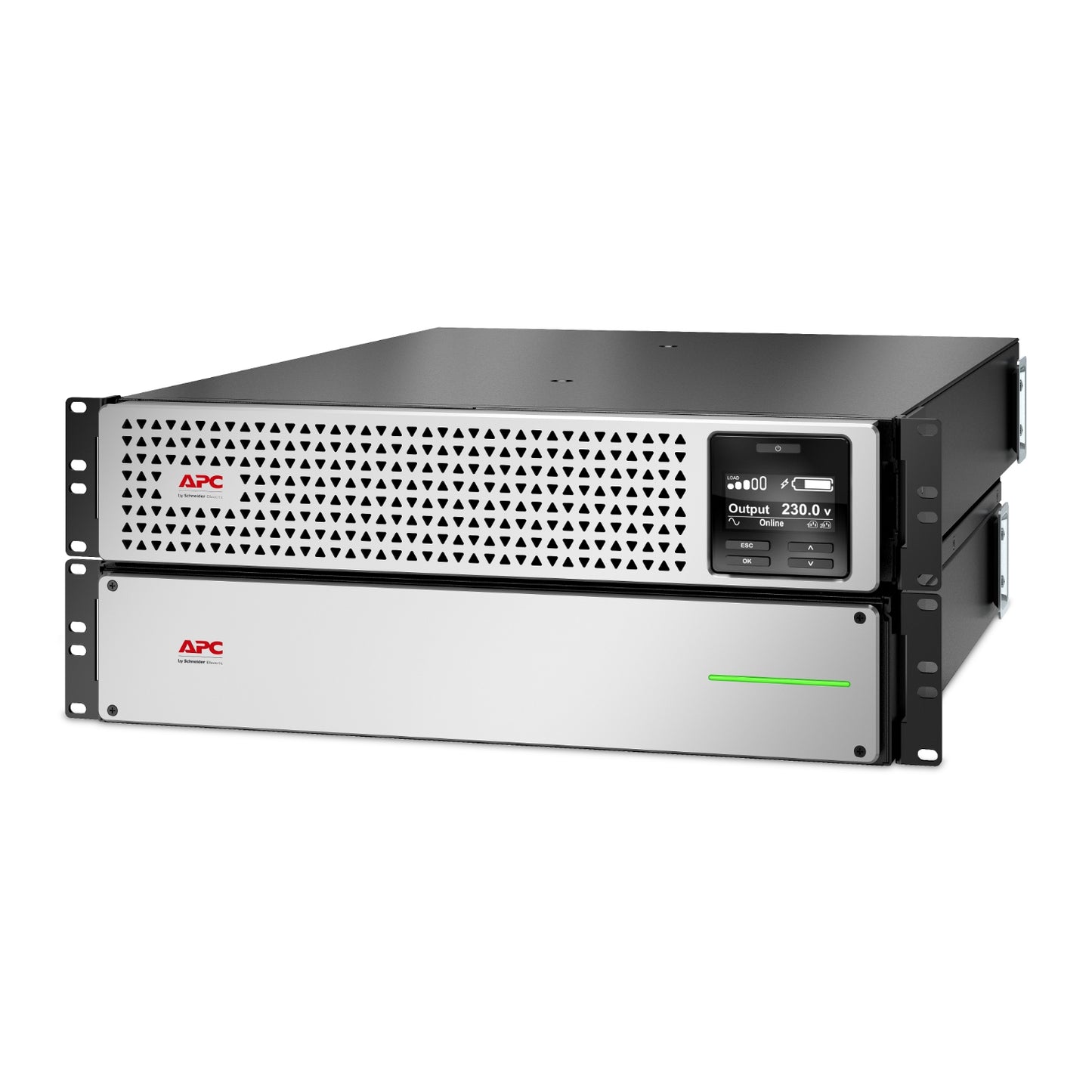

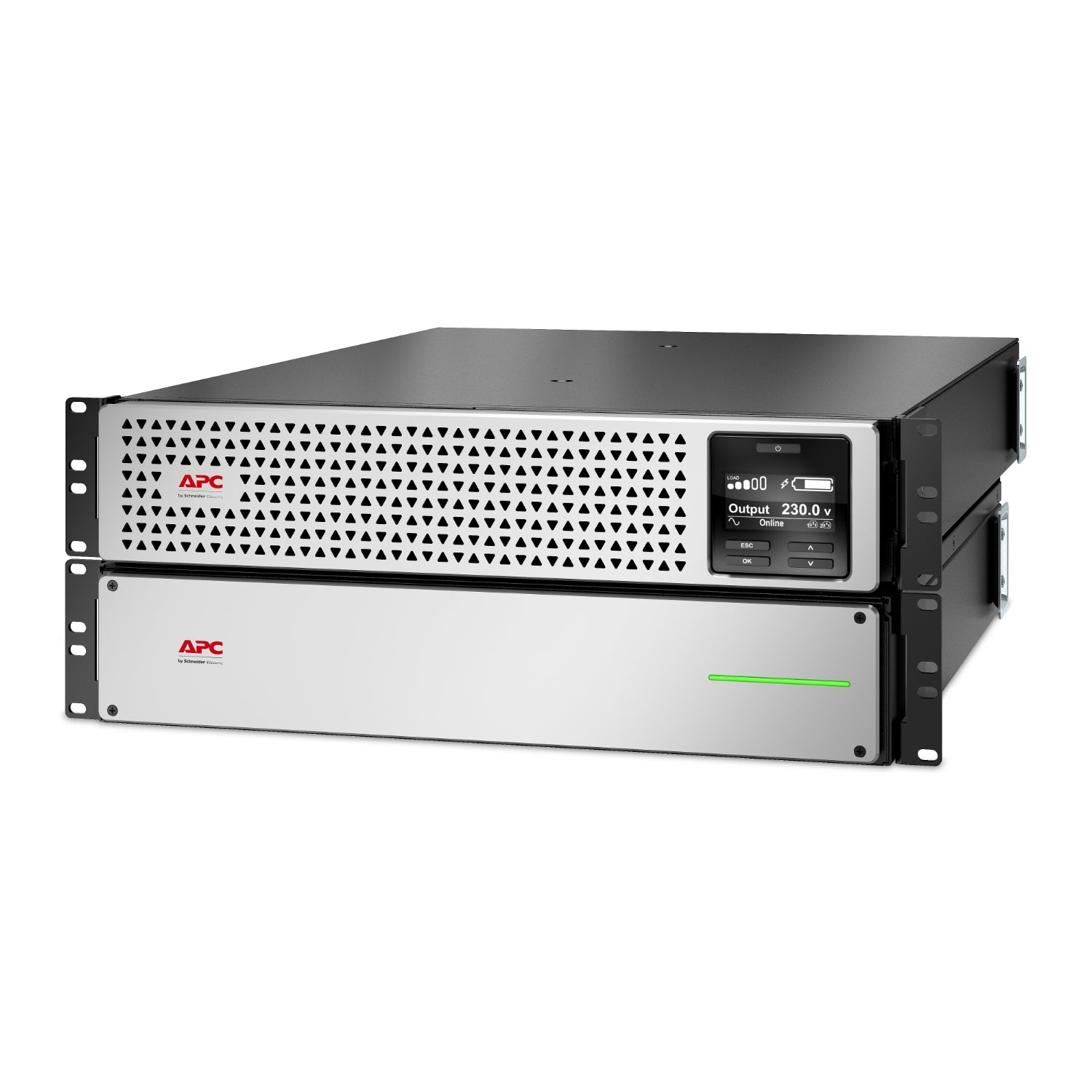

APC SRTL1500RM4UXLI-NC | Smart-UPS On-Line Lithium-ion Rack UPS, 1500VA, 4U, Network Card

APC SRTL1500RM4UXLI-NC | Smart-UPS On-Line Lithium-ion Rack UPS, 1500VA, 4U, Network Card

Authorised APC Partner

SRTL1500RM4UXLI-NC

Stock Status: Enquire

$9,246.39 inc. GST
$8,405.81 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

This Smart-UPS On-Line SRT lithium-ion rack UPS delivers 1500VA / 1350W of clean, pure sine wave power through double-conversion on-line topology. The 4U rack or tower convertible chassis includes a network management card and an extended runtime battery design, making it well suited to protecting servers, network switches and storage in server rooms and comms cabinets.

Eight C13 outlets allow multiple devices to be connected directly, with switched outlet groups for controlled shutdown and restart. Built-in automatic and manual bypass, a lithium-ion battery rated for up to 10 years of life and a supplied rail kit simplify deployment and reduce long-term maintenance.

Features

- Double-conversion on-line topology with pure sine wave output
- Built-in automatic and manual bypass
- Rack/tower convertible form factor
- Switched outlet groups for controlled shutdown and restart
- Lithium-ion battery with up to 10 years of life, roughly triple the life expectancy of lead-acid
- Extended runtime battery in a compact footprint, about half the size and weight of comparable UPSs
- Network management card included for remote monitoring
- Rail kit included for rack mounting

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Capacity: 1500VA / 1350W
- Topology: Double-conversion on-line
- Waveform: Pure sine wave
- Input voltage range: 160 to 275 V, 40/70 Hz input frequency
- Output voltage: 220 to 230 V, 50/60 Hz
- Battery: Lithium-ion, 48 V
- Typical backup time: 93 min at full load, 177 min at half load
- Outlets: 8 x C13
- Input connection: C14 coupler, detachable 1.83 m power cord
- Interfaces: 2 x USB 2.0, 1 x Ethernet RJ-45, SmartSlot
- Network management card included
- Form factor: 4U rack or tower convertible
- Dimensions (H x W x D): 171 x 432 x 590 mm
- Weight: 40.7 kg
- Display: LCD with button controls
- Surge energy rating: 340 J
- Noise level: 50 dB
- Operating temperature: 0 to 40 C
- Ingress protection: IP20
- Includes rail kit

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What is the power capacity of this UPS?
A: It is rated at 1500VA / 1350W with pure sine wave output from a double-conversion on-line design.

Q: How long will it run on battery?
A: Typical backup time is 93 minutes at full load and 177 minutes at half load.

Q: Does it include a network management card?
A: Yes. The -NC model includes a network management card, and the unit also provides a SmartSlot, USB and Ethernet interfaces.

Q: How many devices can I connect directly?
A: It has 8 x C13 outlets arranged in switched outlet groups. C13 outlets suit standard IEC power cords commonly used by servers and network equipment.

Q: Can it be installed in a rack or used as a tower?
A: It is a 4U rack and tower convertible unit. A rail kit is included for rack installation.

Q: What are the advantages of the lithium-ion battery?
A: The lithium-ion battery offers up to 10 years of battery life, roughly triple that of lead-acid, and delivers extended runtime in a compact, lighter package.

APC Replacement Battery Finder

How Do I Choose the Right APC UPS Battery?

Finding the correct replacement battery for your APC UPS can be confusing Our APC Battery Finder makes it easy. Simply enter your UPS model to get the exact battery match, the correct quantity required, and guidance if your unit is end-of-life with upgrade options.

Designed for fast, accurate results, this tool helps Australian businesses & IT teams avoid downtime and order the right APC UPS battery the first time.

Find My APC Battery
