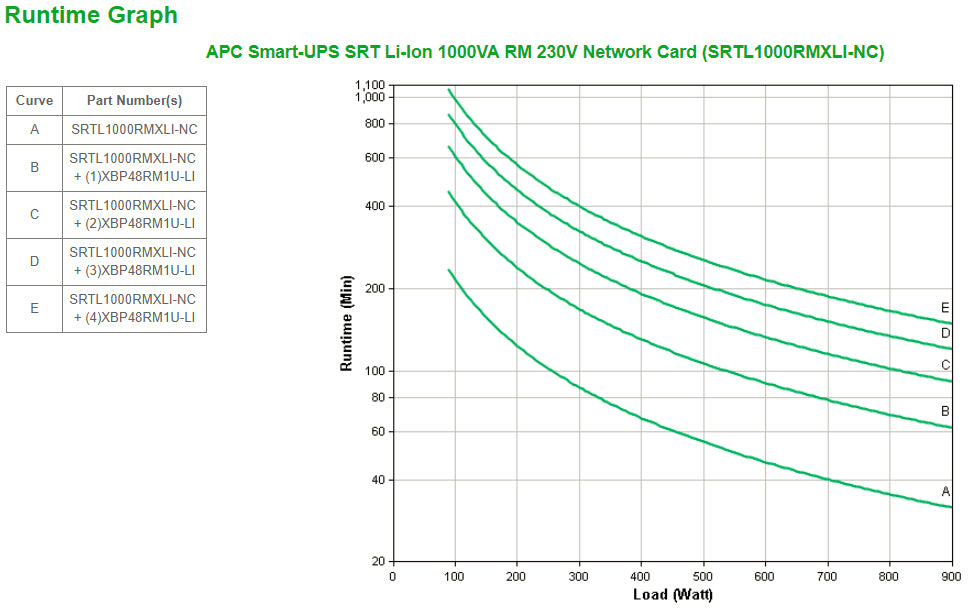

• Green line graph of runtime vs load for APC Smart-UPS SRT Li-ion 1000VA RM 230V
1 1

APC

APC SRTL1000RMXLI-NC | Smart-UPS SRT Online Rack UPS, 1000VA, 900W, Li-ion, Network Card

APC SRTL1000RMXLI-NC | Smart-UPS SRT Online Rack UPS, 1000VA, 900W, Li-ion, Network Card

Authorised APC Partner

SRTL1000RMXLI-NC

Stock Status: Enquire

$6,237.72 inc. GST
$5,670.65 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Smart-UPS SRT 1000VA/900W double-conversion online UPS delivers pure sine wave output from a 3U rackmount chassis with lithium-ion batteries. This SKU ships with a preinstalled Network Management Card for remote monitoring and management, making it well suited to server rooms, network cabinets and edge sites that need continuous, clean power.

Output is provided through eight IEC C13 outlets, with a C14 input, built-in bypass and an LCD for status and configuration. Hot-swappable lithium-ion batteries offer a longer service life than lead-acid, the runtime can be extended with external battery packs, and the chassis is rack/tower convertible with a rail kit included.

Features

- Double-conversion online topology for continuous, clean power
- Lithium-ion batteries with about twice the service life of lead-acid and lower weight
- Hot-swappable batteries for service without shutting down the load
- Preinstalled Network Management Card for remote monitoring
- Voltage and frequency regulation without drawing on battery power
- Automatic battery self-test
- Surge protection and EMI/RFI filtering
- Extendable runtime with external battery packs
- LCD display for status and configuration
- Rack/tower convertible, rail kit included

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Output capacity: 1000VA / 900W
- Topology: Double-conversion (online)
- Waveform: Pure sine wave
- Nominal input voltage: 230V, input frequency 40-70Hz auto-sensing
- Nominal output voltage: 230V, frequency 50/60Hz
- Output connections: 8 x IEC 320 C13
- Input connection: IEC 320 C14
- Battery: Lithium-ion, 48V nominal, hot-swappable
- Typical recharge time: 6 hours
- Surge energy rating: 340J
- Communication: USB, serial RJ-45, 10/100 Ethernet via network card
- Expansion: 1 x SmartSlot, extendable runtime
- Form factor: 3U rackmount (2U UPS plus 1U battery module), rack/tower convertible
- Display: LCD
- Emergency Power Off (EPO) supported
- Dimensions (H x W x D): 128 x 432 x 590 mm
- Weight: 25.7 kg
- Operating temperature: 0 to 40 C

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Is a network management card included with this UPS?
A: Yes. The SRTL1000RMXLI-NC includes a preinstalled Network Management Card, providing 10/100 Ethernet for remote monitoring and management.

Q: What topology and output waveform does this UPS use?
A: It is a double-conversion online UPS with a pure sine wave output, with built-in bypass, suited to sensitive IT equipment.

Q: How many outlets does it provide and what type are they?
A: It provides eight IEC 320 C13 outlets and takes input through an IEC 320 C14 inlet.

Q: Can the runtime be extended?
A: Yes. Runtime can be extended with external battery packs, and the lithium-ion batteries are hot-swappable.

Q: What are the advantages of the lithium-ion battery?
A: Lithium-ion batteries offer about twice the service life of lead-acid, a lighter weight, and an expected battery life of 5 to 10 years.

Q: Can it be installed in a rack or used as a tower?
A: Yes. It is a 3U rackmount unit (2U UPS plus 1U battery module) that is rack/tower convertible, with a rail kit included.
