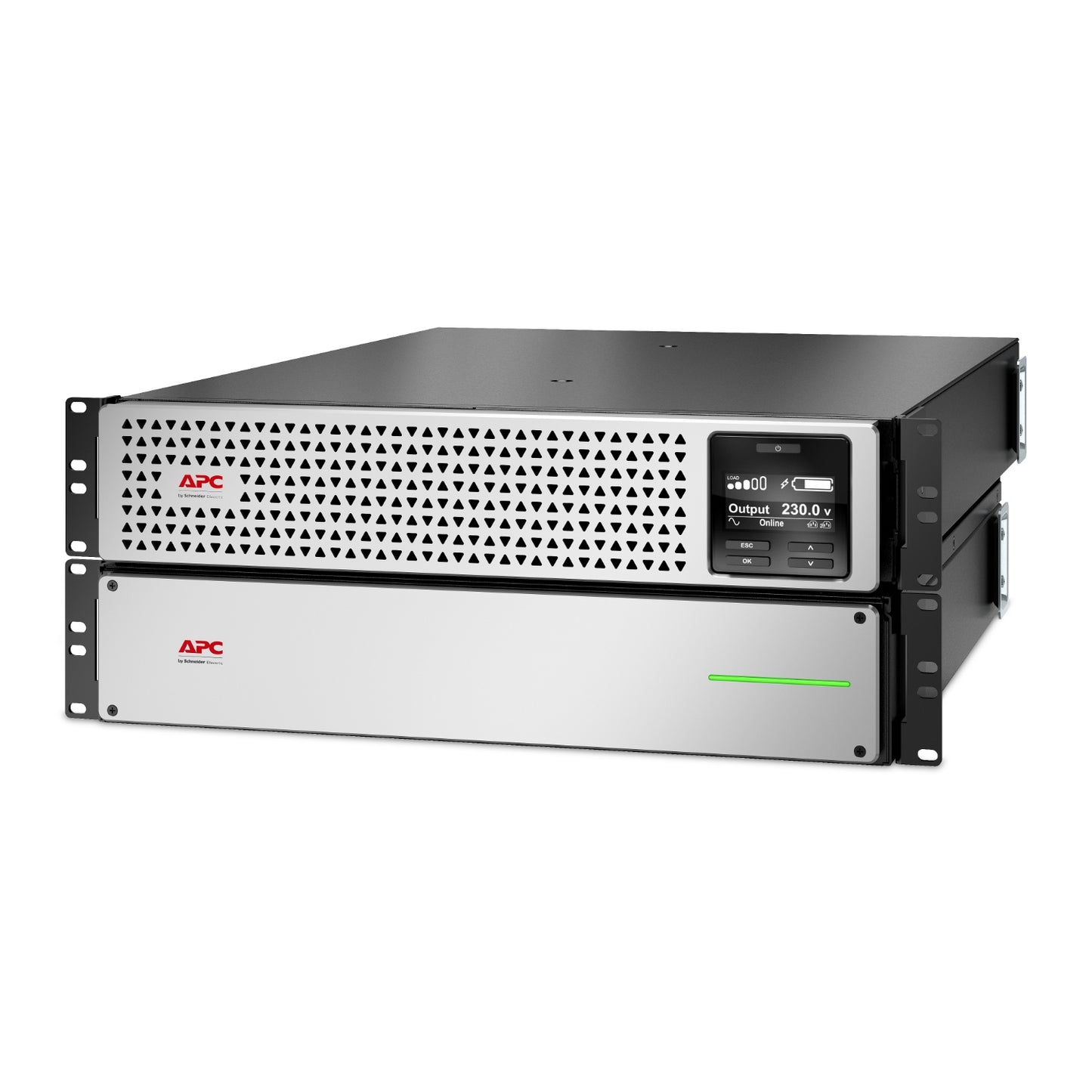

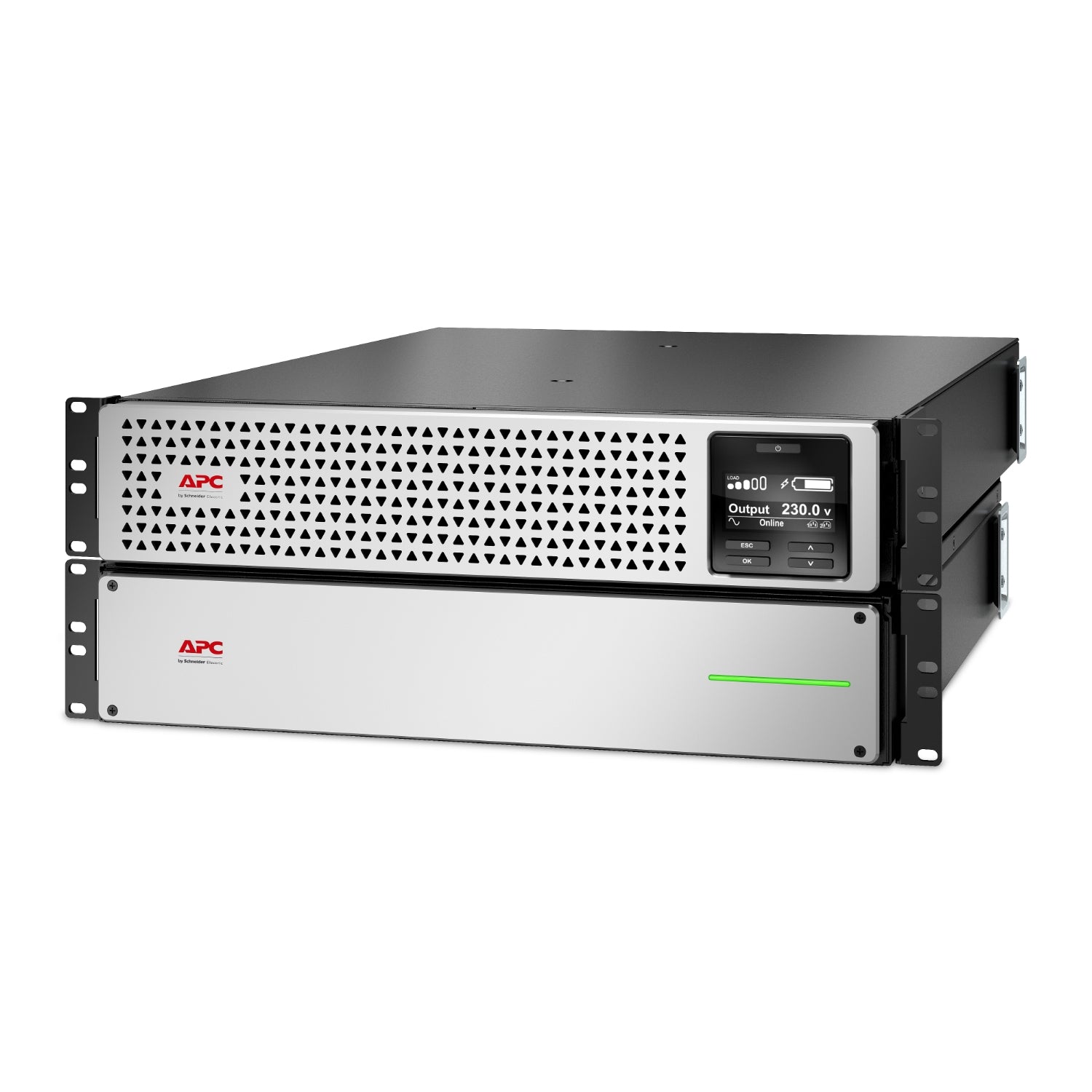

• APC SRTL1000RM4UXLI-NC Smart-UPS On-Line 1000VA tower with digital display and green LED
1 1

APC

APC SRTL1000RM4UXLI-NC | Smart-UPS On-Line Li-ion Rack UPS, 1000VA, 4U, Network Card

APC SRTL1000RM4UXLI-NC | Smart-UPS On-Line Li-ion Rack UPS, 1000VA, 4U, Network Card

Authorised APC Partner

SRTL1000RM4UXLI-NC

Stock Status: Enquire

$8,342.68 inc. GST
$7,584.25 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Smart-UPS On-Line SRTL 1000VA Li-ion 4U rack UPS delivers double-conversion on-line protection rated at 1000VA/900W, with a lithium-ion battery for long runtime. This SKU includes a pre-installed Network Management Card for remote monitoring, plus a rail kit for rack installation, making it a ready-to-deploy option for server rooms, comms cabinets and edge sites.

Pure sine wave output at 230V feeds eight IEC C13 outlets, with switched outlet groups for controlled load shedding and restart sequencing. The 4U chassis converts between rack and tower orientation, and runtime can be extended with external battery packs where longer autonomy is required.

Features

- Double-conversion on-line topology with pure sine wave output
- Lithium-ion battery with intelligent battery management system
- Rack/tower convertible 4U form factor
- Switched outlet groups for load shedding and sequenced start-up
- Runtime extendable with external battery packs
- Emergency Power Off (EPO) function
- Built-in automatic and manual bypass
- Flash-upgradeable firmware
- Pre-installed Network Management Card for remote monitoring

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Rated power: 1000VA / 900W
- Topology: Double-conversion on-line, pure sine wave output
- Battery type: Lithium-ion
- Runtime at 900W load: 1 h 54 min
- Nominal input and output voltage: 230V, input range 220-240V, 50/60Hz
- Input connection: IEC 60320 C14, 1.8 m cable
- Output connections: 8x IEC 60320 C13
- Form factor: 4U rack/tower convertible
- Dimensions (H x W x D): 8.5 x 43.2 x 56 cm
- Net weight: 13.7 kg
- Network Management Card pre-installed, SmartSlot available
- Rail kit included

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Is the Network Management Card included with this UPS?
A: Yes. This SKU ships with a Network Management Card pre-installed, allowing remote monitoring and management over the network without additional hardware.

Q: Is a rail kit supplied?
A: Yes, a rail kit is included for installing the 4U UPS into a standard rack.

Q: How many outlets does it have and what type?
A: It provides eight IEC 60320 C13 outlets, arranged in switched outlet groups. Input is via an IEC C14 inlet with a 1.8 m cable.

Q: What runtime can I expect?
A: At a full 900W load the UPS provides approximately 1 hour 54 minutes of runtime. Lighter loads extend this, and external battery packs can be added for longer autonomy.

Q: Can it be used as a tower UPS?
A: Yes. The 4U chassis is rack/tower convertible, so it can be mounted in a rack or stood upright on the floor.

Q: What advantage does the lithium-ion battery offer?
A: The lithium-ion battery pack provides extended runtime in a compact, lighter chassis, and is managed by an intelligent battery management system.
