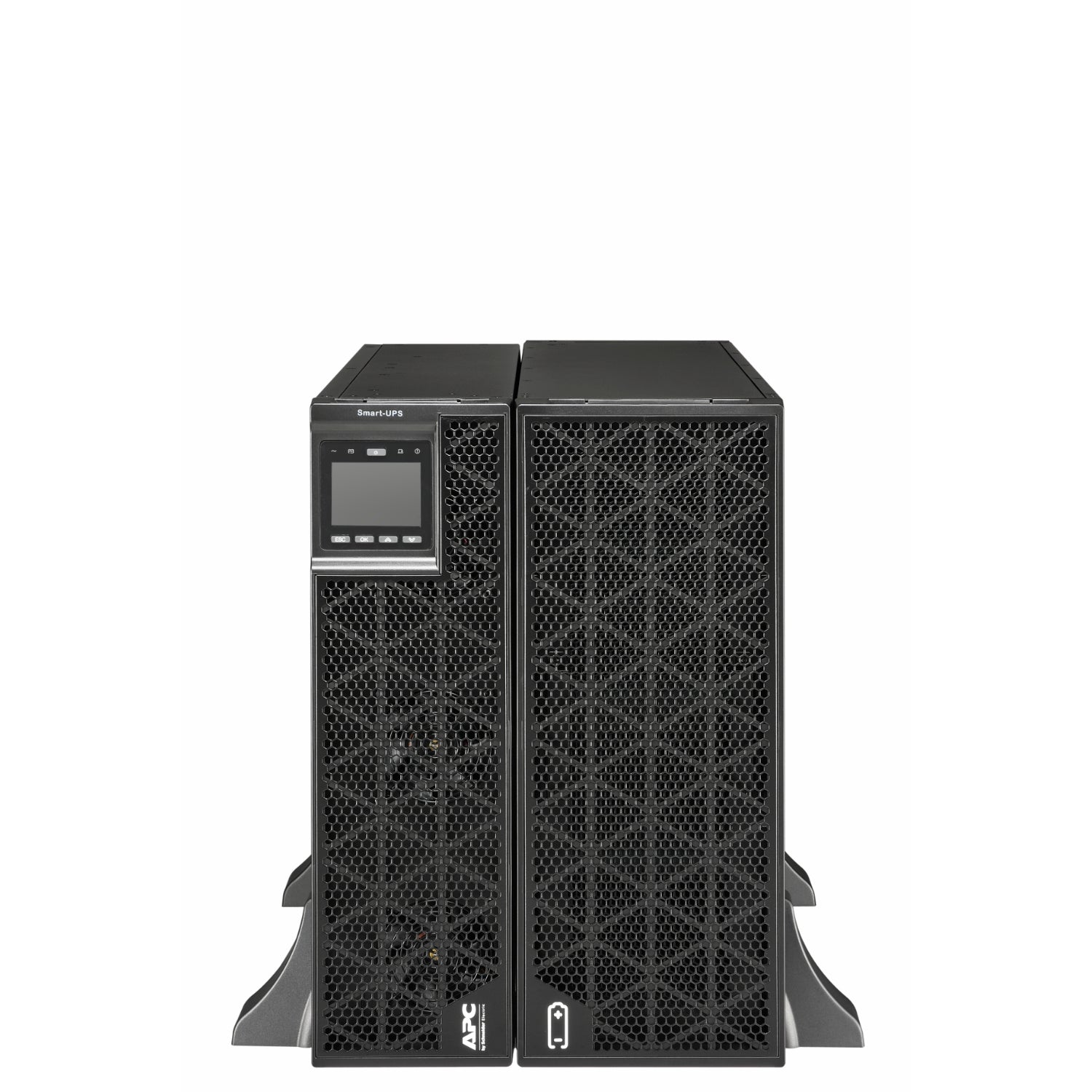

• APC SRTG15KXLI 15kVA Smart-UPS On-Line rack/tower UPS with honeycomb grille
1 1

APC

APC SRTG15KXLI | Smart-UPS On-Line Rack/Tower UPS, 15kVA/15kW, Network Card

APC SRTG15KXLI | Smart-UPS On-Line Rack/Tower UPS, 15kVA/15kW, Network Card

Authorised APC Partner

SRTG15KXLI

In stock:2

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Smart-UPS On-Line SRTG15KXLI is a 15kVA/15kW double-conversion online rack/tower UPS built for servers, network infrastructure and other critical IT loads. It delivers pure sine wave output with 3-phase or single-phase hardwired input and output (5-wire 3P+N+E or 3-wire 1P+N+E), and ships with an integrated network management card for remote monitoring. This SKU is supplied without a rail kit.

The convertible chassis can be deployed as a 7U rack unit or a freestanding tower, with an internal automatic bypass and Emergency Power Off support. VRLA batteries provide approximately 5 minutes of runtime at full 15kW load, extending to around 14 minutes at 8kW, with efficiency up to 93%.

Features

- Pure sine wave output
- Double-conversion online protection for critical IT loads
- Convertible rack/tower form factor
- Internal automatic bypass
- Integrated network management card for remote monitoring
- Hardwired 5-wire (3P+N+E) or 3-wire (1P+N+E) connection
- Audible alarms and Emergency Power Off (EPO) support
- Auto-restart after power restoration

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Output power capacity: 15 kVA / 15 kW
- Technology: Double conversion (online)
- Form factor: Rack/Tower convertible, 7U rack height, rail kit not included
- Input: 230V / 380V...415V, hardwired 1+3-phase
- Output: 1+3-phase hardwired, plus 1 x IEC320-C19 socket for 1-phase operation only
- Input operating voltage: 160 V to 415 V
- Input frequency: 40/70 Hz
- Output frequency: 50/60 Hz
- Efficiency: up to 93%
- Battery type: VRLA (lead acid)
- Runtime: approx. 5 min at 15 kW, 10 min at 10 kW, 14 min at 8 kW
- Management: Integrated network card (SNMP), USB and serial interfaces
- Noise level: 58 dB
- Dimensions (W x H x D): 440 x 306 x 700 mm
- Weight: 142.0 kg

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Does the APC SRTG15KXLI include a network management card?
A: Yes, an integrated network management card with SNMP support is included for remote monitoring and management.

Q: Is a rack rail kit included?
A: No, this SKU is supplied without a rail kit. The unit can be used as a freestanding tower or mounted in a 7U rack space with a separately sourced rail kit.

Q: How is the UPS connected to mains and the load?
A: Input and output are hardwired, supporting a 5-wire (3P+N+E) or 3-wire (1P+N+E) connection. A single IEC320-C19 socket is also provided for 1-phase operation only.

Q: What runtime can I expect from the internal batteries?
A: Approximate runtime is 5 minutes at 15 kW, 10 minutes at 10 kW and 14 minutes at 8 kW. Actual runtime depends on load and battery condition.

Q: What type of UPS technology does it use?
A: It is a double-conversion online UPS, so connected equipment is continuously powered from the inverter with pure sine wave output and an internal automatic bypass.

Q: What are the physical dimensions and weight?
A: The unit measures 440 x 306 x 700 mm (W x H x D) and weighs 142 kg, so plan handling and rack or floor loading accordingly.
