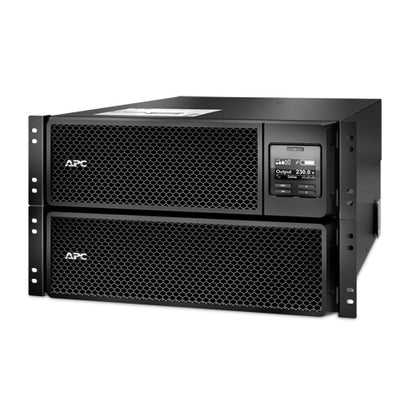

• APC SRT8KRMXLI 8kVA rackmount UPS with black mesh front panel and display
  • APC SRT10KRMXLI rack with black metal server rack, fans, batteries, one pulled out
  • APC SRT10KRMXLI 10kW rackmount UPS with server rack, cooling fans, drive bays
  • APC SRT10KRMXLI 10kW rack-mount UPS with fans and voltage display
  • APC SRT10KRMXLI 10kW rack UPS with black server rack and voltage display
  • APC SRT10KRMXLI 10kVA rackmount UPS with power outlets and network ports
  • APC SRT10KRMXLI 10kVA rack-mount UPS with silver/black outlets and grilles
  • APC SRT10KRMXLI 10kW rack-mount UPS with mesh panels and display
  • APC SRT10KRMXLI black UPS with digital voltage display and status indicators
  • APC SRT10KRMXLI black UPS with digital load and battery display
  • APC SRT10KRMXLI black UPS with runtime display and status indicators
  • APC SRT10KRMXLI 10kW UPS with digital voltage display and status indicators

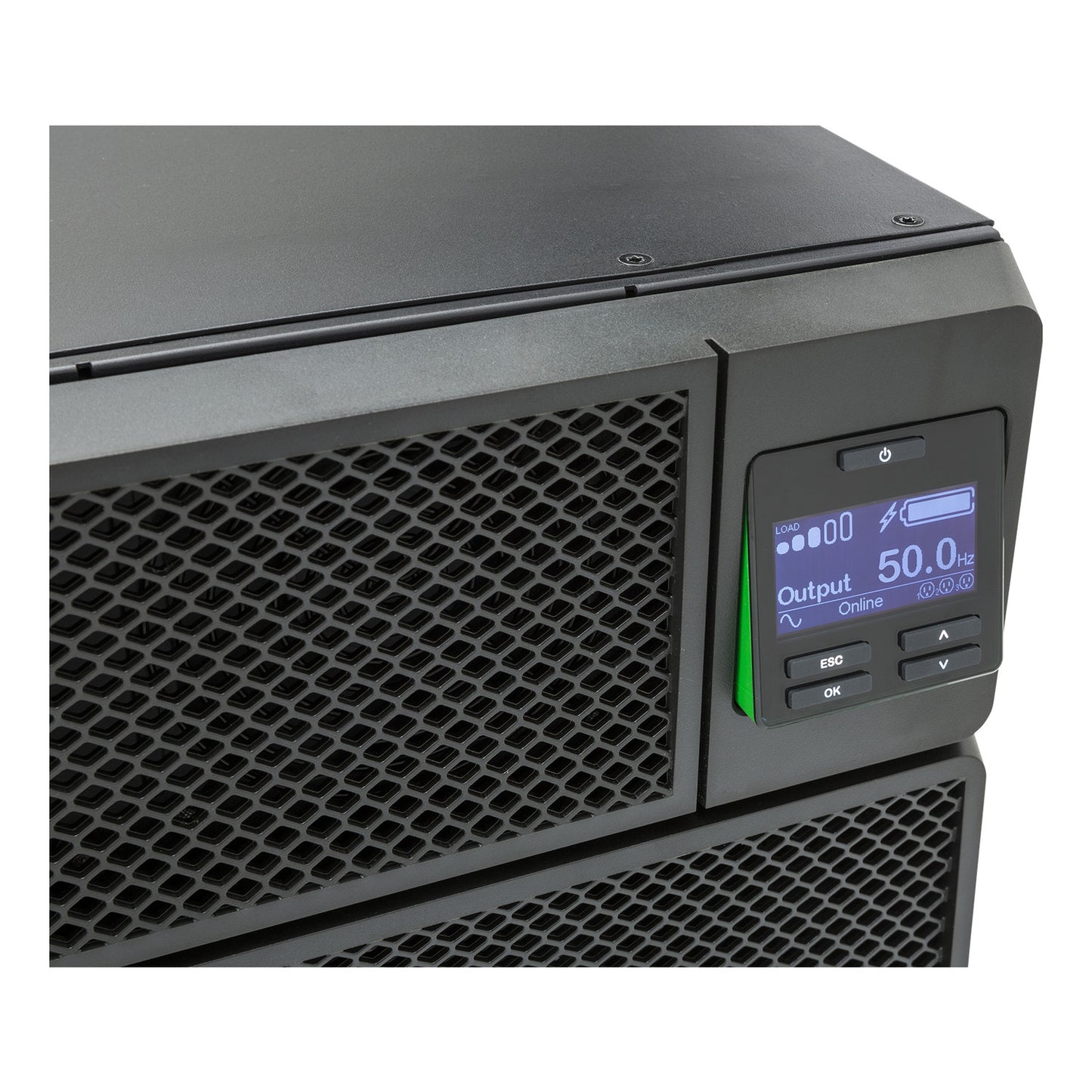

  • APC SRT10KRMXLI 10kW rack-mount UPS with digital display and status indicators
1 13

APC

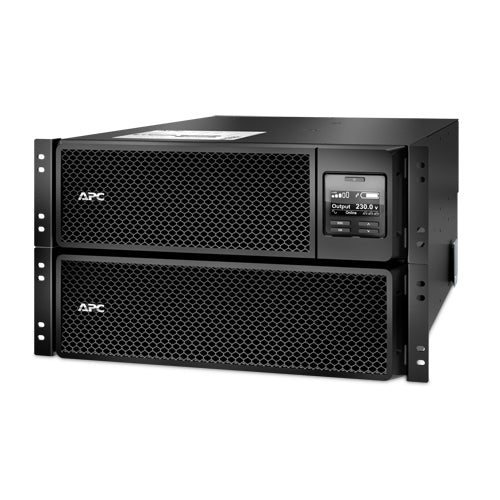

APC SRT8KRMXLI | Smart-UPS On-Line SRT 6U Rack UPS, 8kVA/8kW, Extended Runtime

APC SRT8KRMXLI | Smart-UPS On-Line SRT 6U Rack UPS, 8kVA/8kW, Extended Runtime

Authorised APC Partner

SRT8KRMXLI

In stock:8

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Smart-UPS On-Line SRT 8kVA/8kW 6U rack-mount UPS delivers double-conversion on-line power protection for data centres, server rooms and critical infrastructure. It provides pure sine wave output at 230V single-phase, with flexible hard wire input that accepts either 1-phase or 3-phase supply, and extendable runtime through external battery packs. Outlets include 6x IEC C13 and 4x IEC C19, plus a hard wire output and 3 IEC jumpers, and a rail kit is included for rack installation.

An embedded Network Management Card 3 with environmental monitoring is pre-installed, and a free SmartSlot is available for additional communication cards. Internal automatic and manual bypass, user-replaceable batteries and emergency power off support make it suited to high-density deployments where uptime and serviceability matter. Hard wire connections require installation by a qualified electrician.

Features

- High-density double-conversion on-line power protection with scalable runtime
- Network Management Card 3 with environmental monitoring pre-installed
- Flexible 1-phase or 3-phase hard wire input
- Extendable runtime with external battery packs
- Internal automatic and manual bypass
- Emergency power off (EPO) support
- Audible and visible alarms prioritised by severity
- User-replaceable batteries
- Rack mounting hardware, brackets and support rails included
- Includes temperature probe, USB cable, software CD and documentation

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Rated power: 8000 VA / 8000 W
- Topology: On-Line double conversion with sine wave output
- Form factor: 6U rackmount, rail kit included
- Input: hard wire 3-wire (1P+N+E) or 5-wire (3P+N+E), 220/230/240 V AC 1 phase or 380/400/415 V AC 3 phase
- Input frequency: 40-70 Hz auto-sensing
- Output: 220/230/240 V AC, 50/60 Hz
- Outlets: 6x IEC C13, 4x IEC C19, 3 IEC jumpers, hard wire output
- Bypass: internal automatic and manual
- Crest factor 3:1, harmonic distortion under 2%
- Battery: internal lead-acid, +/- 192 V, typical recharge time 1.5 h
- Replacement battery: APCRBC140 (quantity 2)
- Connectivity: serial port, USB port, embedded Network Management Card 3, 1 free SmartSlot
- Surge energy rating: 480 J
- Dimensions (H x W x D): 263 x 432 x 715 mm
- Weight: 111.82 kg
- Operating temperature: 0 to 40 C
- Acoustic level: 55 dBA
- Certifications: CE, EAC, IRAM, RCM, VDE

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Does the SRT8KRMXLI accept single-phase and three-phase input?
A: Yes. It supports hard wire input of 3-wire (1P+N+E) at 220/230/240 V AC single-phase or 5-wire (3P+N+E) at 380/400/415 V AC three-phase, with single-phase 230V output.

Q: What outlets does it provide?
A: It provides 6x IEC C13 and 4x IEC C19 outlets, along with 3 IEC jumpers and a hard wire output connection.

Q: Does it require professional installation?
A: Yes. The hard wire input and output connections should be installed by a qualified electrician.

Q: Can the runtime be extended?
A: Yes. Runtime can be extended by adding compatible external battery packs.

Q: Is network management included?
A: Yes. An embedded Network Management Card 3 with environmental monitoring is pre-installed, and one SmartSlot remains free for an additional card.

Q: What is the replacement battery for this UPS?
A: The replacement battery is APCRBC140, and this UPS uses 2 units.
