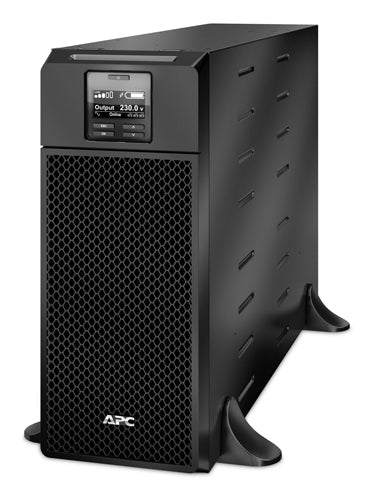

• APC SRT6KXLI 6kVA tower UPS with digital display and mesh front
1 1

APC

APC SRT6KXLI | Smart-UPS On-Line SRT 6kVA/6kW Tower UPS, 230V, Extended Runtime

APC SRT6KXLI | Smart-UPS On-Line SRT 6kVA/6kW Tower UPS, 230V, Extended Runtime

Authorised APC Partner

SRT6KXLI

Stock Status: Enquire

$10,148.97 inc. GST
$9,226.34 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Smart-UPS On-Line SRT6KXLI is a 6kVA/6kW double-conversion on-line tower UPS with sine wave output and a 230V nominal supply. It provides ten IEC outlets (6x C13 and 4x C19) plus a hard-wire output, and ships with a Network Management Card 3 with environmental monitoring preinstalled and one free SmartSlot. The extended-runtime configuration supports external battery packs for longer autonomy, and it is supplied without a rail kit.

A wide 100 to 275V adjustable input window, internal automatic and manual bypass, and emergency power off support make it well suited to critical servers, network equipment and storage. The user-replaceable battery cartridge (APCRBC140) keeps maintenance simple, and the tower chassis can be rack-mounted with a separate kit.

Features

- High-density double-conversion on-line power protection
- Extended runtime with external battery pack support
- Network Management Card 3 with environmental monitoring preinstalled for remote management
- Free SmartSlot for an additional accessory card
- Wide input voltage window for tolerance of poor mains conditions
- Internal automatic and manual bypass
- User-replaceable battery cartridge
- Emergency power off (EPO) support
- Supplied with temperature probe, USB cable, software CD and removable support feet

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Rated power: 6000 VA / 6000 W
- Topology: On-line double conversion with sine wave output
- Output voltage: 220 / 230 / 240 V selectable, 50/60 Hz
- Output connections: 6x IEC C13 + 4x IEC C19, plus hard-wire output
- Input: hard-wired (1P+N+E), 100 to 275 V adjustable window at half load
- Bypass: internal automatic and manual
- Battery: internal lead-acid, 192 V, replacement cartridge APCRBC140
- Typical recharge time: 1.5 hours
- Management: Network Management Card 3 with environmental monitoring, 1 free SmartSlot, serial and USB ports
- Emergency power off supported
- Surge energy rating: 480 J
- Dimensions (H x W x D): 432 x 174 x 719.4 mm
- Weight: 60 kg
- Operating temperature: 0 to 40 C
- Acoustic level: 55 dBA
- Certifications: CE, EAC, IRAM, RCM, VDE

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What outlets does the SRT6KXLI provide?
A: It provides 6x IEC C13 and 4x IEC C19 outlets, including 2 IEC jumpers, plus a 3-wire hard-wire output for one zone.

Q: Does it include a network management card?
A: Yes. A Network Management Card 3 with environmental monitoring is preinstalled, and one SmartSlot remains free for an additional accessory card.

Q: Can the runtime be extended?
A: Yes. This is an extended-runtime model that supports external battery packs to increase autonomy beyond the internal battery.

Q: Is this UPS tower or rack mount?
A: It is a tower unit. It can be rack-mounted using a separate rail kit, which is not included.

Q: How is the UPS connected to mains power?
A: Input is hard-wired (1P+N+E) rather than via a plug, so it needs to be wired in by a qualified electrician. Output is via the IEC outlets or the hard-wire output.

Q: What battery does it use and can I replace it myself?
A: It uses an internal 192 V lead-acid battery. The cartridge is user-replaceable, and the replacement part is APCRBC140.
