APC SRT5KRMXLI | Smart-UPS On-Line 5000VA/4500W Rack UPS, 3U, 230V, Network Card

APC SRT5KRMXLI | Smart-UPS On-Line 5000VA/4500W Rack UPS, 3U, 230V, Network Card

Authorised APC Partner

SRT5KRMXLI

In stock:61

$8,853.74 inc. GST
$8,048.85 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Smart-UPS On-Line SRT5KRMXLI is a 5000VA/4500W double-conversion on-line rack-mount UPS in a 3U chassis, delivering continuous pure sine wave output for servers, network equipment and storage. It uses a 230V hard wire input and provides 6x IEC C13 and 4x IEC C19 outlets, with a pre-installed Network Management Card 3 and a rail kit included for rack installation.

Because the topology is on-line double-conversion, connected loads run from clean regenerated power with zero transfer time. Internal automatic and manual bypass, a user-replaceable lead-acid battery, a colour LCD interface and an external battery pack option for extended runtime make it suited to data centre and server room deployments. One SmartSlot remains free for additional accessory cards.

Features

- Double-conversion on-line topology provides continuous, clean sine wave power with zero transfer time
- Pre-installed Network Management Card 3 with environmental monitoring support
- Extendable runtime with an external battery pack

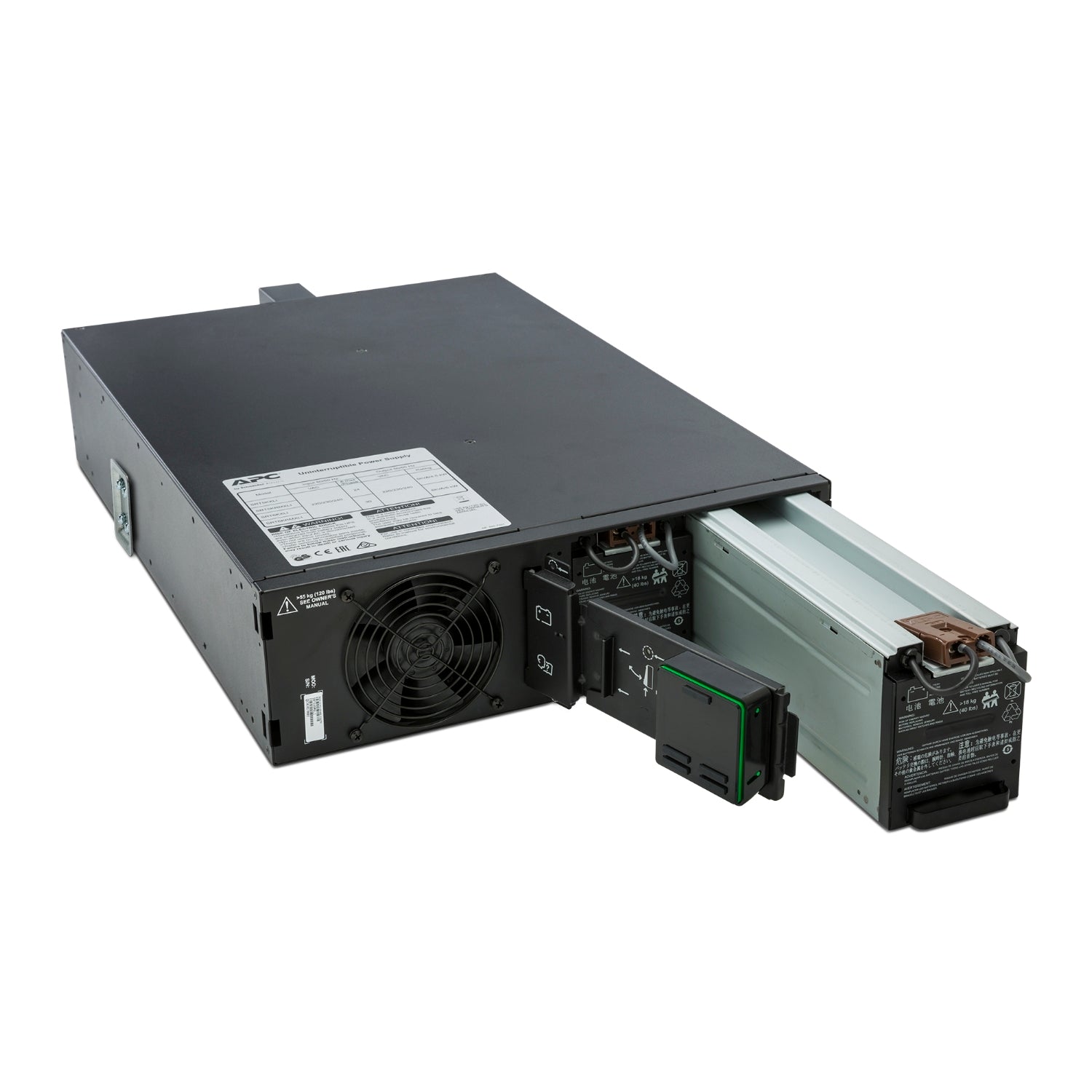

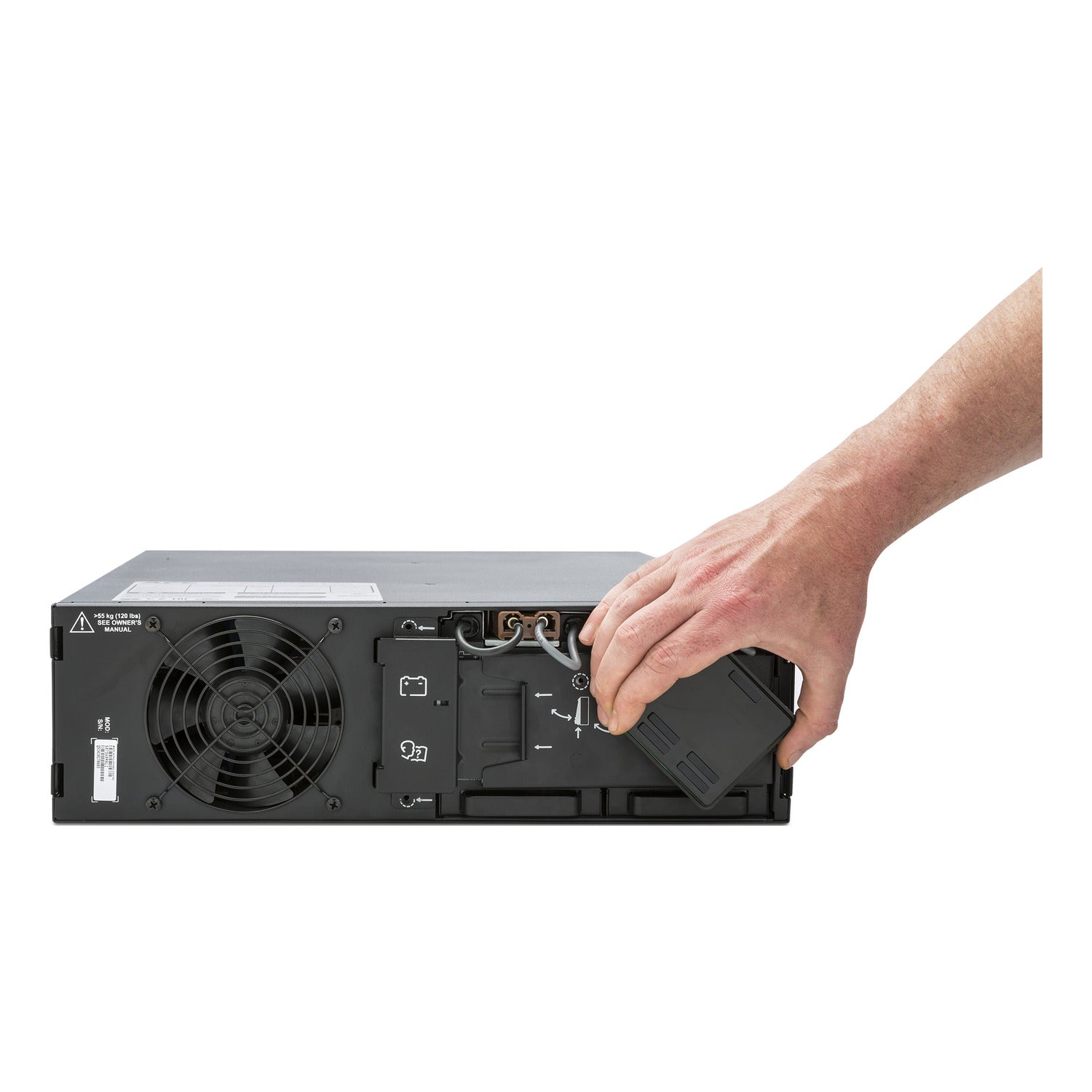

- User-replaceable, hot-swappable lead-acid battery
- Colour LCD interface with prioritised audible and visible alarms
- Internal automatic and manual bypass
- Rack-mount rails and brackets included, tower use possible with a separate kit
- Emergency power off (EPO) support

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 5000VA / 4500W rated output power
- On-Line double-conversion topology with pure sine wave output
- Input: 230V AC single phase, hard wire 3-wire (1P + N + E)
- Output voltage: 230V AC, configurable to 220V or 240V
- Input voltage range (half load): 100 to 275V, adjustable
- Input frequency: 40 to 70Hz auto-sensing

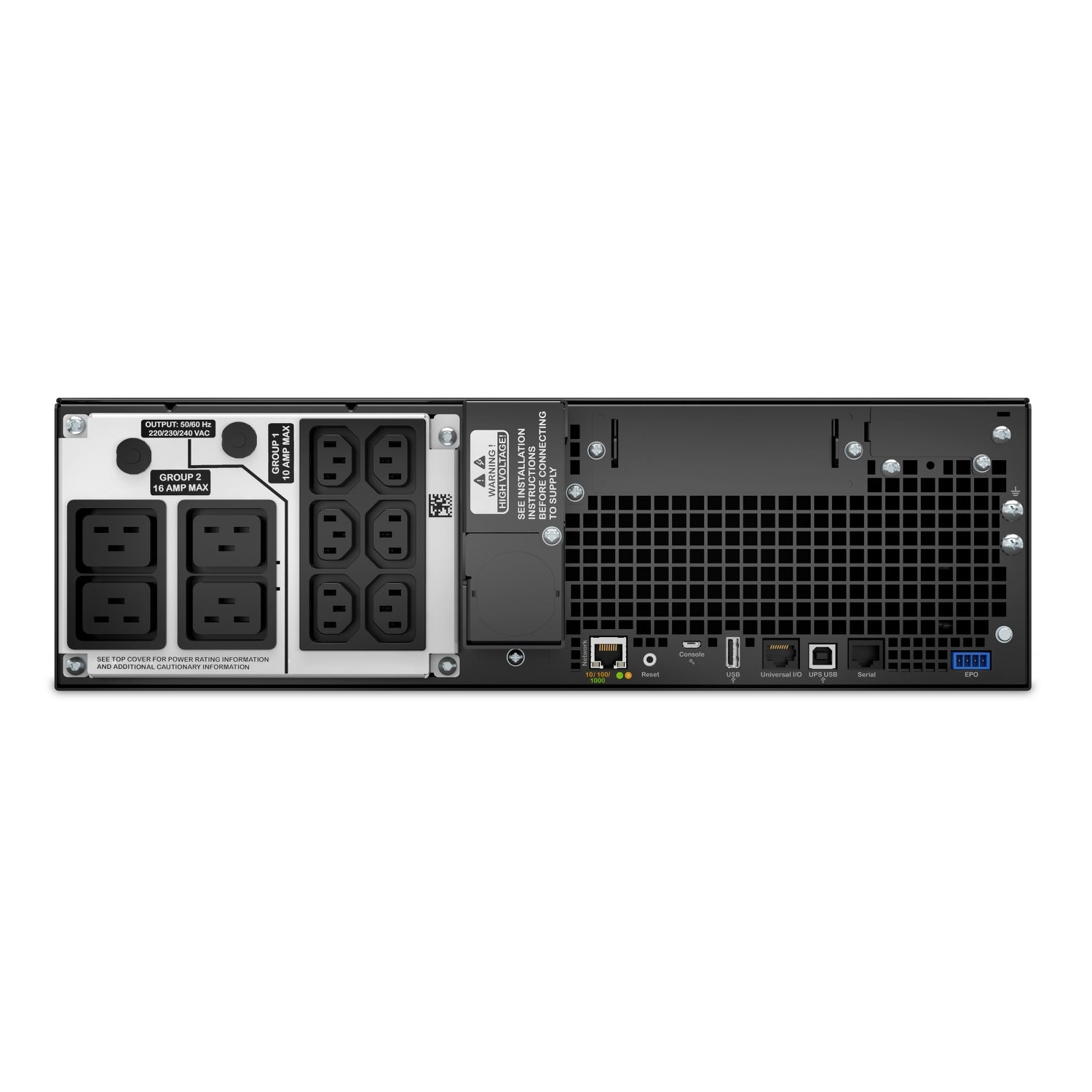

- Outlets: 6x IEC C13 and 4x IEC C19, plus 2 IEC jumpers
- Bypass: internal automatic and manual
- Battery: internal lead-acid, 192V, replacement battery APCRBC140
- Typical recharge time: 1.5 hours
- Extendable runtime via 1 external battery pack
- Connectivity: serial port, USB port, pre-installed Network Management Card 3
- 1 free SmartSlot
- Emergency power off supported
- Form factor: 3U rack-mount, rail kit included
- Dimensions (H x W x D): 130 x 432 x 719.4mm
- Weight: 54.43kg
- Operating temperature: 0 to 40 C
- Acoustic level: 55dBA
- Certifications: CE, EAC, IRAM, RCM, VDE

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input connection does the SRT5KRMXLI use?
A: It has a 230V single-phase hard wire input (3-wire: line, neutral and earth), so it must be wired in by a qualified electrician rather than plugged into a wall outlet.

Q: What outlets are provided?
A: Six IEC C13 and four IEC C19 outlets, and two IEC jumper cords are included for connecting to equipment.

Q: Does it include a network management card?
A: Yes. A Network Management Card 3 is pre-installed, and one SmartSlot remains free for additional accessory cards.

Q: Can the runtime be extended?
A: Yes. Runtime can be extended by connecting one external battery pack.

Q: Is a rack mounting kit included?
A: Yes. Rack-mount rails and brackets are included for 3U rack installation.

Q: Is the battery user-replaceable?
A: Yes. The internal lead-acid battery is user-replaceable and hot-swappable. The replacement battery is APCRBC140.
