APC SRT1000RMXLI-NC | Smart-UPS On-Line 1000VA Rack UPS, 2U, 230V, Network Card

APC SRT1000RMXLI-NC | Smart-UPS On-Line 1000VA Rack UPS, 2U, 230V, Network Card

Authorised APC Partner

SRT1000RMXLI-NC

Stock Status: Enquire

$3,877.23 inc. GST
$3,524.75 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Smart-UPS On-Line SRT1000RMXLI-NC is a 1000VA/1000W double-conversion on-line rackmount UPS in a 2U, 19 inch format for 230V mains. It supplies continuous, conditioned power to servers, network switches and other critical equipment, with scalable runtime and a pre-installed APC Network Management Card (AP9641) for remote monitoring and management.

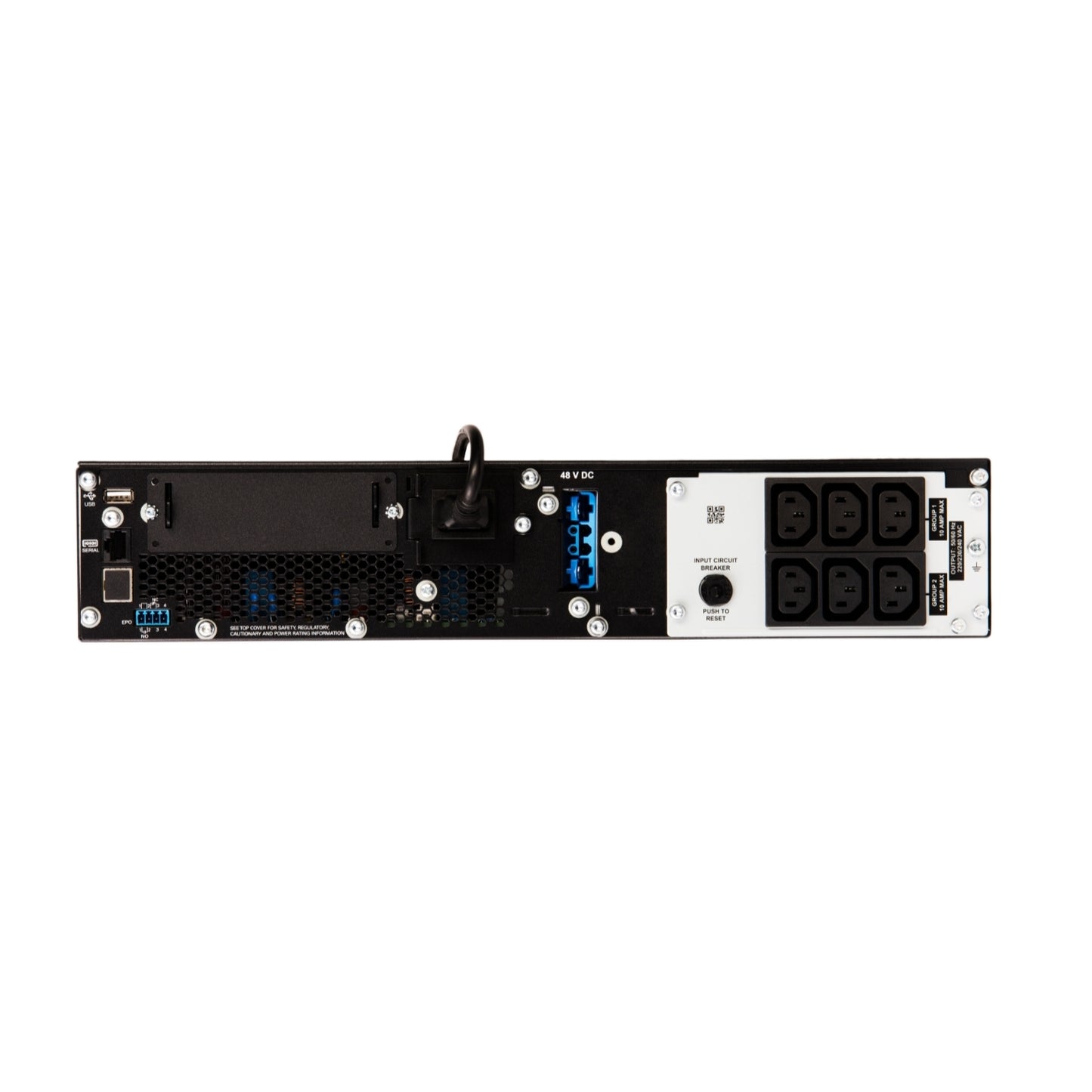

Six IEC C13 outlets distribute protected power to rack equipment, while an LCD control panel provides local status and configuration. An IEC C14 input accepts 220-240 V at 50/60 Hz, automatic bypass keeps connected loads running during UPS faults, and the rackmount kit is included for straightforward installation.

Features

- Double-conversion on-line power protection with scalable runtime
- LCD control panel for local status and configuration
- Pre-installed APC Network Management Card AP9641 with temperature sensor, USB and serial interface (via RJ45 dongle)
- Automatic bypass
- Rackmount kit included
- Includes software CD, comms cable and country-specific power cord

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Output capacity: 1000 VA / 1000 W
- Topology: Double conversion (online)
- Form factor: 2U rackmount, 19 inch
- Input: IEC C14, 220-240 V, 50/60 Hz
- Outputs: 6 x IEC C13
- Management: Pre-installed Network Management Card AP9641
- Dimensions (H x W x D): 85 x 432 x 505 mm
- Weight: 22 kg
- Max. runtime at 50% load: 21.0 min
- Max. runtime at 70% load: 13.75 min
- Max. runtime at 100% load: 8.5 min

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of UPS is the SRT1000RMXLI-NC?
A: It is a double-conversion (online) UPS rated at 1000VA/1000W, supplied in a 2U 19 inch rackmount format for 230V mains.

Q: Does it include a network management card?
A: Yes. It ships with a pre-installed APC Network Management Card AP9641, which includes a temperature sensor and supports USB and serial (via RJ45 dongle) connections.

Q: How many outlets does it have and what type?
A: It provides 6 x IEC C13 outlets, with input via an IEC C14 connection at 220-240 V, 50/60 Hz.

Q: What runtime can I expect?
A: Maximum runtime is approximately 21 minutes at 50% load, 13.75 minutes at 70% load and 8.5 minutes at 100% load. Runtime is scalable.

Q: Is a rackmount kit included?
A: Yes, the rackmount kit is included, along with a software CD, comms cable and a country-specific power cord.

Q: What are the physical dimensions and weight?
A: The unit measures 85 mm high, 432 mm wide and 505 mm deep, occupies 2U of rack space and weighs 22 kg.
