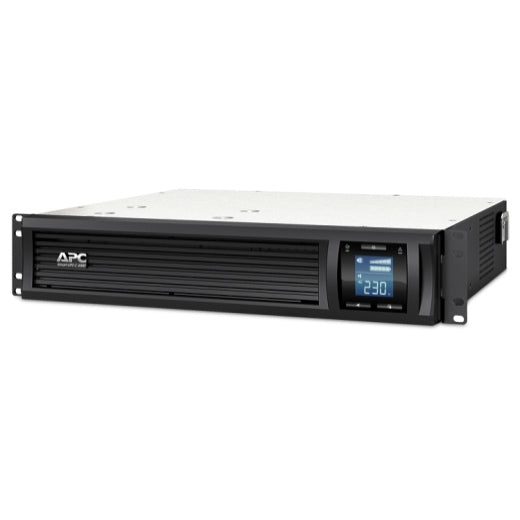

• APC SMC2000I-2U Smart-UPS C 2000VA rackmount UPS with LCD voltage display
1 1

APC

APC SMC2000I-2U | Smart-UPS C 2U Rack UPS, 2000VA, 1300W, 6x IEC C13

APC SMC2000I-2U | Smart-UPS C 2U Rack UPS, 2000VA, 1300W, 6x IEC C13

Authorised APC Partner

SMC2000I-2U

Stock Status: Enquire

$2,312.42 inc. GST
$2,102.20 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Smart-UPS C SMC2000I-2U is a line-interactive 2000VA/1300W rackmount UPS in a 2U chassis, built to protect entry-level servers, network and VoIP equipment and point-of-sale systems. It delivers pure sine wave output on battery from six IEC C13 outlets on a 230V supply, with USB and Serial communication ports and a graphic LCD for at-a-glance status.

Automatic voltage regulation corrects low and high mains voltage without drawing on the battery, and a green mode bypasses unused components in good power conditions to improve efficiency. Rack mounting brackets, a USB cable, software CD and documentation are included, and the sealed lead-acid battery uses the RBC22 replacement cartridge.

Features

- Pure sine wave output on battery for compatibility with active PFC servers and sensitive electronics
- Green mode bypasses unused components in good power conditions for high efficiency
- Automatic voltage regulation boosts low input voltage by up to 30% and trims high voltage by up to 12% without using the battery
- Graphic LCD status display with load and battery bar graphs
- Cold-start capable, providing temporary battery power when utility power is out
- Temperature-compensated battery charging to prolong battery life
- Intelligent battery management with self-test and disconnected battery notification
- Audible alarms
- Includes rack mounting brackets, USB cable, software CD and documentation

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Output capacity: 2000VA / 1300W
- Topology: Line Interactive
- Waveform on battery: Pure sine wave
- Nominal output voltage: 230V
- Outlets: 6x IEC 320 C13 plus 2x IEC jumper cables
- Input connection: IEC 320 C20
- Input voltage range: 180 - 287V
- Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
- Transfer time: 6 ms typical
- Battery: sealed lead-acid, RBC22 replacement cartridge
- Recharge time: approx. 3 hours to 90% capacity
- Runtime at full load (1300W): 3 min 52 s
- Communication: USB and Serial
- Display: Graphic LCD
- Form factor: 2U rackmount
- Dimensions (H x W x D): 89 x 480 x 470 mm
- Net weight: 26.2 kg
- Operating temperature: 0 to 40 C

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Does the SMC2000I-2U produce a pure sine wave output?
A: Yes. It provides pure sine wave output on battery, which suits servers with active PFC power supplies and other sensitive electronics.

Q: How many outlets does it have and what type?
A: It has six IEC 320 C13 outlets with battery backup, plus two IEC jumper cables. The input connection is IEC 320 C20.

Q: Does it support SNMP network management?
A: No. It communicates over USB and Serial only and has no network management card, so it is monitored by a directly connected host.

Q: Which replacement battery does this UPS use?
A: It uses the RBC22 replacement battery cartridge, a sealed maintenance-free lead-acid battery rated for typically 3 - 5 years of life.

Q: How much space does it need in a rack?
A: It is a 2U rackmount unit measuring 89 x 480 x 470 mm, with rack mounting brackets included.

Q: What is the runtime at full load?
A: At the full 1300W load the runtime is approximately 3 minutes 52 seconds. Runtime extends considerably at lighter loads.

APC Replacement Battery Finder

How Do I Choose the Right APC UPS Battery?

Finding the correct replacement battery for your APC UPS can be confusing Our APC Battery Finder makes it easy. Simply enter your UPS model to get the exact battery match, the correct quantity required, and guidance if your unit is end-of-life with upgrade options.

Designed for fast, accurate results, this tool helps Australian businesses & IT teams avoid downtime and order the right APC UPS battery the first time.

Find My APC Battery
