• APC SCL500RMI1UC Smart-UPS Li-ion 500VA rack-mount black silver UPS
1 1

APC

APC SCL500RMI1UC | Smart-UPS Li-ion Rack UPS, 500VA/400W, 1U, SmartConnect

APC SCL500RMI1UC | Smart-UPS Li-ion Rack UPS, 500VA/400W, 1U, SmartConnect

Authorised APC Partner

SCL500RMI1UC

In stock:9

$1,559.75 inc. GST
$1,417.95 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

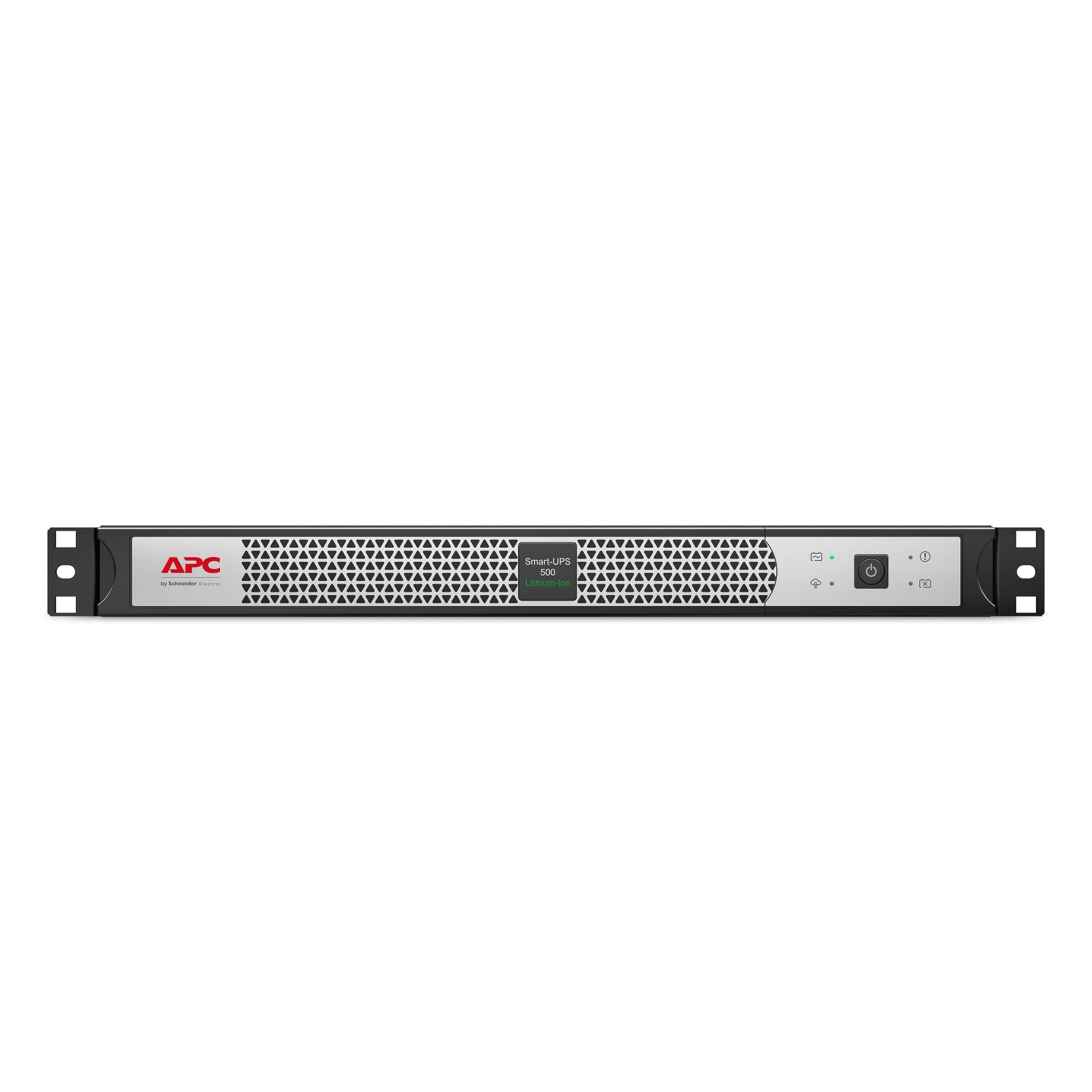

The APC Smart-UPS SCL500RMI1UC is a 1U short-depth rackmount line-interactive UPS rated 500VA/400W, built around an internal lithium-ion battery with an 8 to 10 year design life. It delivers sine wave output at 230V with four IEC C13 outlets, making it well suited to protecting servers, point-of-sale equipment, routers and switches in compact rack or network cabinet deployments.

SmartConnect port connectivity enables cloud-enabled monitoring of power conditions, alongside USB and serial ports for local management and PowerChute Serial Shutdown. Full-time multi-pole noise filtering, surge protection, a user-replaceable battery and rack mounting support rails are included, with a compact 232 mm depth for shallow racks.

Features

- Lithium-ion battery with an 8 to 10 year design life
- SmartConnect cloud-enabled monitoring for remote power visibility
- Short-depth 1U rackmount design suits shallow racks and cabinets
- Full-time multi-pole noise filtering and surge protection
- User-replaceable battery for simplified maintenance
- LED status display with audible alarms for on-battery and low-battery events
- USB and serial connectivity with PowerChute Serial Shutdown support

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Capacity: 500 VA / 400 W
- Topology: Line-interactive, sine wave output
- Input: 230 V AC single phase, IEC 60320 C14 connection, 50/60 Hz auto sensing
- Output: 230 V AC, 4 x IEC 60320 C13 outlets
- Transfer time: 6 ms typical, 10 ms maximum
- Battery: internal Li-ion, 8 to 10 year design life, user-replaceable
- Connectivity: SmartConnect port, USB port, serial port
- Software compatibility: SmartConnect, IT Expert, PowerChute Serial Shutdown
- Form factor: 1U rackmount, short depth
- Dimensions (H x W x D): 44 x 432 x 232 mm
- Weight: 4.06 kg
- Operating temperature: 0 to 40 C
- Surge energy rating: 510 J
- Certifications: CE, RCM, C-Tick, EAC, UK PSTI
- Included: installation guide, rack mounting support rails, USB cable

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What is the capacity of the APC SCL500RMI1UC?
A: It is rated at 500VA/400W with line-interactive topology and sine wave output at 230V.

Q: How many outlets does it provide and what type?
A: It has four IEC 60320 C13 outlets, and the input connects via an IEC 60320 C14 inlet.

Q: Can this UPS be mounted in a shallow rack?
A: Yes. It is a 1U short-depth unit measuring 44 x 432 x 232 mm, and rack mounting support rails are included.

Q: What battery does it use and can it be replaced?
A: It uses an internal lithium-ion battery with an 8 to 10 year design life, and the battery is user-replaceable.

Q: How is the UPS monitored and managed?
A: It has a SmartConnect port for cloud-enabled monitoring, plus USB and serial ports. It is compatible with SmartConnect, IT Expert and PowerChute Serial Shutdown.

Q: Does it support extended runtime battery packs?
A: No. Extendable runtime is not available on this model, so it suits small loads such as networking and point-of-sale equipment.
