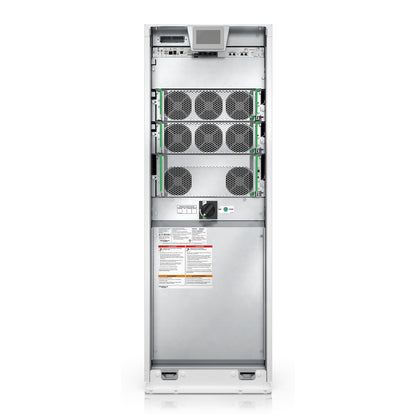

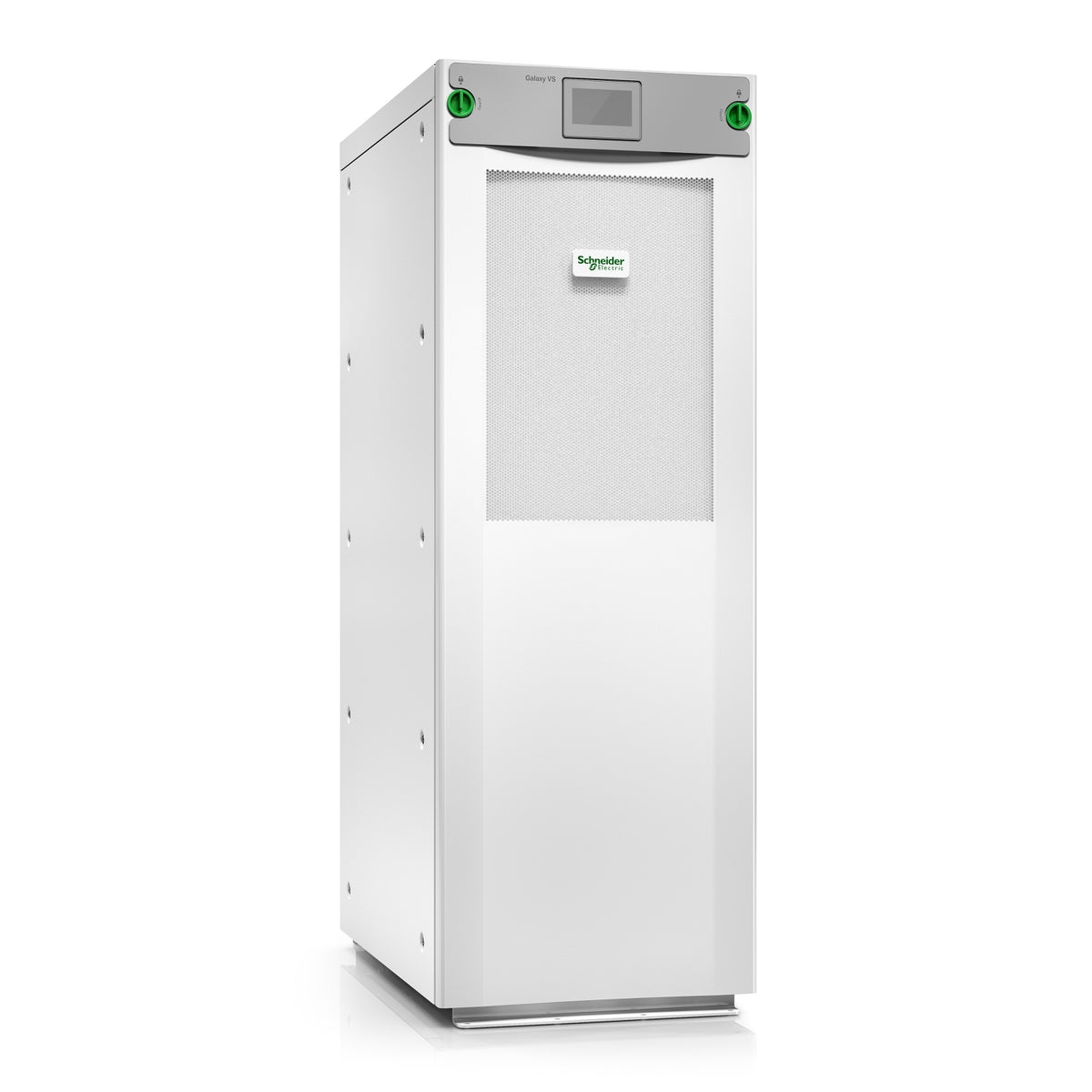

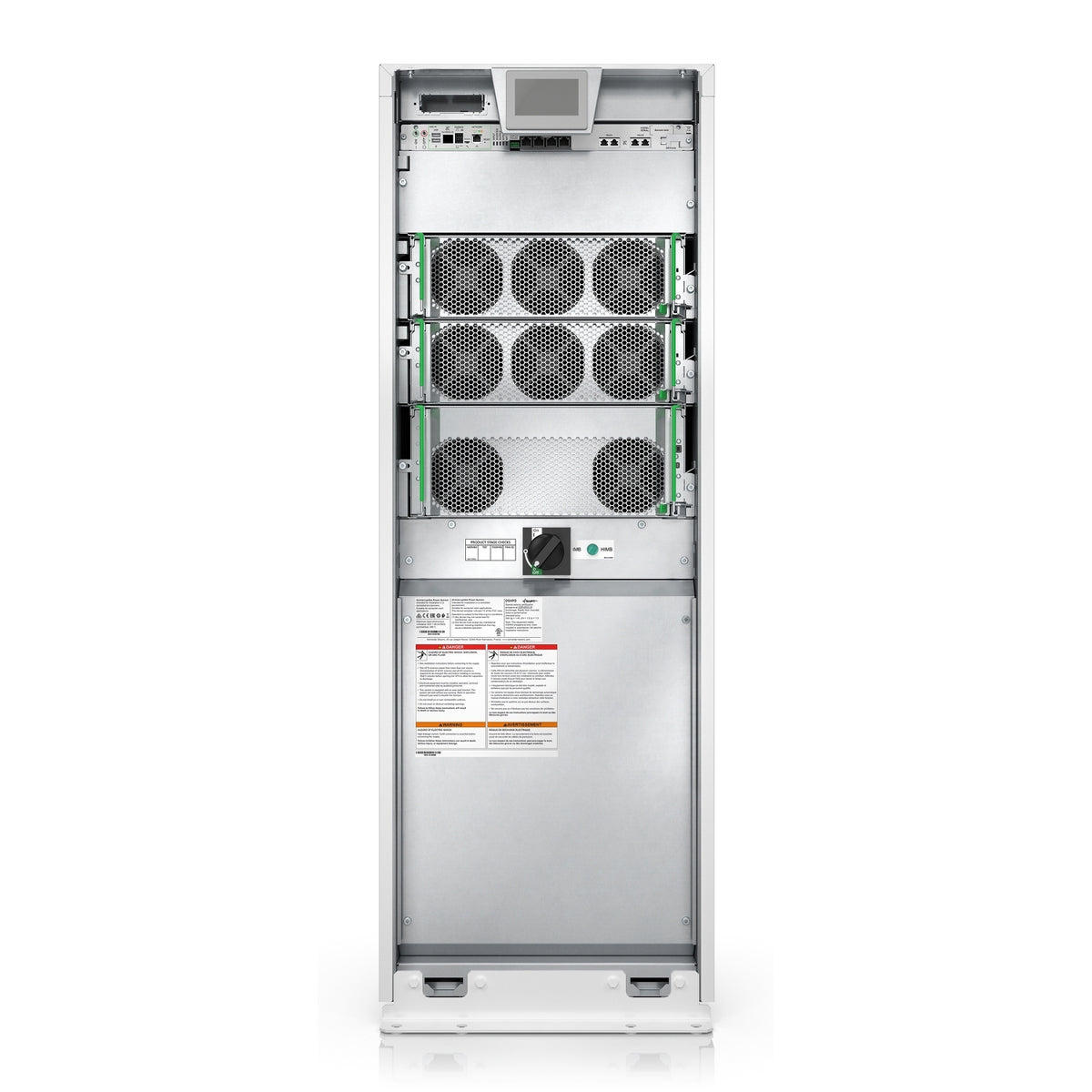

APC GVSUPS20KRH | Galaxy VS 20kW 400V Online UPS, N+1 Module, Start-up 5x8

Authorised APC Partner

SKU:GVSUPS20KRH

In stock:1

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Galaxy VS 20kW 400V UPS is a three-phase online double-conversion UPS built for edge, small and medium data centres and commercial or industrial critical infrastructure. This model includes one extra power module for N+1 redundancy and is designed for use with external batteries, with a 5x8 start-up service included.

The modular architecture delivers N+1 redundancy with no footprint penalty, and efficiency reaches up to 99% in ECOnversion mode. It tolerates a wide input voltage range, helping to preserve battery life in harsh electrical environments, and maintains full kW output up to 40 C. It is compatible with Galaxy Lithium-ion Battery Cabinets and supports parallel-redundant configurations.

Features

- Modular architecture: one extra power module gives N+1 redundancy with no footprint penalty
- Up to 99% efficient in ECOnversion mode
- Wide input voltage range for harsh electrical environments, which helps save battery life
- No power derating in kW up to 40 C
- Compatible with Galaxy Lithium-ion Battery Cabinets
- Compact, high-density design with full front access
- Embedded network management card (EcoStruxure IT, Web, SNMP, Modbus TCP/RTU)
- Parallel-redundant capability

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 20 kW / 400 V three-phase online double-conversion UPS
- N+1 redundant power module included
- Designed for external batteries, compatible with Galaxy Lithium-ion Battery Cabinets
- Up to 99% efficiency in ECOnversion mode
- No kW derating up to 40 C (104 F)
- 5x8 start-up service included

FAQs

Q: Does this UPS include batteries?
A: No. This model is designed for external batteries and is compatible with Galaxy Lithium-ion Battery Cabinets.

Q: What does N+1 mean on this model?
A: It includes one extra power module, so the UPS can keep supporting the load if a single module fails, without adding to the footprint.

Q: What input and output configuration does it use?
A: It is a 400 V three-phase online double-conversion UPS rated at 20 kW.

Q: Can it be used in parallel for more redundancy?
A: Yes. The Galaxy VS supports parallel-redundant capability.

Q: Does the UPS derate at higher temperatures?
A: No. It maintains full kW output up to 40 C (104 F).

Q: What network management is built in?
A: An embedded network management card supports EcoStruxure IT, Web, SNMP and Modbus TCP/RTU.
