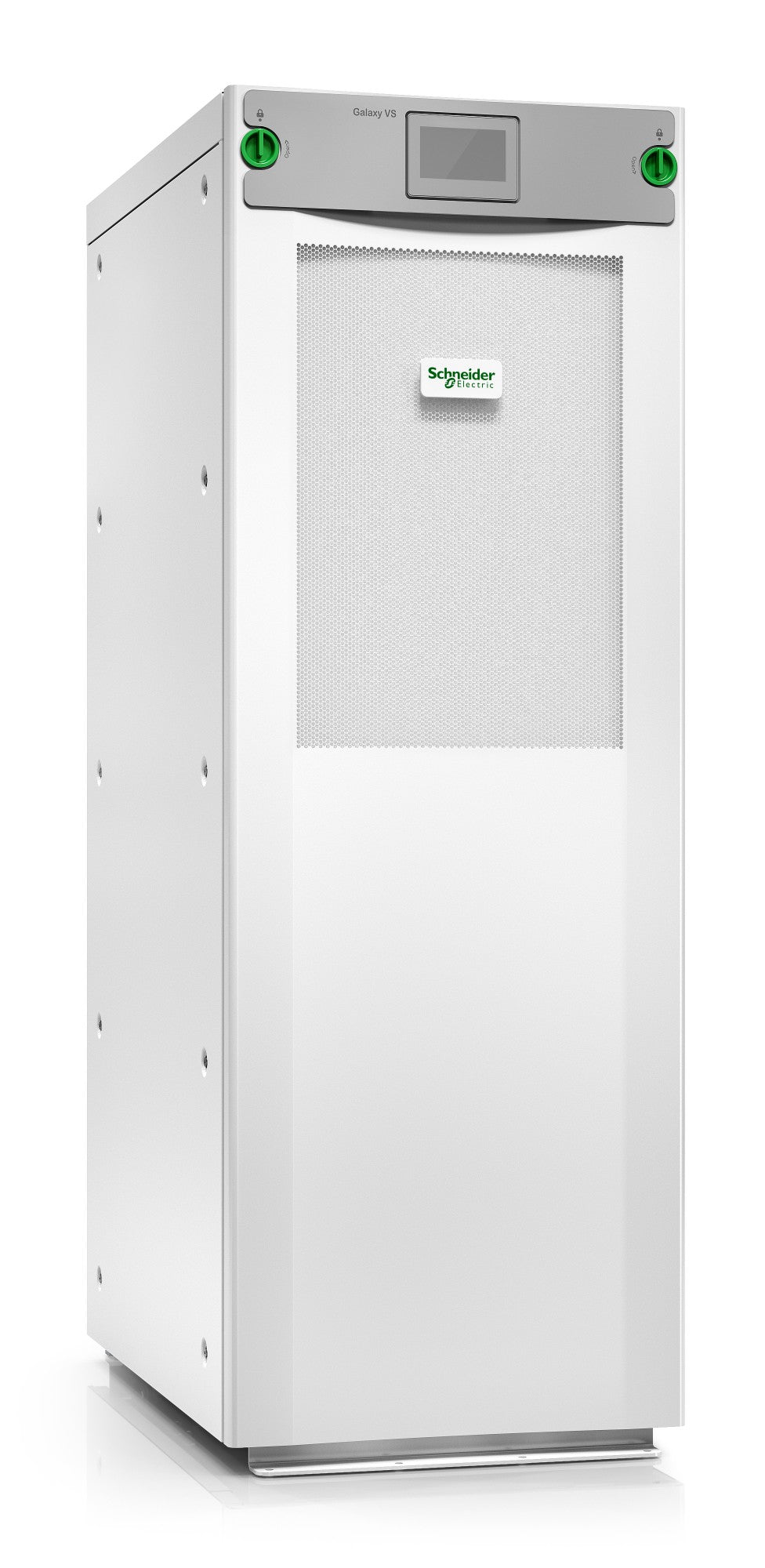

APC GVSUPS20KB4HS | Galaxy VS 20kW 400V Online UPS, 9Ah Battery String, 5x8 Start-up

Authorised APC Partner

SKU:GVSUPS20KB4HS

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The APC Galaxy VS 20kW 400V online double-conversion UPS delivers 20 kW / 20 kVA of three-phase protection for edge sites, small and medium data centres, and commercial or industrial critical loads. This model ships with one internal 9Ah smart modular VRLA battery string, expandable to four strings for extended runtime, and includes 5x8 start-up service.

The modular architecture maximises availability, with Live Swap module replacement that avoids scheduled downtime. Efficiency reaches up to 99% in eConversion mode, and the UPS connects to EcoStruxure software for resiliency and sustainability monitoring. A 1-year Secure NMC subscription is included, giving access to future firmware updates.

Features

- Up to 99% efficient in eConversion mode
- Modular architecture to maximise availability
- Live Swap module replacement with no scheduled downtime
- Access to EcoStruxure software for resiliency and sustainability
- 1-year Secure NMC subscription included for future firmware updates
- Smart high-capacity modular battery string, expandable to 4 strings for extended runtime
- Includes 5x8 start-up service

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 20 kW / 20 kVA rated power
- On-line double conversion topology
- 400 V 3-phase input and output (380/415 V also supported)
- Input voltage limits: 340-460 V, input frequency 40-70 Hz
- Maximum input current: 36 A
- Input power factor at full load: 0.99
- Input harmonic distortion: less than 3% at full load
- Load power factor: 0.7 leading to 0.7 lagging without derating
- Hard wire input connection (4-wire 3P+E or 5-wire 3P+N+E) and hard wire output
- Battery: 1 internal 9Ah smart modular VRLA string, expandable to 4 strings
- Nominal battery voltage: 480 V, end of discharge voltage: 384 V DC
- Operating temperature: 0 to 40 C, humidity 0 to 95% non-condensing
- Audible noise at 1 m: 55 dBA
- Protection class: IP20
- Colour: White
- Approvals: UL 1778 5th edition, CSA C22.2 No 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3

FAQs

Q: What power rating does the Galaxy VS GVSUPS20KB4HS provide?
A: It is rated at 20 kW / 20 kVA with on-line double-conversion topology.

Q: What input and output voltage does it use?
A: It uses 400 V three-phase input and output, and also supports 380 V and 415 V. Input and output are hard wired.

Q: Does this model include batteries?
A: Yes. It includes one internal 9Ah smart modular VRLA battery string, which can be expanded to four strings for longer runtime.

Q: Is start-up service included?
A: Yes. 5x8 start-up service is included with this SKU.

Q: Can modules be replaced without shutting down?
A: Yes. Live Swap allows module replacement with no scheduled downtime.

Q: How efficient is this UPS?
A: It achieves up to 99% efficiency in eConversion mode.
