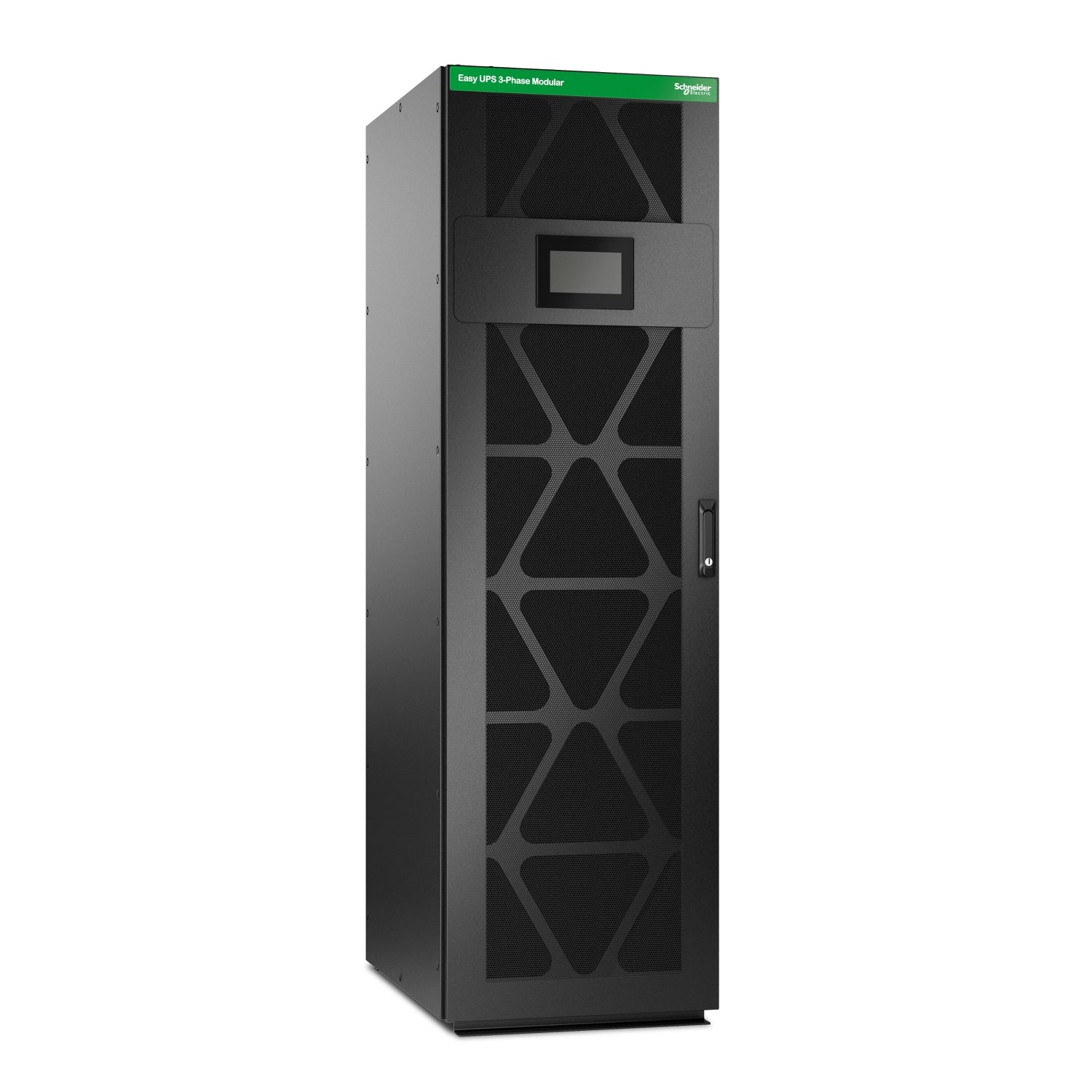

APC EMUPS50K250QBHS | Easy UPS 3-Phase Modular 50kW Online UPS, 250kW Scalable

Authorised APC Partner

SKU:EMUPS50K250QBHS

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The APC Easy UPS 3-Phase Modular 50kW Online UPS is a 400V three-phase double-conversion system that scales up to 250kW with N+1 redundancy. This black 50kW configuration includes 1 switch for external battery connection and a 5x8 start-up service, making it a ready-to-commission power protection solution for small and medium data centres and business-critical applications.

Power modules can be added as capacity requirements grow, so you only invest in the protection you need today. Live Swap power modules can be replaced while the connected load stays protected, and a built-in static bypass, network management card and dust filter are included. It is designed for use with external VRLA battery strings.

Features

- Pay as you grow: add power modules to scale capacity and reduce upfront capital expenditure
- Live Swap: power modules can be swapped while the load stays protected
- Modular architecture: one extra power module provides N+1 redundancy with no footprint penalty
- Online double-conversion topology for continuous, conditioned power
- Built-in static bypass for added availability
- Includes 1 switch for external battery connection
- EcoStruxure connected package

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Rated power: 50 kW / 50 kVA
- Scalable up to 250 kW with N+1 redundancy
- 400V 3-phase input and output (3:3), input range 380/400/415 V
- Online double-conversion topology
- Battery type: VRLA, external battery, 480-576 V DC
- Maximum discharge current: 130 A
- Maximum input current: 95 A
- Input frequency: 40-70 Hz
- Built-in static bypass
- Terminal block input and output connection
- Colour: Black
- Dimensions (H x W x D): 199.1 x 60 x 85 cm
- Net weight: 251 kg
- Included: user manual, dust filter, network management card, 5x8 start-up service

FAQs

Q: What is the maximum capacity of the EMUPS50K250QBHS?
A: This system is supplied at 50kW and can be scaled up to 250kW by adding power modules, with N+1 redundancy supported.

Q: Are batteries included with this UPS?
A: No. This model is designed for external VRLA battery strings with a battery voltage range of 480-576 V DC. It includes 1 switch for external battery connection.

Q: What input and output voltage does it use?
A: It is a 400V three-phase unit with a 3:3 configuration, accepting an input range of 380/400/415 V at 40-70 Hz.

Q: Can power modules be replaced without shutting down the load?
A: Yes. Live Swap allows power modules to be swapped while the load remains protected.

Q: What is included with the 5x8 start-up service?
A: The unit ships with a 5x8 start-up service for factory-authorised commissioning, along with a user manual, dust filter and network management card.

Q: What type of UPS topology does it use?
A: It is an online double-conversion UPS with a built-in static bypass.
