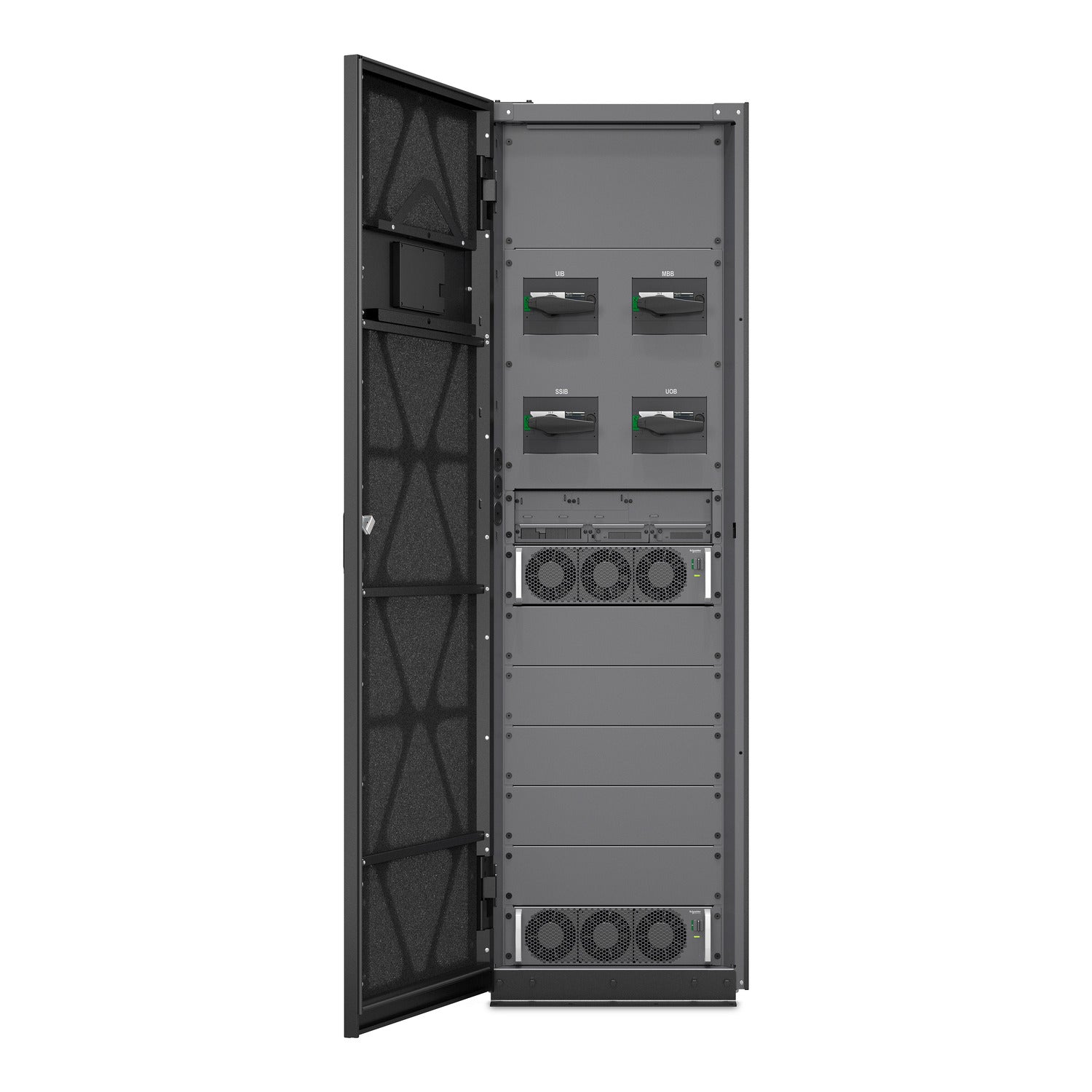

• Black metal APC EMUPS50K250PWHS easy UPS 3-phase modular online UPS with open door showing internal components and fans
1 1

APC

APC EMUPS50K250PWHS | Easy UPS 3-Phase Modular Online UPS, 50kVA, White, 5x8

APC EMUPS50K250PWHS | Easy UPS 3-Phase Modular Online UPS, 50kVA, White, 5x8

Authorised APC Partner

EMUPS50K250PWHS

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Easy UPS 3-Phase Modular online UPS delivers 50 kVA / 50 kW of double conversion power at 400 V and scales to 250 kVA / 250 kW in 50 kW steps. It suits small and medium data centres and business-critical sites that need N+1 redundancy and a pay-as-you-grow approach. This white model ships with four switches for external battery connection and a 5x8 start-up service.

The cabinet holds one installed power module with five free slots, so capacity can be added without scheduled downtime. It uses external VRLA batteries (480-576 V DC) and includes an embedded Network Management Card with SNMP, Modbus TCP/RTU and web management, plus USB connectivity for monitoring.

Features

- Pay as you grow: scale capacity in 50 kW increments from 50 kW to 250 kW with no scheduled downtime
- Live Swap of power modules while the UPS stays online
- One extra power module gives N+1 redundancy with no extra footprint
- Includes a 1-year Secure NMC subscription for firmware updates
- EcoStruxure connected, with an embedded Network Management Card (SNMP, Modbus TCP/RTU, Web)
- No power derating in kW up to 40 °C
- 5x8 start-up service included
- Wide input voltage tolerance window (-20% to +15%)

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- 50 kVA / 50 kW installed (1 power module), scalable to 250 kVA / 250 kW
- 400 V three-phase input and output
- Double conversion online topology
- 5 free power module slots, redundant (N+1) capable
- Battery voltage 480-576 V DC, VRLA battery type, external batteries
- Maximum battery discharge current 130 A
- Input frequency 40-70 Hz, output frequency 50-60 Hz
- Input harmonic distortion below 3% at full load
- Maximum input current 95 A, maximum bypass input current 74 A
- USB compatible, embedded Network Management Card
- Acoustic level 74 dB, IP20 protection
- White, 199.1 H x 60 W x 85 D cm, 251 kg
- Standards: IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 61641

FAQs

Q: How far can this UPS be scaled?
A: It ships with one 50 kW power module and has five free slots, so it can be expanded to 250 kVA / 250 kW in 50 kW steps.

Q: Does it support N+1 redundancy?
A: Yes. Adding one extra power module gives N+1 redundancy within the same footprint.

Q: Are batteries included?
A: No. This model uses external VRLA batteries rated 480-576 V DC, and includes four switches for external battery connection.

Q: Can power modules be added without shutting down?
A: Yes. Live Swap allows power modules to be added or replaced while the UPS stays online.

Q: What is included with this SKU?
A: The package includes the user manual, dust filter, embedded network management card and a 5x8 start-up service.

Q: What network management options are available?
A: The embedded Network Management Card supports SNMP, Modbus TCP/RTU and web management, and the UPS is also USB compatible.
