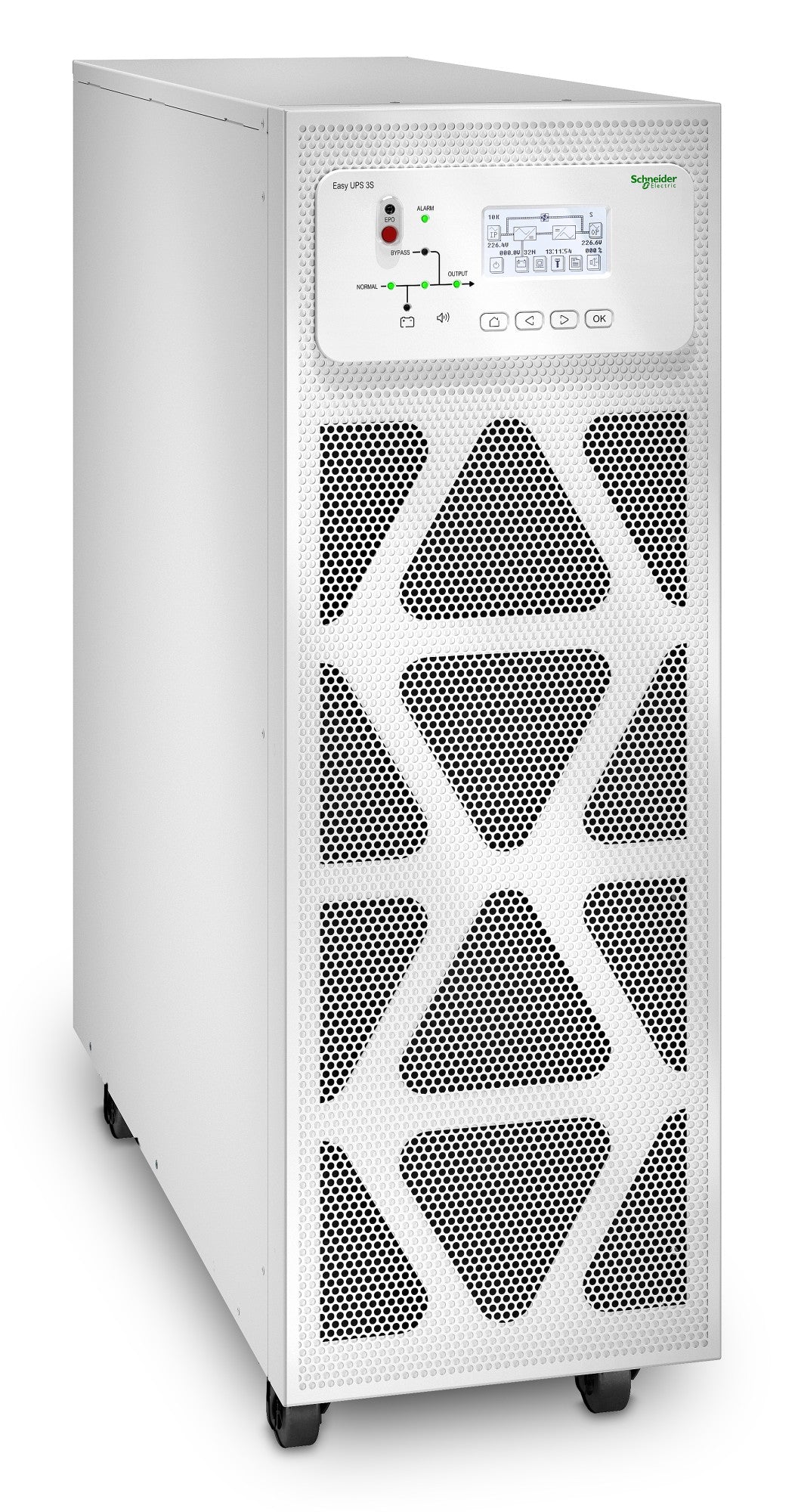

• White Schneider Electric UPS tower with geometrically patterned perforated front panel and control interface APC E3SUPS40KH
1 1

APC

APC E3SUPS40KH | Easy UPS 3S 40kVA Online Double-Conversion Tower UPS, External Battery

APC E3SUPS40KH | Easy UPS 3S 40kVA Online Double-Conversion Tower UPS, External Battery

E3SUPS40KH

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The APC Easy UPS 3S is a three-phase double-conversion online UPS delivering 40 kVA / 40,000 W of continuous power protection for small and medium businesses with demanding critical loads. Designed for use with external battery frames (no internal batteries included), this floor-standing tower unit achieves up to 96% efficiency in double-conversion mode and up to 99% in ECO mode, with a unity power factor (1.0) ensuring every kVA equals every kW. Parallel operation of up to four units supports capacity scaling or N+1 redundancy, while the built-in maintenance bypass allows uninterrupted servicing.

The Easy UPS 3S features a pure sine wave output, temperature-compensated battery charging, automatic bypass and overload protection (150% for 1 minute), and conformal-coated PCBAs for durability in challenging environments. An intuitive LCD interface simplifies configuration and real-time monitoring, and SNMP network management enables integration with EcoStruxure IT for remote visibility and control. Green Premium certified and RoHS compliant, it suits server rooms, data closets, and industrial installations requiring scalable three-phase protection. In stock and ready to ship from iptrading.com.au — order now for fast dispatch.

Features

- Double-conversion online topology provides zero transfer time and continuous clean power
- Unity power factor (1.0) — 40 kVA equals 40 kW, maximising usable capacity
- Parallel operation of up to 4 units for scalable capacity or N+1 redundancy
- External battery frame support for extended runtime — runtime sized to your deployment
- Common battery sharing in 1+1 parallel mode reduces battery investment
- Built-in maintenance bypass enables safe servicing without load disruption
- ECO mode delivers up to 99% efficiency to reduce energy costs
- Intuitive LCD interface for local configuration and real-time status monitoring
- SNMP network management for remote monitoring and alerting
- EcoStruxure IT compatible for integrated, secure IT infrastructure management
- Conformal coating on PCBAs protects against humidity and dust in harsh environments
- In-built replaceable dust filter for easier maintenance
- Temperature-compensated battery charging extends battery service life
- Automatic bypass and overload protection safeguard connected equipment
- Green Premium certified — RoHS compliant and environmentally transparent

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- UPS Topology: Double-conversion (Online)
- Output Power Capacity: 40 kVA / 40,000 W
- Output Power Factor: 1.0
- Input Voltage: 380–415 V (range 304–477 V), 3-phase
- Output Voltage: 380–415 V, 3-phase
- Input Frequency: 45–65 Hz
- Output Frequency: 50/60 Hz
- Maximum Input Current: 73 A
- Input Power Factor: 0.99
- Waveform: Pure Sine Wave
- Battery Configuration: External batteries only (no internal batteries included)
- Battery Voltage: 394 V DC (32 × 12 V batteries)
- Efficiency: Up to 96% (double-conversion), up to 99% (ECO mode)
- Form Factor: Tower (floor-standing)
- Overload Capacity: 150% for 1 min, 125% for 10 min
- Output Voltage THD: <3% (linear load)
- Bypass: Built-in Maintenance Bypass
- Dimensions (H × W × D): 770 mm × 250 mm × 900 mm
- Weight: 70 kg
- Operating Temperature: 0°C to 40°C
- Operating Humidity: 0–95% non-condensing
- IP Rating: IP20
- Certifications: Green Premium, RoHS compliant

FAQs

Q: Why does this UPS ship without internal batteries?
A: The E3SUPS40KH is the external-battery variant of the Easy UPS 3S 40 kVA. At this power class, runtime requirements vary significantly between deployments, so APC offers this model without internal batteries. You pair it with compatible APC external battery frames to achieve your target runtime, giving you full control over capacity and cost.

Q: Can I parallel multiple E3SUPS40KH units for redundancy or more capacity?
A: Yes. Up to four Easy UPS 3S units can be operated in parallel, supporting both capacity expansion (up to 160 kVA) and N+1 redundancy configurations. In 1+1 parallel mode, common battery sharing is also supported to reduce total battery costs.

Q: What is the difference between double-conversion mode and ECO mode?
A: In double-conversion (online) mode, all power passes through the inverter continuously, providing zero transfer time and complete isolation from mains disturbances — ideal for sensitive IT and industrial loads. ECO mode routes power through the bypass path when conditions are stable, achieving up to 99% efficiency; the inverter takes over immediately if power quality degrades.

Q: Is the Easy UPS 3S 40 kVA compatible with APC's EcoStruxure IT platform?
A: Yes. The E3SUPS40KH supports SNMP network management and is fully compatible with APC's EcoStruxure IT ecosystem, enabling remote monitoring, alerting, and integration into a broader data centre management environment.

Q: Is this UPS suitable for Australian three-phase installations?
A: Yes. The Easy UPS 3S 40 kVA supports 380–415 V three-phase input (with a wide range of 304–477 V), making it fully compatible with Australian commercial and industrial three-phase power infrastructure.

Q: Can I purchase the E3SUPS40KH in Australia from IP Trading, and how quickly will it ship?
A: Yes. IP Trading stocks the APC Easy UPS 3S 40 kVA (E3SUPS40KH) in Australia and offers fast dispatch. Order through iptrading.com.au and our team can assist with compatibility, parallel configuration advice, and external battery frame selection.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
