APC E3SUPS30K3I | Easy UPS 3S Online Tower UPS, 30kVA, 3:1, External Batteries

Authorised APC Partner

SKU:E3SUPS30K3I

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

End of life

This product is end of life. Contact us for alternatives.

Description

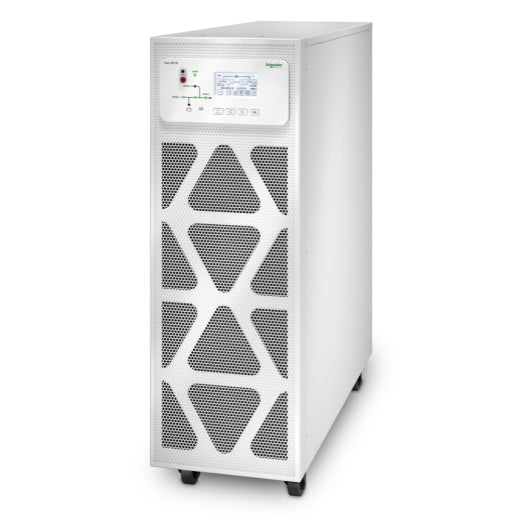

The APC Easy UPS 3S E3SUPS30K3I is a 30 kVA / 30 kW double-conversion online tower UPS with a 400 V three-phase input and single-phase output (3:1), built for small and medium business data centres and electrical rooms. It is supplied without batteries and connects to an external battery system, so you can size the runtime to suit your site.

The wide input voltage window of 304-477 V preserves battery power for genuine outages, while a 0.99 input power factor at full load keeps input current efficient. Input, output and bypass breakers and an EPO switch are included, front-access servicing simplifies maintenance, and replaceable dust filters with conformance-coated boards suit harsh environments. Parallel capability allows extra capacity or redundancy.

Features

- Easy Loop Test verifies UPS performance before connecting the load, with no load bank needed
- Front-access servicing simplifies installation and maintenance and minimises space requirements
- ECO Mode bypasses unused components in good power conditions for higher efficiency
- Input, output and bypass breakers and an EPO switch included to simplify installation
- Compact, lightweight tower that can be rolled into position
- Wide input voltage window saves battery power for real outages
- Replaceable dust filters and conformance-coated boards for harsh environments
- Parallel capability for extra capacity or redundancy
- Supplied without batteries so the battery solution can be customised

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Output capacity: 30 kVA / 30 kW
- Topology: double conversion online
- Input: 400 V 3-phase (380/415 V also supported), input voltage window 304-477 V
- Output: 230 V single-phase (220/240 V also supported), distortion less than 3%
- Input frequency 45-65 Hz, output frequency 50/60 Hz
- Maximum input current: 55 A, input power factor 0.99 at full load
- Overload: 10 minutes at 125%, 60 seconds at 150%
- Battery: external battery system, no batteries included
- Form factor: tower, 770 x 250 x 800 mm (H x W x D), 60 kg
- Colour: White (RAL 9003)
- Operating temperature: 0 to 40 C
- Communications: USB, E3SParallel, E3STempSensor ports
- Certifications: IEC/EN 62040-1, 62040-2, 62040-3, CE, CSA 22.2, EAC, RCM, WEEE

FAQs

Q: Does the E3SUPS30K3I include batteries?
A: No. This model is supplied without batteries and connects to an external battery system, so you can choose the battery solution and runtime that suit your site.

Q: What does 3:1 mean on this UPS?
A: It has a 400 V three-phase input and a single-phase 230 V output. Input voltages of 380 V and 415 V and output voltages of 220 V and 240 V are also supported.

Q: What is the input voltage window?
A: The input voltage limits are 304-477 V. This wide window helps preserve battery power for genuine outages rather than minor mains variations.

Q: How much overload can it handle?
A: It can run at 125% load for 10 minutes and 150% load for 60 seconds.

Q: Can this UPS be paralleled?
A: Yes. It provides parallel capability for extra capacity or redundancy, with a dedicated parallel communications port.

Q: Is it suitable for dusty or harsh environments?
A: It features replaceable dust filters and conformance-coated boards intended for harsher environments, with an operating temperature of 0 to 40 C.
