APC E3SUPS20KH | Easy UPS 3S 20kVA Online 3-Phase UPS, 400V 3:3, External Battery

Name: APC E3SUPS20KH | Easy UPS 3S 20kVA Online 3-Phase UPS, 400V 3:3, External Battery
Brand: APC
SKU: E3SUPS20KH
Price: 10910.22 AUD
Availability: Discontinued

Authorised APC Partner

SKU:E3SUPS20KH

Stock Status: Enquire

$10,910.22 inc. GST

$9,918.38 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

End of life

This item has been replaced by E3SP20KH.

Description

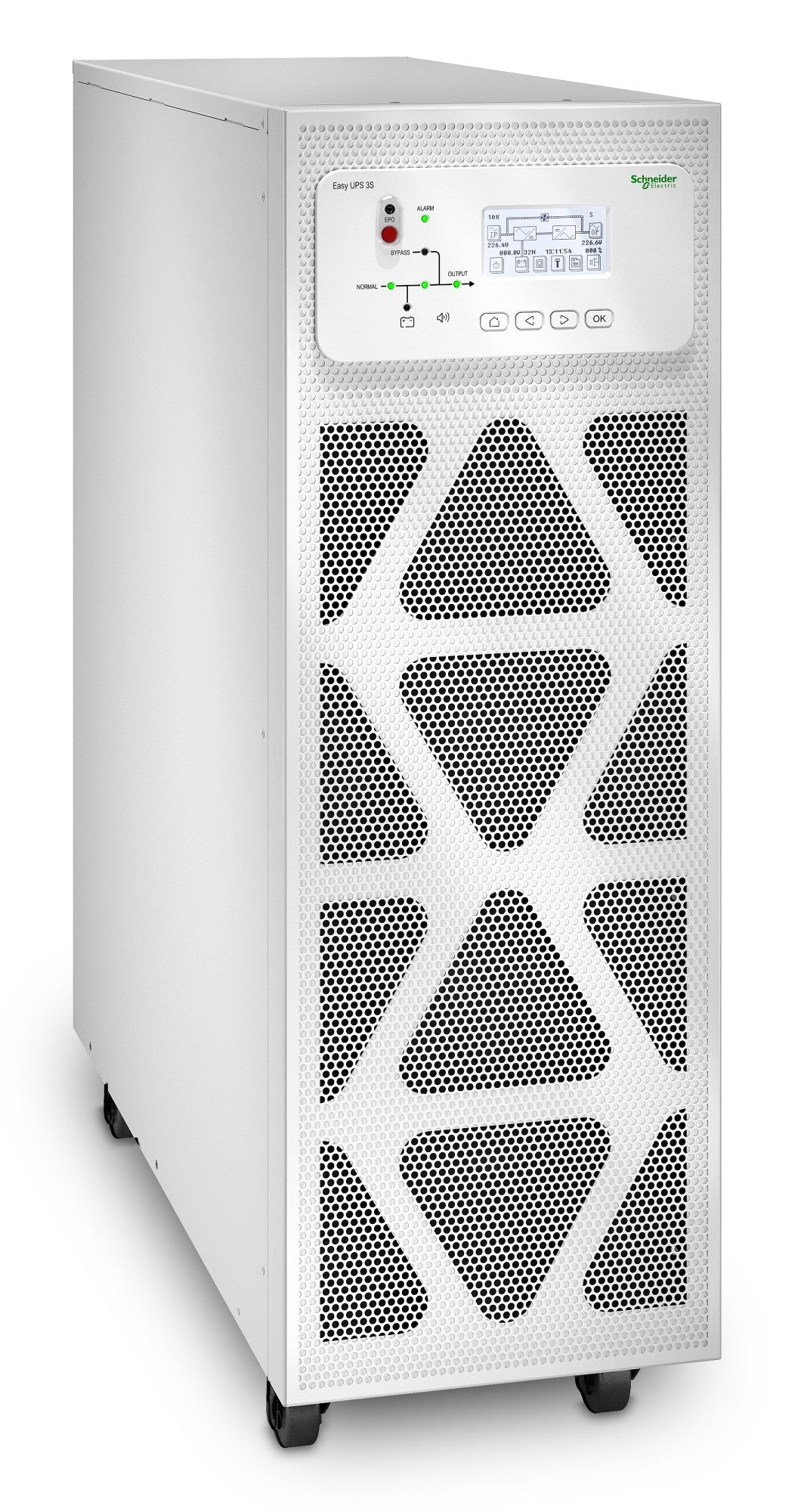

The APC Easy UPS 3S E3SUPS20KH is a 20kVA / 20kW three-phase double-conversion online UPS with a 400V 3:3 configuration, designed for protecting critical IT and industrial loads. It is supplied without internal batteries so an external battery solution can be sized to suit the required runtime, and it includes a built-in maintenance bypass for safer servicing.

Built for harsh environments, this tower UPS features a dust filter and conformal-coated boards, delivers a 0.99 input power factor at full load, and supports 380V, 400V and 415V operation with USB connectivity for monitoring.

Features

- Double-conversion online protection for critical loads
- Dust filter and conformal-coated boards for harsh environments
- Supplied without batteries so the battery solution can be customised
- Built-in maintenance bypass
- High input power factor of 0.99 at full load
- USB connectivity for monitoring
- Wide input voltage window of 304 to 477V

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Rated power: 20 kVA / 20 kW
- UPS type: Double conversion online
- Input: 400V 3-phase (also 380V, 415V)
- Output: 400V 3-phase (also 380V, 415V)
- Input voltage limits: 304 to 477V
- Input power factor at full load: 0.99
- Maximum input current: 37 A
- Output frequency: 50/60 Hz, sync to mains
- Output harmonic distortion: under 3% with linear load
- Overload: 10 minutes at 125%, 60 seconds at 150%
- Crest factor: 3:1
- Battery: External battery system, no internal batteries
- Bypass: Built-in maintenance bypass
- Maximum short-circuit current: 10 kA
- Form factor: Tower, 770 x 250 x 800 mm (H x W x D)
- Net weight: 58 kg
- Colour: White (RAL 9003)
- Connectivity: USB
- Operating temperature: 0 to 40 C, humidity 0 to 95% non-condensing
- Certifications: CE, EAC, RCM
- Included: Dust filter, installation guide

FAQs

Q: Does the E3SUPS20KH include batteries?
A: No. It has no internal batteries and is designed for an external battery system, so runtime can be sized to your requirements.

Q: What input and output voltages does it support?
A: It is a 400V 3-phase in, 400V 3-phase out (3:3) UPS, and also supports 380V and 415V.

Q: What is the rated capacity?
A: 20kVA / 20kW, with a load power factor range of 0.9 leading to 0.9 lagging.

Q: Does it have a maintenance bypass?
A: Yes. A built-in maintenance bypass is included to allow servicing without interrupting the load.

Q: Is it suitable for dusty or harsh environments?
A: Yes. It includes a dust filter and conformal-coated boards, and operates from 0 to 40 C at up to 95% non-condensing humidity.

Q: What overload can it handle?
A: It supports 125% load for 10 minutes and 150% load for 60 seconds.
