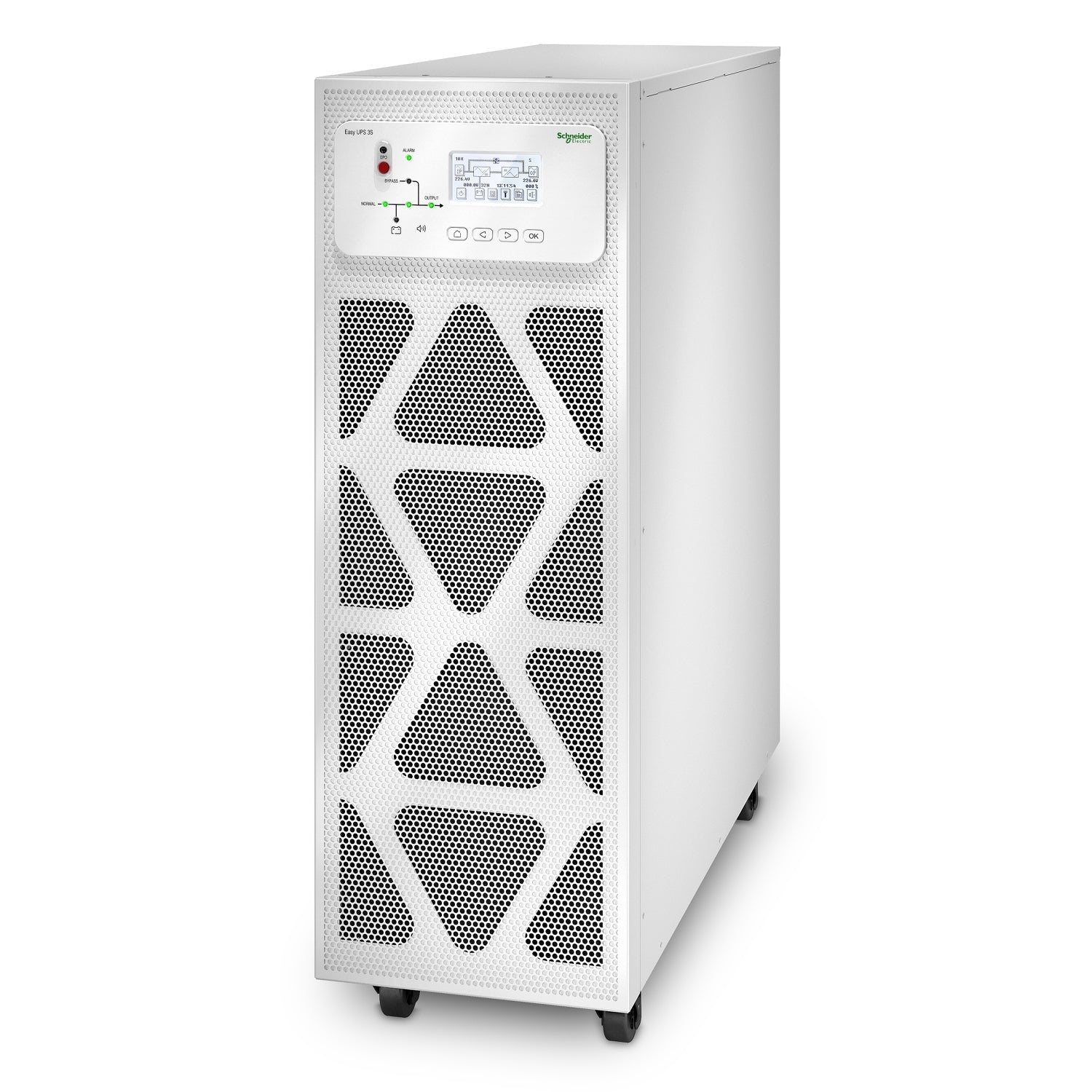

APC E3SUPS20K3I | Easy UPS 3S 20kVA Online UPS, 400V 3:1, External Batteries

Authorised APC Partner

SKU:E3SUPS20K3I

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

End of life

This product is end of life. Contact us for alternatives.

Description

The Easy UPS 3S 20kVA 400V 3:1 online UPS is a high-efficiency, double-conversion three-phase UPS rated 20 kVA / 20 kW, supplied without batteries so a battery solution can be matched to the runtime you need. With a 3-phase 400V input and a single-phase 230V output, it suits small and medium data centres and electrical rooms where clean, conditioned power is essential.

The unit is built for demanding sites, with a replaceable dust filter and conformally coated boards for harsh environments. It supports parallel operation for added capacity or redundancy, extended runtime through external battery cabinets, and an optional SNMP card for remote monitoring and management. It is EcoStruxure IT ready and designed for easy installation and start-up.

Features

- Double-conversion online topology for clean, continuously conditioned output power
- External battery design lets you size runtime to your requirements
- Parallel up to 4 UPS units for added capacity or redundancy
- Wide input voltage window preserves battery power for real outages
- Replaceable dust filters and conformally coated boards for harsh environments
- Easy to install and start up
- EcoStruxure IT ready for resilient, secure and sustainable IT environments
- Optional SNMP card for remote monitoring and management
- 3-phase input with single-phase output

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Rated power: 20 kVA / 20 kW
- UPS type: Double conversion online
- Input voltage: 400 V 3-phase (380 V and 415 V also supported)
- Input voltage limits: 304-477 V
- Input frequency: 45-65 Hz
- Maximum input current: 37 A
- Input power factor at full load: 0.99
- Output voltage: 230 V single-phase (220 V and 240 V also supported)
- Output frequency: 50 Hz or 60 Hz, synchronised to mains
- Output harmonic distortion: less than 3 %
- Crest factor: 3:1
- Overload capacity: 10 minutes at 125 %, 60 seconds at 150 %
- Battery: external battery system, no batteries included
- Maximum short-circuit current: 10 kA
- Parallel capable, up to 4 units
- USB compatible
- Dimensions (H x W x D): 770 x 250 x 800 mm
- Net weight: 58 kg
- Colour: White (RAL 9003)
- Included: dust filter, installation guide

FAQs

Q: Does the Easy UPS 3S 20kVA E3SUPS20K3I include batteries?
A: No. This model is supplied without batteries and has no internal battery slots. It requires an external battery system, which allows the runtime to be matched to your needs.

Q: What input and output configuration does it use?
A: It has a 3-phase 400V input (380 V and 415 V also supported) and a single-phase 230V output (220 V and 240 V also supported), so a 3-phase supply is required.

Q: Can I run multiple units in parallel?
A: Yes. The unit is parallel capable for increased capacity or redundancy, up to 4 UPS units.

Q: What is the rated power and topology?
A: It is a double-conversion online UPS rated 20 kVA / 20 kW, with an input power factor of 0.99 at full load.

Q: How does it handle overloads?
A: It supports 125 % overload for 10 minutes and 150 % overload for 60 seconds.

Q: Can I monitor it remotely?
A: The unit is USB compatible and EcoStruxure IT ready, and an optional SNMP card is available for remote monitoring and management.
